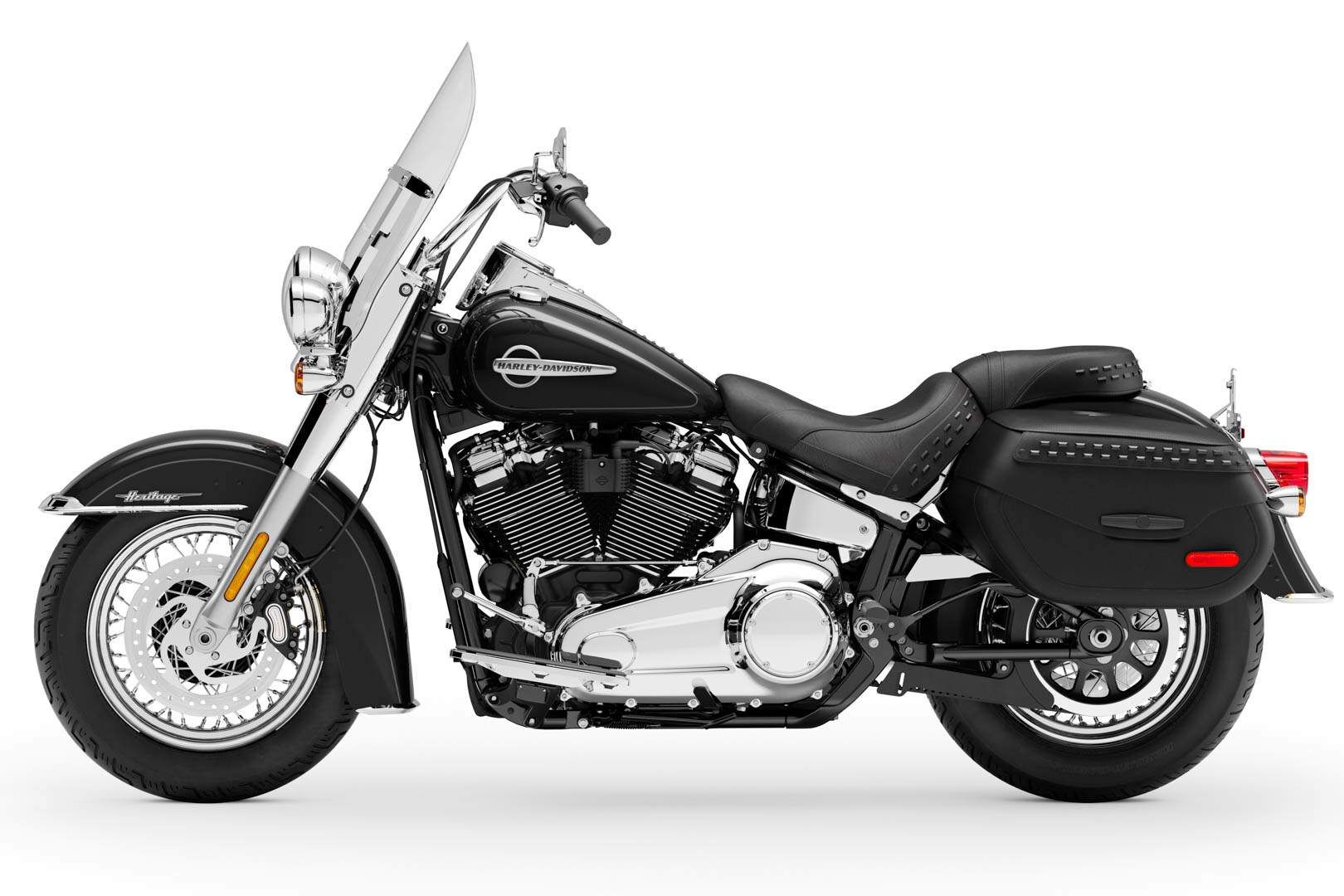

Harley-Davidson Harley Davidson Softail Heritage Classic (2020) technical specifications

Harley-Davidson Harley Davidson Softail Heritage Classic is produced in 2020. Engine is Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder, displacement 1746 cc / 107 cub in Harley-Davidson Harley Davidson Softail Heritage Classic weighs 316 kg / 696.6 lbs. Harley-Davidson Harley Davidson Softail Heritage Classic has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Harley Davidson Softail Heritage Classic
Years:	2020
Engine:	Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Capacity:	1746 cc / 107 cub in
Bore x Stroke:	100 x 111.1 mm
Cooling System:	Air cooled
Compression Ratio:	10.5:1
Exhaust:	2-into-2 shorty dual, catalyst in muffler
Induction:	Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication:	Pressurized, dry-sump with oil cooler
Ignition:	Single-fire, non-wasted, map-controlled spark ignition
Starting:	Electric
Max Torque:	145 Nm / 107 ft-lb @ 3000 rpm
Clutch:	Multi-plate, wet
Transmission:	6 Speed
Final Drive:	Belt
Primary Drive:	Chain, 34/46 ratio
Gear Ratio:	1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.79:1
Lean Angle, Left:	28.5º
Lean Angle, Right:	27.3º
Front Suspension:	Showa Inverted forks
Rear Suspension:	Mono Shock adjustable
Front Brakes:	2 x Disc, 4 piston caliper
Rear Brakes:	Single Disc, 2 piston floating caliper
Wheels:	Gloss Black, Steel Laced
Front Tyre:	130/90B16,53H,BW
Rear Tyre:	150/80B16,77H,BW
Rake:	30º
Trail:	145 mm / 5.7 in
Dimensions:	Length: 2415mm / 95 in
Wheelbase:	1630 mm / 64.2 in
Seat Height:	680 mm / 26.7 in
Ground Clearance:	120 mm / 4.7 in
Dry Weight:	316 kg / 696.6 lbs
Wet Weight:	330 kg / lbs
Oil Capacity:	4.7 Litres / 5.0 US qt
Fuel Capacity:	18.9 Litres / 5 US gal
