Harley-Davidson Harley Davidson Road King Special 114 (2019-20) technical specifications

Harley-Davidson Harley Davidson Road King Special 114 technical specifications

Harley-Davidson Harley Davidson Road King Special 114 is produced in 2019-20. Engine is Four stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder, displacement 1868 cc / 114 cu in Harley-Davidson Harley Davidson Road King Special 114 weighs 355 kg / 785.6 lbs. Harley-Davidson Harley Davidson Road King Special 114 has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: Harley Davidson Road King Special 114
Years: 2019-20

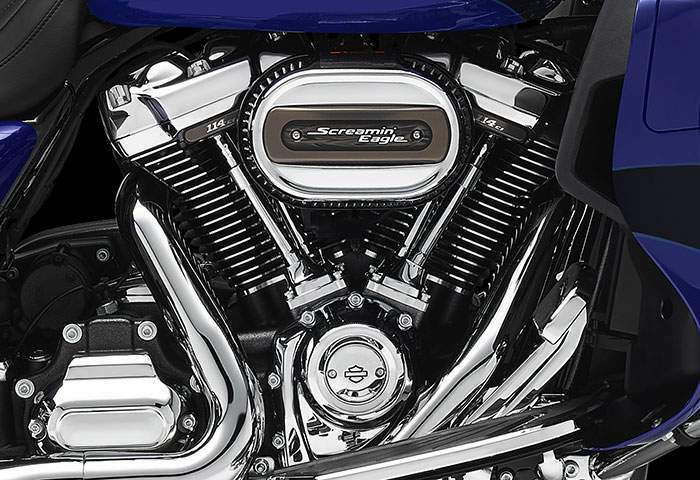

Engine: Four stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Capacity: 1868 cc / 114 cu in
Bore x Stroke: 102 x 114 mm
Cooling System: Air cooled
Compression Ratio: 10.5:1
Exhaust: Black, 2-1-2 dual exhaust with tapered mufflers
Induction: Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication: Pressurized, dry-sump with oil cooler
Ignition: Single-fire, non-wasted, map-controlled spark ignition
Starting: Electric
Max Torque: 167 Nm / 122 lb-ft @ 3250 rpm
Clutch: Hydraulically actuated 9 plate wet, Assist & Slip
Transmission: 6 Speed
Final Drive: Belt
Primary Drive: Chain, 34/46 ratio
Gear Ratio: 1st 9.593 2nd 6.65 3rd 4.938 4th 4 5th 3.407 6th 2.875
Lean Angle, Right: 32°
Lean Angle, Left: 32°
Frame: Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded
Front Suspension: 49 mm forks, Dual Bending Valve
Front Wheel Travel: 117 mm / 4.6 in
Rear Suspension: Premium low height hand-adjustable rear shocks
Rear Wheel Travel: 54.6 mm / 2.15 in
Front Brakes: 2 x 300 mm disc, caliper type 32 mm, 4-piston fixed, dual floating rotors
Rear Brakes: Single 300 mm, caliper type 32 mm, 4-piston, fixed rotor
ABS: Standard
Wheels: Black, Turbine Cast Aluminium
Front Wheel: Black, Turbine Cast Aluminum
Rear Wheel: Black, Turbine Cast Aluminum
Front Tyre: 130/60B19 61H
Rear Tyre: 180/55B18 80H
Rake: 26°
Trail: 170 mm / 6.9 in
Dimensions: Length 2420 mm / 95.3 in
Wheelbase: 1625 mm / 64 in
Seat Height: Laden 7 668 mm / 26.4 in Unladen 695 mm / 27.4 in
Ground Clearance: 135 mm / 5.3 in
Dry Weight: 355 kg / 785.6 lbs
Wet Weight: 372 kg / 820 lbs
Oil Capacity: 4.9 Litres / 5.2 US qts
Fuel Capacity: 22.7 Litres / 6.0 US gal
