Harley-Davidson Harley Davidson Road King (2021) technical specifications
Harley-Davidson Harley Davidson Road King is produced in 2021. Engine is Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder, displacement 1746 cc / 107 cub in. Harley-Davidson Harley Davidson Road King weighs 362 kg / 798 lbs. Harley-Davidson Harley Davidson Road King has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Harley Davidson Road King |
| Years: | 2021 |

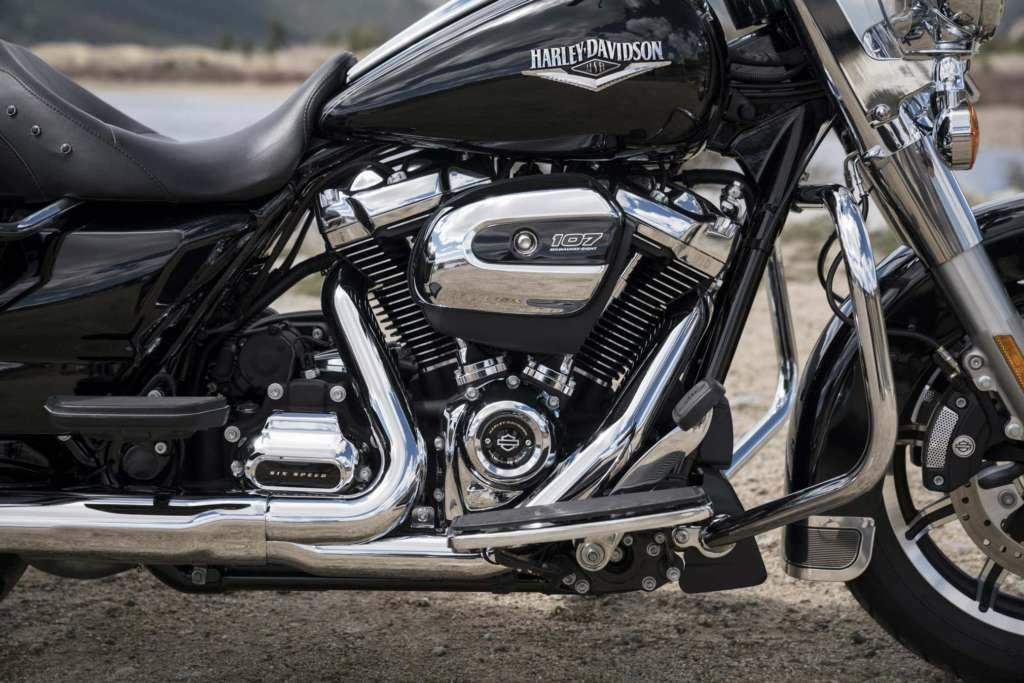

| Engine: | Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder |
| Capacity: | 1746 cc / 107 cub in. |
| Bore x Stroke: | 100 x 111 mm / 3.937 x 4.374 in |
| Cooling System: | Air cooled |
| Compression Ratio: | 10.0:1 |
| Exhaust: | Chrome, 2-1-2 dual exhaust with tapered mufflers |
| Induction: | Electronic Sequential Port Fuel Injection (ESPFI) |
| Lubrication: | Pressurized, dry-sump with oil cooler |
| Ignition: | Single-fire, non-wasted, map-controlled spark ignition |
| Starting: | Electric |
| Max Torque: | 151 Nm / 111.4 ft/lb @ 3250 rpm |
| Clutch: | Hydraulically actuated 9 plate wet, Assist & Slip |
| Transmission: | 6 Speed |
| Final Drive: | Belt |
| Primary Drive: | Chain, 34/46 ratio |
| Gear Ratio: | 1st 9.593 2nd 6.65 3rd 4.938 4th 4 5th 3.407 6th 2.875 |
| Lean Angle, Right: | 32° |
| Lean Angle, Left: | 32° |
| Frame: | Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded |
| Front Suspension: | 49 mm forks, Dual Bending Valve |
| Front Wheel Travel: | 117 mm / 4.6 in |
| Rear Suspension: | Premium low height hand-adjustable rear shocks |
| Rear Wheel Travel: | 54.6 mm / 2.15 in |
| Front Brakes: | 2 x 300 mm disc, caliper type 32 mm, 4-piston fixed, dual floating rotors |
| Rear Brakes: | Single 300 mm, caliper type 32 mm, 4-piston, fixed rotor |
| ABS: | Standard |
| Wheels: | Black, Turbine Cast Aluminium |
| Front Wheel: | 9 Impeller Cast Aluminum |
| Rear Wheel: | Impeller Cast Aluminum |
| Front Tyre: | BW 130/80B17 65H |
| Rear Tyre: | BW 180/65B16 81H |
| Rake: | 26° |
| Trail: | 170 mm / 6.7 in |
| Dimensions: | Length 2450 mm / 96.5 in |
| Wheelbase: | 1625 mm / 64 in |
| Seat Height: | Laden 7 668 mm / 26.3 in. Unladen 706 mm / 27.8 in. |
| Ground Clearance: | 135 mm / 5.3 in |
| Dry Weight: | 362 kg / 798 lbs |
| Wet Weight: | 379 kg / 836 lbs |
| Oil Capacity: | 4.9 Litres / 5.2 US qts |
| Fuel Capacity: | 22.7 Litres / 6.0 US gal |
