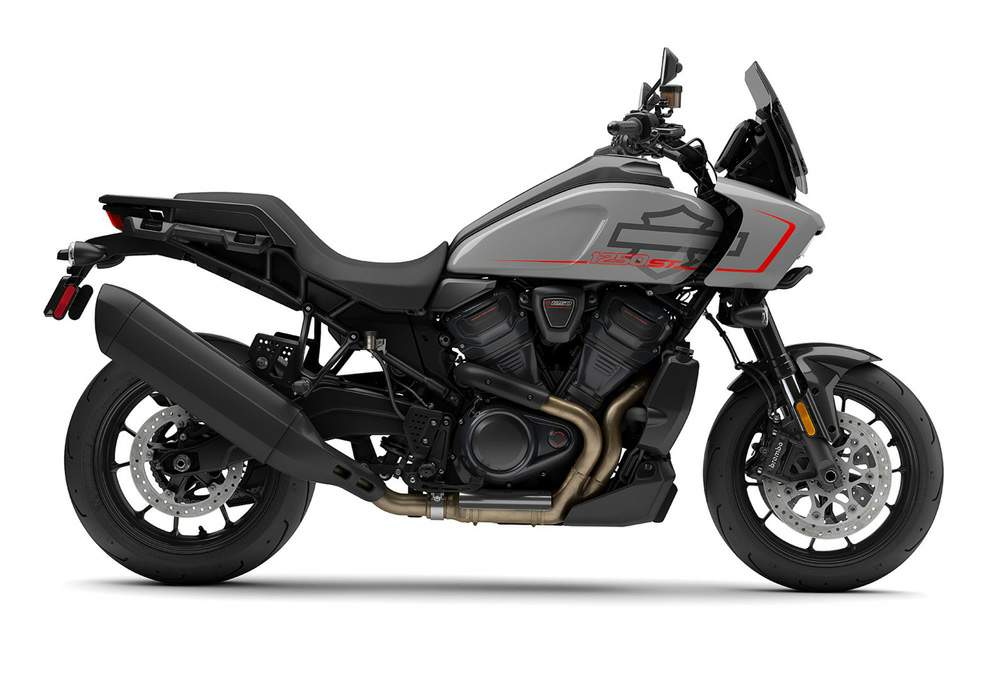

Harley-Davidson Harley Davidson Pan America 1250 CVO (2025) technical specifications

Harley-Davidson Harley Davidson Pan America 1250 CVO is produced in 2025. Engine is Four stroke, 60? V-twin Revolution Max 1250, Chain-driven, DOHC, hydraulic self-adjusting lifters, intake & exhaust VVT, four valves per cylinder, displacement 1252 cc / 76.3 cu-in , produces power 149 hp / 111 kW @ 8750 rpm and 124 Nm / 91 lb-ft @ 6750 rpm. Harley-Davidson Harley Davidson Pan America 1250 CVO weighs 230 kg / 507 lbs. Harley-Davidson Harley Davidson Pan America 1250 CVO has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Harley Davidson Pan America 1250 CVO
Years:	2025

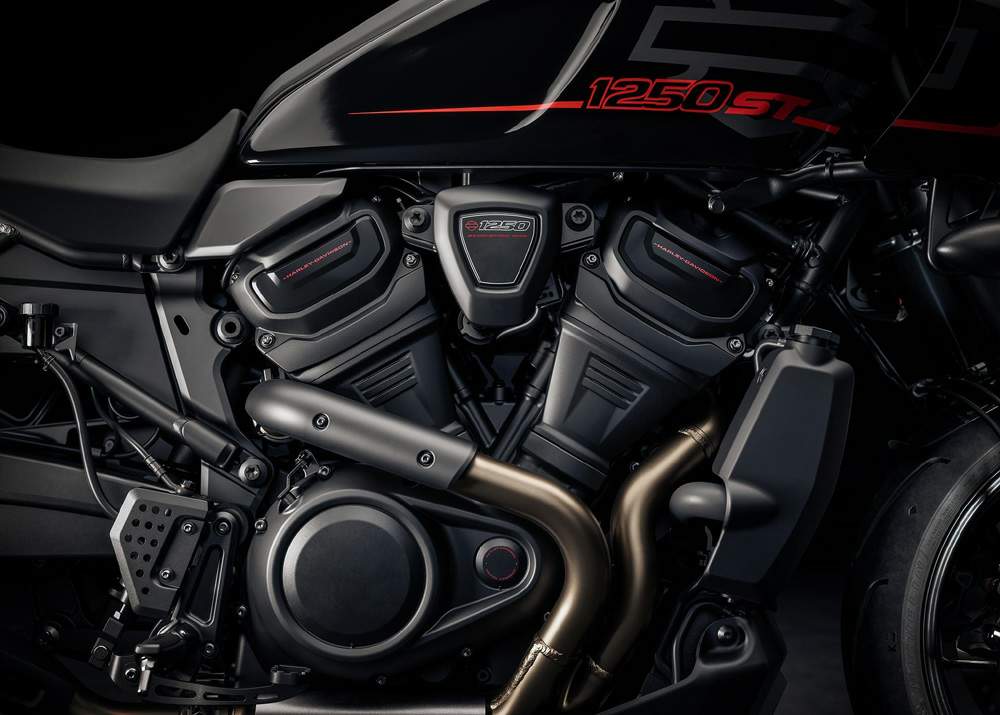

Engine:	Four stroke, 60? V-twin Revolution Max 1250, Chain-driven, DOHC, hydraulic self-adjusting lifters, intake & exhaust VVT, four valves per cylinder
Capacity:	1252 cc / 76.3 cu-in
Bore x Stroke:	105 x 72.3 mm
Compression Ratio:	13.0:1
Cooling System:	Liquid cooled
Exhaust:	2-into-1-into-1, catalyst in header
Lubrication:	Semi-dry sump
Induction:	Electronic Sequential Port Fuel Injection (ESPFI)
Starting:	Electric
Max Power:	149 hp / 111 kW @ 8750 rpm
Max Torque:	124 Nm / 91 lb-ft @ 6750 rpm
Clutch:	Mechanical, 8 plate wet, assist & slip, 1090N
Transmission:	6 Speed
Final Drive Ratio:	Chain, 19/48
Primary Drive Ratio:	Gear, 49/89
Gear Ratios:	1st 13.11 / 2nd 9.687 / 3rd 7.509 / 4th 6.057 / 5th 5.08 / 6th 4.436
Frame:	Stressed-member, high strength low alloy steel trellis frame; stamped, cast, and forged junctions; MIG welded; aluminium forged mid-structure
Swingarm:	One-piece cast aluminum
Front Suspension:	47mm inverted fork with electronically adjustable preload and manually adjustable compression and rebound. Aluminium fork triple clamps
Front Wheel Travel:	170 mm / 6.7 in
Rear Suspension:	Linkage-mounted monoshock with automatic electronic preload control and manually adjustable compression & rebound damping
Rear Wheel Travel:	170 mm / 6.7 in
Front Brakes:	2 x 320mm discs, radially mounted, monoblock, 4-piston caliper
Rear Brakes:	Single 280mm disc, floating, single piston caliper
ABS System:	Standard
Wheels:	Aluminum cast, satin black
Front Rim:	3.5 x 17
Rear Rim:	5.50 x 17
Front Tyre:	120/70ZR17 73W, Michelin Scorcher Sport
Rear Tyre:	180/55R17 73W, Michelin Scorcher Sport
Rake:	25?
Trail:	95 mm / 3.7 in
Lean Angle (left & right):	37?
Dimensions:	Length: 2240 mm / 88.2 in Width: 895 mm / 35.3 in Height: 1330 mm / 52.4 in
Wheelbase:	1570 mm / 61.8 in
Seat Height Laden:	746 mm / 29.4 in
Seat Height Unladen:	805 mm / 31.7 in
Ground Clearance:	170 mm / 6.7 in
Dry Weight:	230 kg / 507 lbs
Wet Weight:	246 kg / 542 lbs
Fuel Capacity:	21.2 Litres / 5.6 US gal
