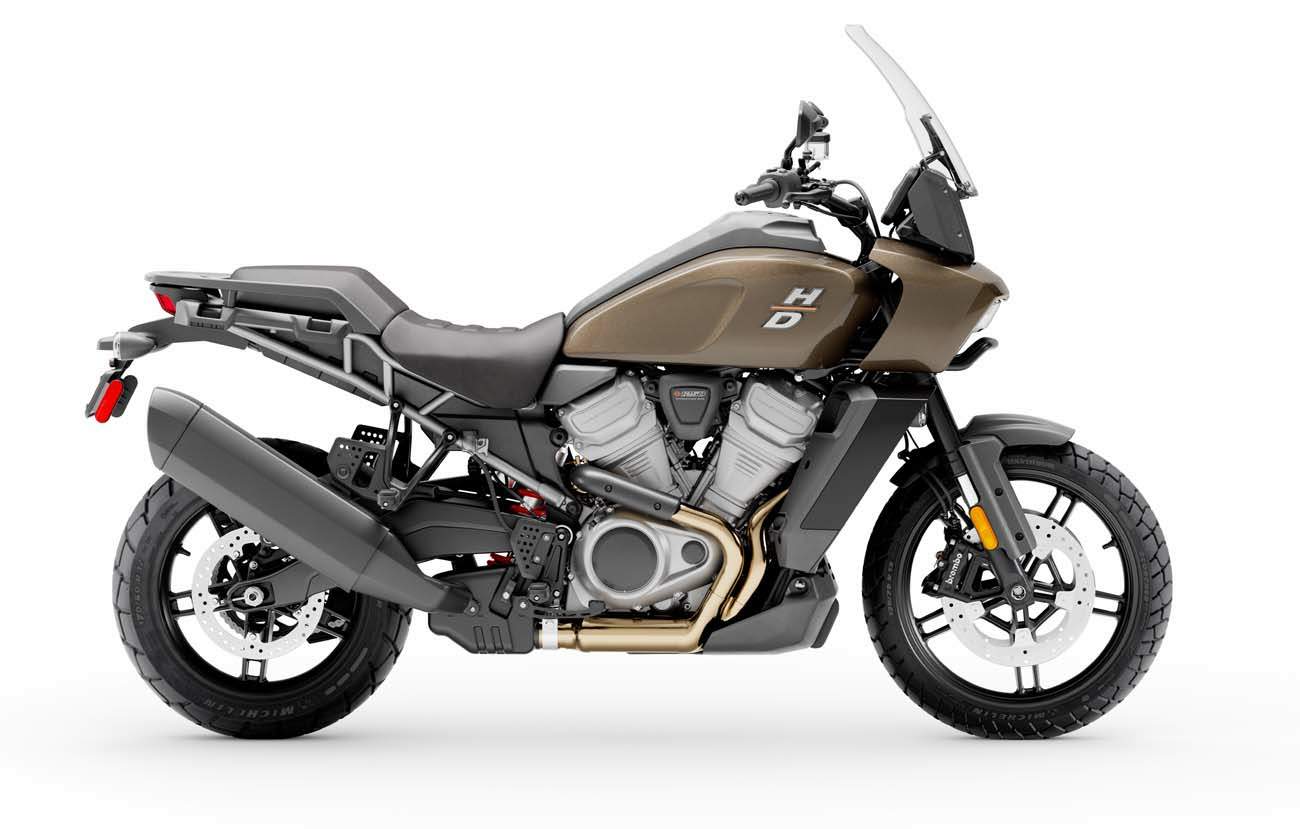

Harley-Davidson Harley Davidson Pan America 1250 (2021) technical specifications

Harley-Davidson Harley Davidson Pan America 1250 is produced in 2021. Engine is Four stroke, 60° V-twin Revolution Max 1250, Chain-driven, DOHC, hydraulic self-adjusting lifters, intake & exhaust VVT, four valves per cylinder, displacement 1252 cc / 76.3 cu-in , produces power 150 hp / 112 kW @ 9000 rpm and 127 Nm / 94 lb-ft @ 6750 rpm. Harley-Davidson Harley Davidson Pan America 1250 weighs 228 kg / 503 lbs. Harley-Davidson Harley Davidson Pan America 1250 has 7 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Harley Davidson Pan America 1250
Years:	2021
Engine:	Four stroke, 60° V-twin Revolution Max 1250, Chain-driven, DOHC, hydraulic self-adjusting lifters, intake & exhaust VVT, four valves per cylinder
Capacity:	1252 cc / 76.3 cu-in
Bore x Stroke:	105 x 72 mm
Compression Ratio:	13.0:1
Cooling System:	Liquid cooled
Exhaust:	2-into-1-into-1, catalyst in header
Lubrication:	Pressurized Wet Sump
Induction:	Electronic Sequential Port Fuel Injection (ESPFI)
Starting:	Electric
Max Power:	150 hp / 112 kW @ 9000 rpm
Max Torque:	127 Nm / 94 lb-ft @ 6750 rpm
Clutch:	Mechanical, 8 plate wet, assist & slip, 1090N
Transmission:	6 Speed
Final Drive:	Chain, 19/48 ratio
Primary Drive:	Gear, 49/89 ratio
Gear Ratios:	1st 13.11 / 2nd 9.687 / 3rd 7.509 / 4th 6.057 / 5th 5.08 / 6th 4.436
Frame:	Stressed-member, high strength low alloy steel trellis frame, stamped, cast, and forged junctions, MIG welded; aluminum forged mid-structure
Swingarm:	One-piece cast aluminum
Front Suspension:	47mm inverted fork with compression, rebound and spring preload adjustability. Aluminum fork triple clamps.
Front Wheel Travel:	191 mm / 7.5 in
Rear Suspension:	Linkage-mounted, piggyback monoshock with compression, rebound and hydraulic spring preload adjustability
Rear Wheel Travel:	191 mm / 7.5 in
Front Brakes:	2x 320mm discs, radially mounted, monoblock, 4-piston caliper
Rear Brakes:	Single 280mm disc, floating, single piston caliper
ABS System:	Standard
Wheels:	Aluminum cast, satin black
Front Rim:	3.0 x 19
Rear Rim:	4.50 x 17
Front Tyre:	120/70R19 60V
Rear Tyre:	170/60R17 72V
Rake:	25°
Trail:	157 mm / 6.2 in
Dimensions:	Length: 2265 mm / 89.2 in Width: 965 mm / 38 in Height: 1510 mm / 59.4 in
Wheelbase:	1580 mm / 62.2 in
Seat Height Laden:	807 mm / 31.8 in
Seat Height Unladen:	869 mm / 34.2 in
Ground Clearance:	210 mm / 8.3 in
Dry Weight:	228 kg / 503 lbs
Wet Weight:	242 kg / 534 lbs
Fuel Capacity:	21.2 Litres / 5.6 US gal
