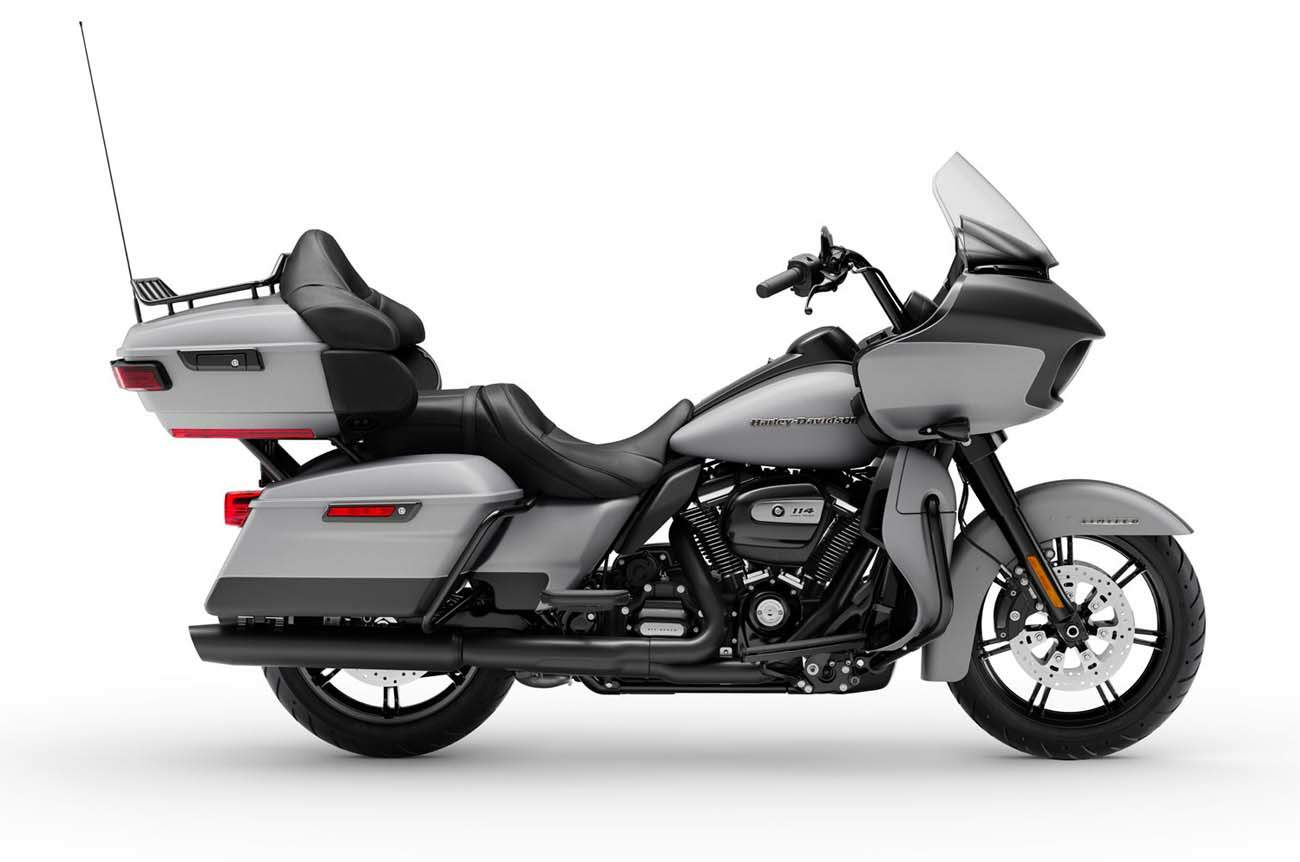

Harley-Davidson Harley Davidson Limited (2020-21) technical specifications

Harley-Davidson Harley Davidson Limited technical specifications

Harley-Davidson Harley Davidson Limited is produced in 2020-21. Engine is Four stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder, displacement 1868 cc / 114 cu in Harley-Davidson Harley Davidson Limited weighs 407 kg / 897 lbs. Harley-Davidson Harley Davidson Limited has 6 photos.

Technical specifications

+ Add to 'Compare list'
Model: Harley Davidson Limited
Years: 2020-21
Engine: Four stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Capacity: 1868 cc / 114 cu in
Bore x Stroke: 102 x 114 mm
Cooling System: Air cooled
Compression Ratio: 10.5:1
Exhaust: Chrome dual exhaust with 4 in. touring mufflers and touring muffler shields
Induction: Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication: Pressurized, dry-sump with oil cooler
Ignition: Single-fire, non-wasted, map-controlled spark ignition
Starting: Electric
Max Torque: 167 Nm / 122 lb-ft @ 3250 rpm
Clutch: Hydraulically actuated, 9 plate wet, with high performance spring
Transmission: 6 Speed Cruise Drive®
Final Drive: Belt, 32/68 ratio
Gear Ratio: 1st 9.593 2nd 6.65 3rd 4.938 4th 4 5th 3.407 6th 2.875
Primary Drive: Chain, 34/46 ratio
Frame: Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded
Lean Angle, Left: 31.9º
Lean Angle, Right: 31.8º
Front Suspension: 41.3 mm telescopic, triple circuit damping
Rear Suspension: Low air-adjustable low profile air ride rear suspension
Front Brakes: 2x 300mm discs 4 piston calipers
Rear Brakes: Single 300mm discs 4 piston caliper
Wheels: Optional Style Type Gloss Black Slicer II
Front Wheel: Slicer II cast aluminum with clear coat
Rear Wheel: Slicer II cast aluminum with clear coat
Front Tyre: BW 130/70B18 63H
Rear Tyre: BW 180/55B18 80H
Rake: 26°
Trail: 170 mm / 6.6 in
Dimensions: Length 2595 mm / 102.2 in
Wheelbase: 1625 mm / 64 in
Seat Height: 735 mm / 28.9 in
Ground Clearance: 130 mm / 5.1 in
Dry Weight: 407 kg / 897 lbs
Wet Weight: 423 kg / 932.5 lbs
Oil Capacity: 4.9 Litres / 5.2 US qts
Fuel Capacity: 22.7 Litres / 6.0 US gal
Luggage Capacity Volume: 0.132 m3
