Harley-Davidson Harley Davidson FXSTSB Bad Boy (1995-96) technical specifications

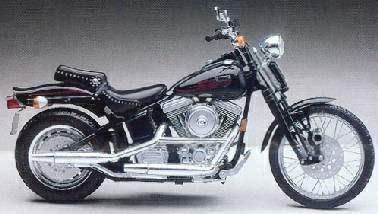

Harley-Davidson Harley Davidson FXSTSB Bad Boy is produced in 1995-96. Engine is Four stroke, 45° V-Twin, OHV, 2 valves per cylinder., displacement 1337 cc / 81.5 cu-in , produces power 58 hp / 42.3 kW @ 5000 rpm and 90.8 Nm / 67 lb.-ft. @ 3600 rpm. Harley-Davidson Harley Davidson FXSTSB Bad Boy weighs 281 kg / 320 lbs. Harley-Davidson Harley Davidson FXSTSB Bad Boy has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Harley Davidson FXSTSB Bad Boy |
| Years: | 1995-96 |
| Engine: | Four stroke, 45° V-Twin, OHV, 2 valves per cylinder. |
| Capacity: | 1337 cc / 81.5 cu-in |
| Bore x Stroke: | 88.8 x 108.0 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 8.5:1 |
| Induction: | 40mm Keihin CV carburetor |
| Ignition: | Single-fire, non-wasted, map-controlled spark ignition |
| Starting: | Electric |
| Max Power: | 58 hp / 42.3 kW @ 5000 rpm |
| Max Torque: | 90.8 Nm / 67 lb.-ft. @ 3600 rpm |
| Transmission: | 5 Speed |
| Final Drive: | Belt |
| Front Suspension: | 39mm stanchions |
| Front Wheel Travel: | 175 mm / 6.9 in |
| Rear Suspension: | Dual dampers, able for preload |
| : | 120 mm / 4.7 in |
| Front Brakes: | 2x 292mm discs 1 piston caliper |
| Rear Brakes: | Single 292mm disc |
| Front Tyre: | 100/90-19 |
| Rear Tyre: | 130/90 HB16 |
| Seat Height: | 637 mm / 25.0 in |
| Dry Weight: | 281 kg / 320 lbs |
| Fuel Capacity: | 15.9 Litres / 4.2 US gal |
