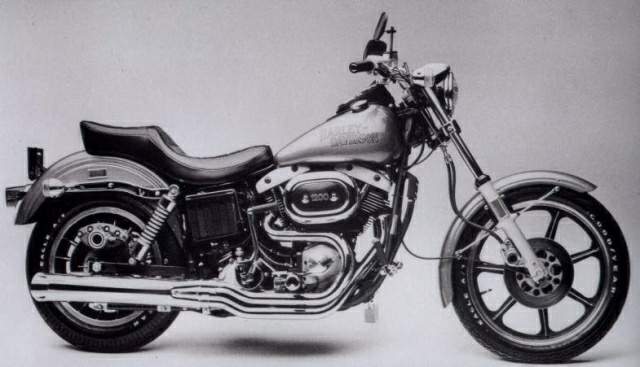

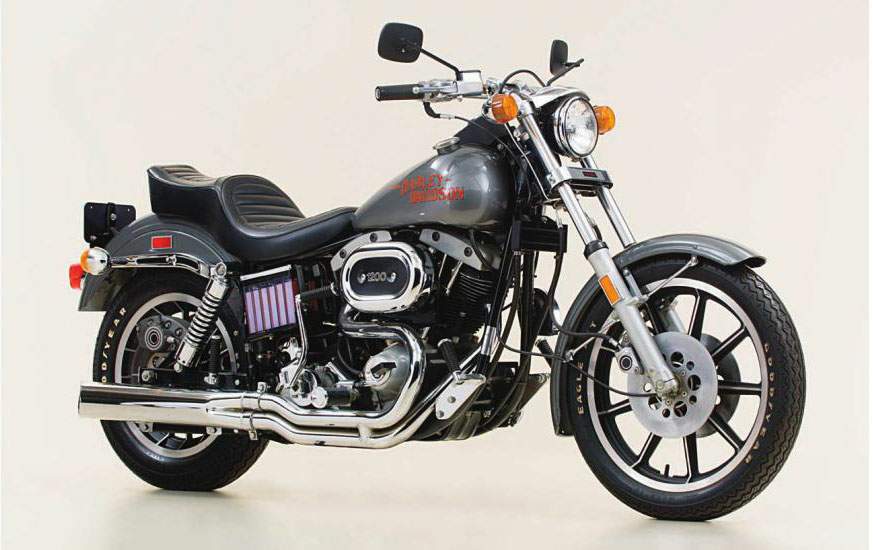

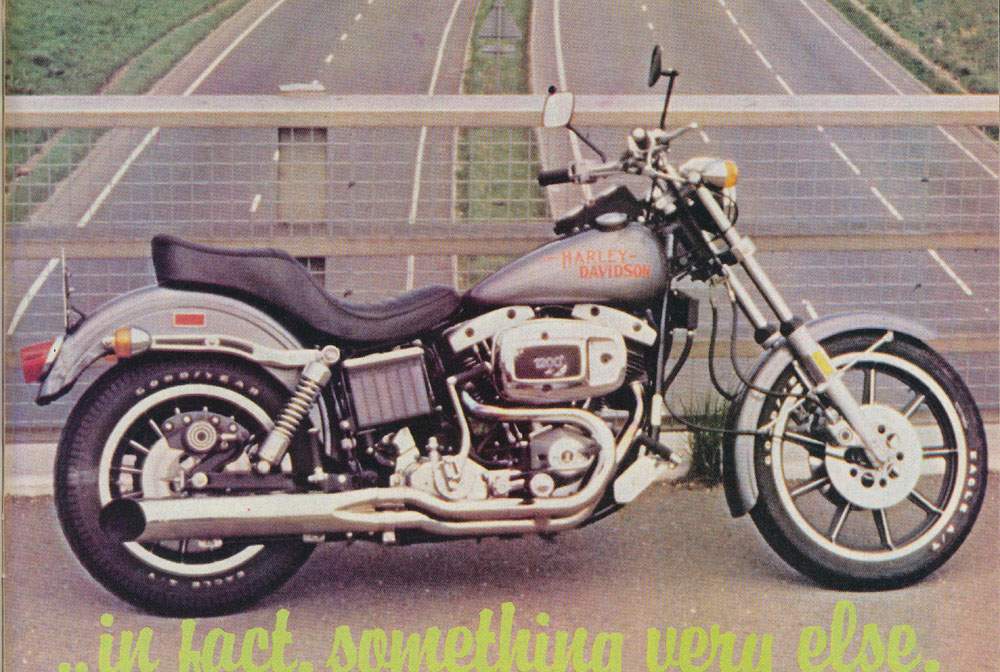

Harley-Davidson Harley Davidson FXS 1200 Low Rider (1977-79) technical specifications
Harley-Davidson Harley Davidson FXS 1200 Low Rider is produced in 1977-79. Engine is Four stroke, 45° V-Twin, OHV, 2 valves per cylinder., displacement 1207 cc / 73.5 cu-in , produces power 58 hp / 42.3 kW @ 5150 rpm and . Harley-Davidson Harley Davidson FXS 1200 Low Rider top speed is Cycle 1979. Harley-Davidson Harley Davidson FXS 1200 Low Rider wet weight is 280.0 kg / 617.3 lbs. Harley-Davidson Harley Davidson FXS 1200 Low Rider has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Harley Davidson FXS 1200 Low Rider |
| Years: | 1977-79 |
| Engine: | Four stroke, 45° V-Twin, OHV, 2 valves per cylinder. |
| Capacity: | 1207 cc / 73.5 cu-in |
| Bore x Stroke: | 87.3 x 100.8 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 8.0:1 |
| Induction: | Single 38mm Keihin carburetor |
| Ignition: | Coil battery |
| Starting: | Electric |
| Max Power: | 58 hp / 42.3 kW @ 5150 rpm |
| Max Torque: | |
| Transmission: | 4 Speed |
| Final Drive: | Chain |
| Front Suspension: | Telescopic forks |
| Rear Suspension: | Swinging arm |
| Front Brakes: | 2x 250mm disc |
| Rear Brakes: | Single 250mm disc |
| Front Tyre: | 3.25-19 |
| Rear Tyre: | 5.10-16 |
| Wet Weight: | 280.0 kg / 617.3 lbs |
| Fuel Capacity: | 15 Litres / 4.1 US gal |
| Consumption Average: | 47 mpg |
| Braking 60 - 0 / 100 - 0: | - / 49.3 m |
| Standing ¼ Mile: | 15.0 sec / 85.8 mph |
| Top Speed: | Cycle 1979 |
