Technical specifications
|
| Model: |

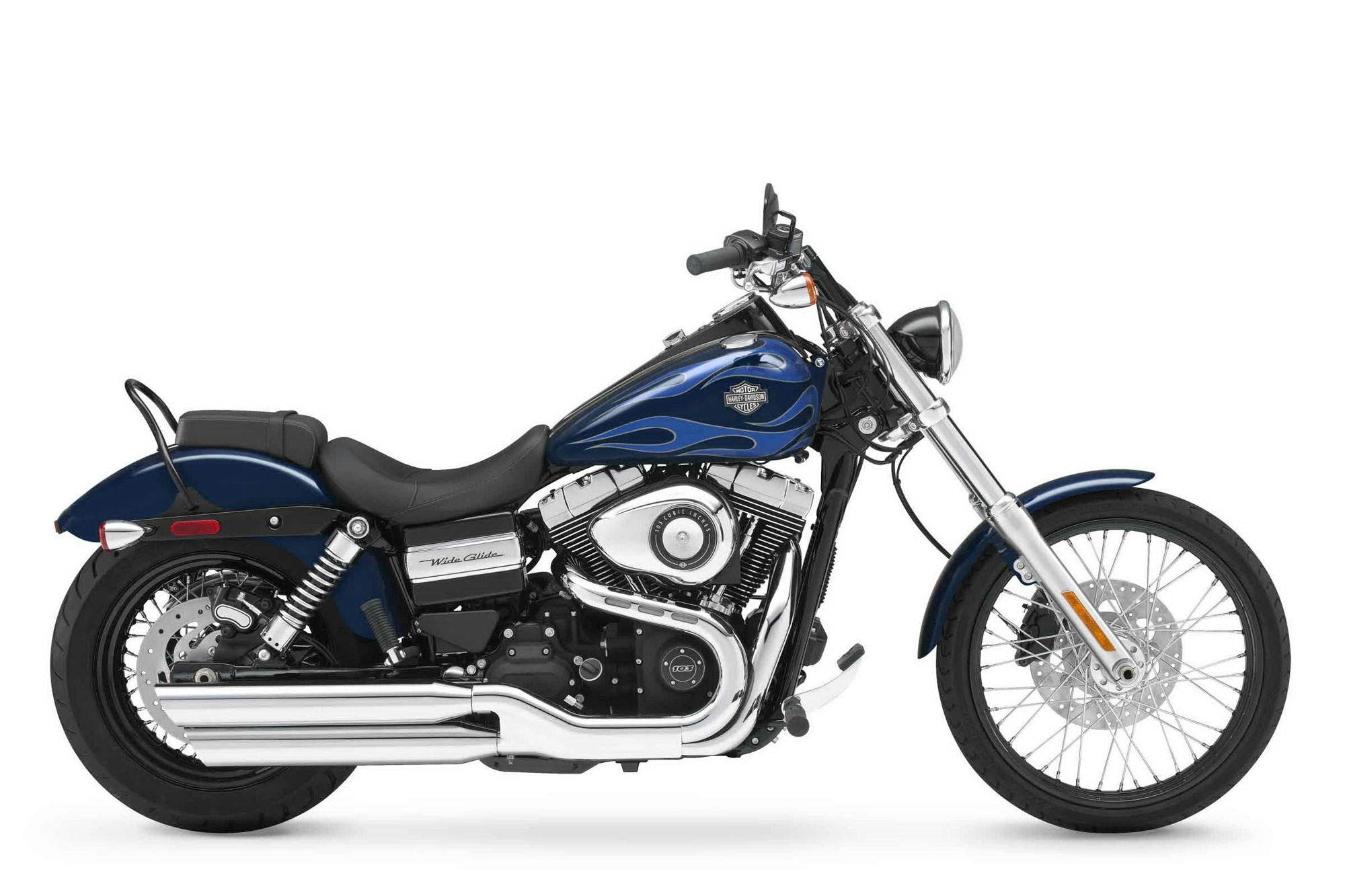

Harley Davidson FXDWG Dyna Wide Glide |
| Years: |
2012 |
|
Engine:
|
Four stroke, 45° V-Twin, Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
|
|
Capacity:
|
1584 cc / 96 cu-in
|
|
Bore x Stroke:
|
95.3 x 111.1 mm
|
|
Cooling System:
|
Air cooled
|
|
Compression Ratio:
|
9.2:1
|
|
Induction:
|
Electronic Sequential Port Fuel Injection (ESPFI)
|
|
Ignition:
|
Single-fire, non-wasted, map-controlled spark ignition
|
|
Starting:
|
Electric
|
|
Max Torque:
|
124.7 Nm / 92 ft/ lbs. @ 3000 rpm
|
|
Clutch:
|
Multi-plate, wet
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Belt
|
|
Primary Drive:
|
Chain, 34/46 ratio
|
|
Gear Ratio:
|
1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.790
|
|
Frame:
|
Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
|
|
Front Suspension:
|
49 mm with polished aluminum fork triple clamp and dual-rate springs,
|
|
Rear Suspension:
|
Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded, Coil over shock ,
|
|
Front Brakes:
|
Single 300mm disc 4 piston caliper
|
|
Rear Brakes:
|
Single 292mm disc 4 piston caliper
|
|
Front Tyre:
|
80/90-21
|
|
Rear Tyre:
|
180/60B17
|
|
Rake:
|
34°
|
|
Trail:
|
132 mm / 5.2 in.
|
|
Dimensions:
|
Length 2387.6 mm / 94.0 in Width 944.8 mm / 37.2 in Height 1214.1 mm / 47.8 in
|
|
Wheelbase:
|
1715 mm / 67.5 in
|
|
Seat Height:
|
Laden 648 mm / 25.5 in. Unladen .678 mm / 26.7 in
|
|
Gross Vehicle Weight Rating:
|
492.2 kg / 1085 lbs
|
|
Dry Weight:
|
293 kg / 647 lbs
|
|
Wet Weight:
|
310 kg / 683.4 lbs
|
|
Fuel Capacity:
|
17.8 Litres / 4.7 US gal
|
