Harley-Davidson Harley Davidson FLTRX Road Glide Special (2015-16) technical specifications

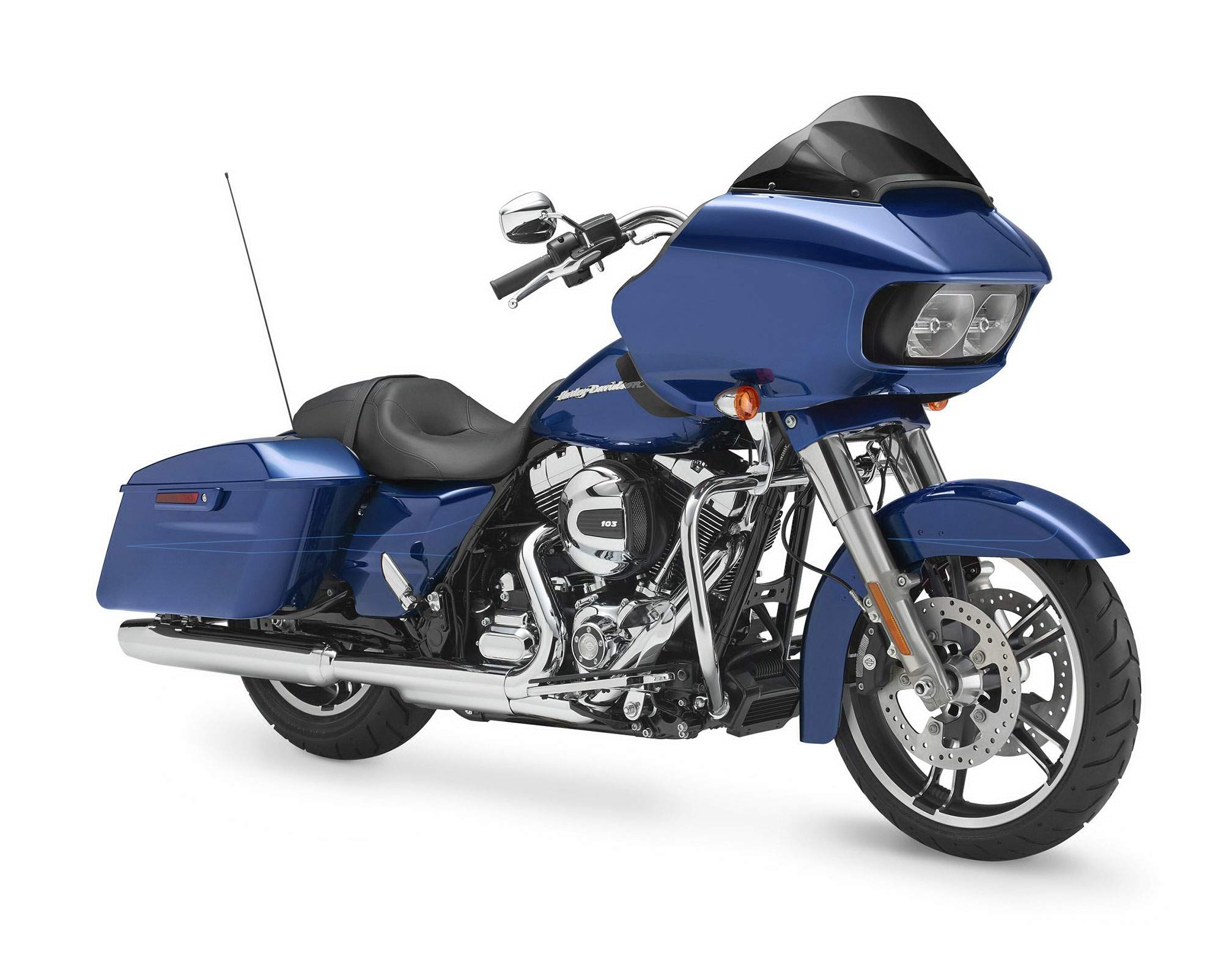

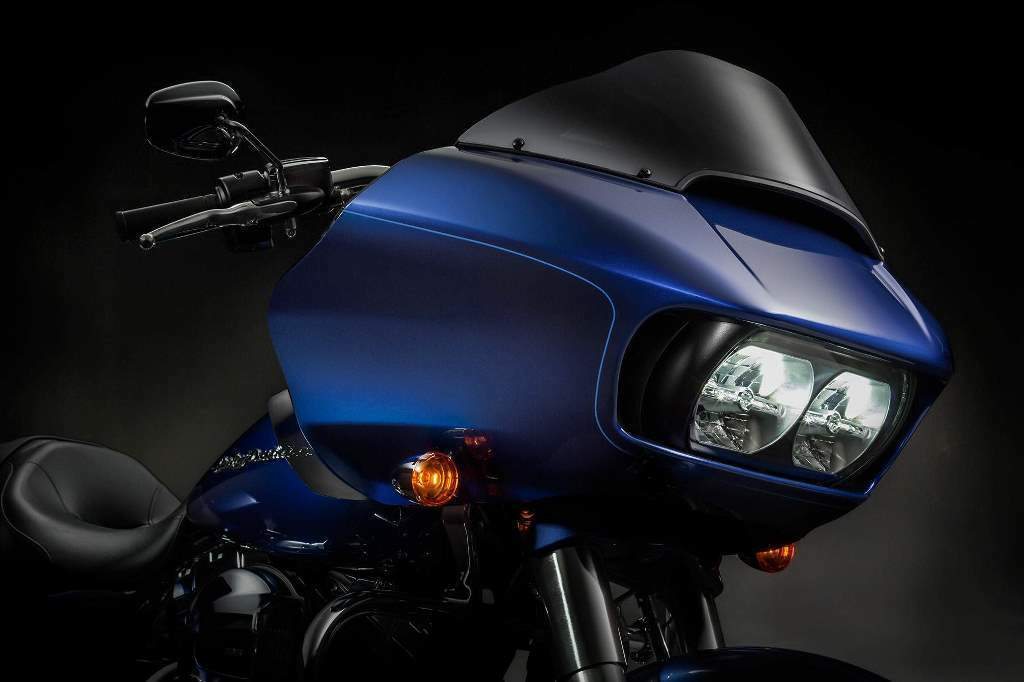

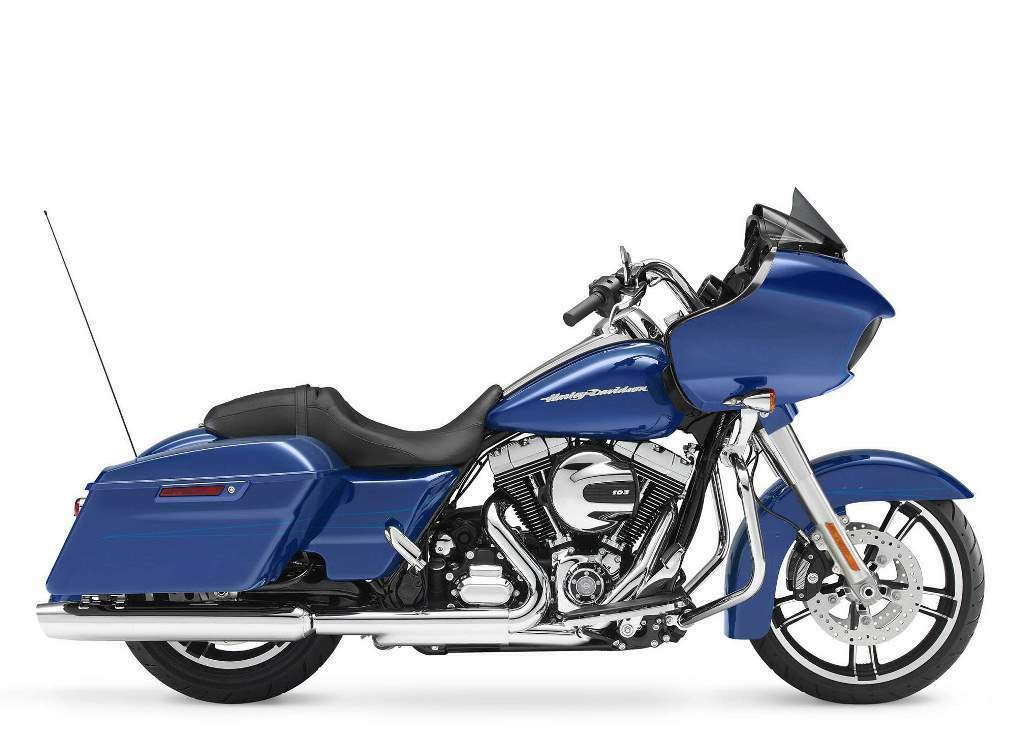

Harley-Davidson Harley Davidson FLTRX Road Glide Special is produced in 2015-16. Engine is Four stroke, V-Twin, Twin Cam 103™ with integrated oil cooler, displacement 1690 cc / 103 cu. in. Harley-Davidson Harley Davidson FLTRX Road Glide Special weighs 369 kg / 813 lbs. Harley-Davidson Harley Davidson FLTRX Road Glide Special has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Harley Davidson FLTRX Road Glide Special |
| Years: | 2015-16 |
| Engine: | Four stroke, V-Twin, Twin Cam 103™ with integrated oil cooler |
| Capacity: | 1690 cc / 103 cu. in. |
| Bore x Stroke: | 98.4 x 111.1 mm / 3.875 in. x 4.374 in |
| Cooling System: | Air cooled |
| Exhaust: | Chrome, 2-1-2 dual exhaust with tapered mufflers |
| Compression Ratio: | 9.7:1 |
| Lubrication: | Pressurized, dry-sump with oil cooler |
| Oil Capacity: | 3.8 Litres / 4.0 US qts |
| Induction: | Electronic Sequential Port Fuel Injection (ESPFI) |
| Starting: | Electric |
| Max Toque: | 138 Nm / 14.1 kgf-m / 101.8 ft. lbs / @ 3500 rpm |
| Clutch: | Hydraulically actuated, 9 plate wet, with high performance spring |
| Transmission: | 6 Speed Cruise Drive® |
| Final Drive: | Belt, 32/68 ratio |
| Gear Ratio: | 1st 9.593 / 2nd 6.65 / 3rd 4.938 / 4th 4.000 / 5th 3.407 / 6th 2.875 |
| Primary Drive: | Chain, 34/46 ratio |
| Frame: | Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded |
| Lean Angle, Left: | 31º |
| Lean Angle, Right: | 32º |
| Front Suspension: | 41.3 mm telescopic, triple circuit damping |
| Rear Suspension: | Low air-adjustable low profile air ride rear suspension |
| Front Brakes: | 2x 300mm discs 4 piston calipers |
| Rear Brakes: | Single 300mm discs 4 piston caliper |
| Front Wheel: | Enforcer Cast Aluminum 19 in. x 3.5 in. |
| Rear Wheel: | Enforcer Cast Aluminum 16 in. x 5 in. |
| Front Tyre: | 130/60B19 61H |
| Rear Tyre: | BW 180/65B16 81H |
| Rake: | 26° |
| Trail: | 173 mm / 6.8 in |
| Dimensions: | Length 2430 cc / 95.7 in |
| Wheelbase: | 1625 mm / 64 in |
| Seat Height: | Unladen 696 mm / 27.4 in |
| Ground Clearance: | 135 mm / 5.3 in |
| Gross Axle Weight Rating: | 617 kg / 1360 lbs |
| Dry Weight: | 369 kg / 813 lbs |
| Wet Weight: | 385 kg / 849 lbs |
| Fuel Capacity: | 22.7 Litres / 6 US gal |
