Harley-Davidson Harley Davidson FLTRX Road Glide Custom (2013) technical specifications

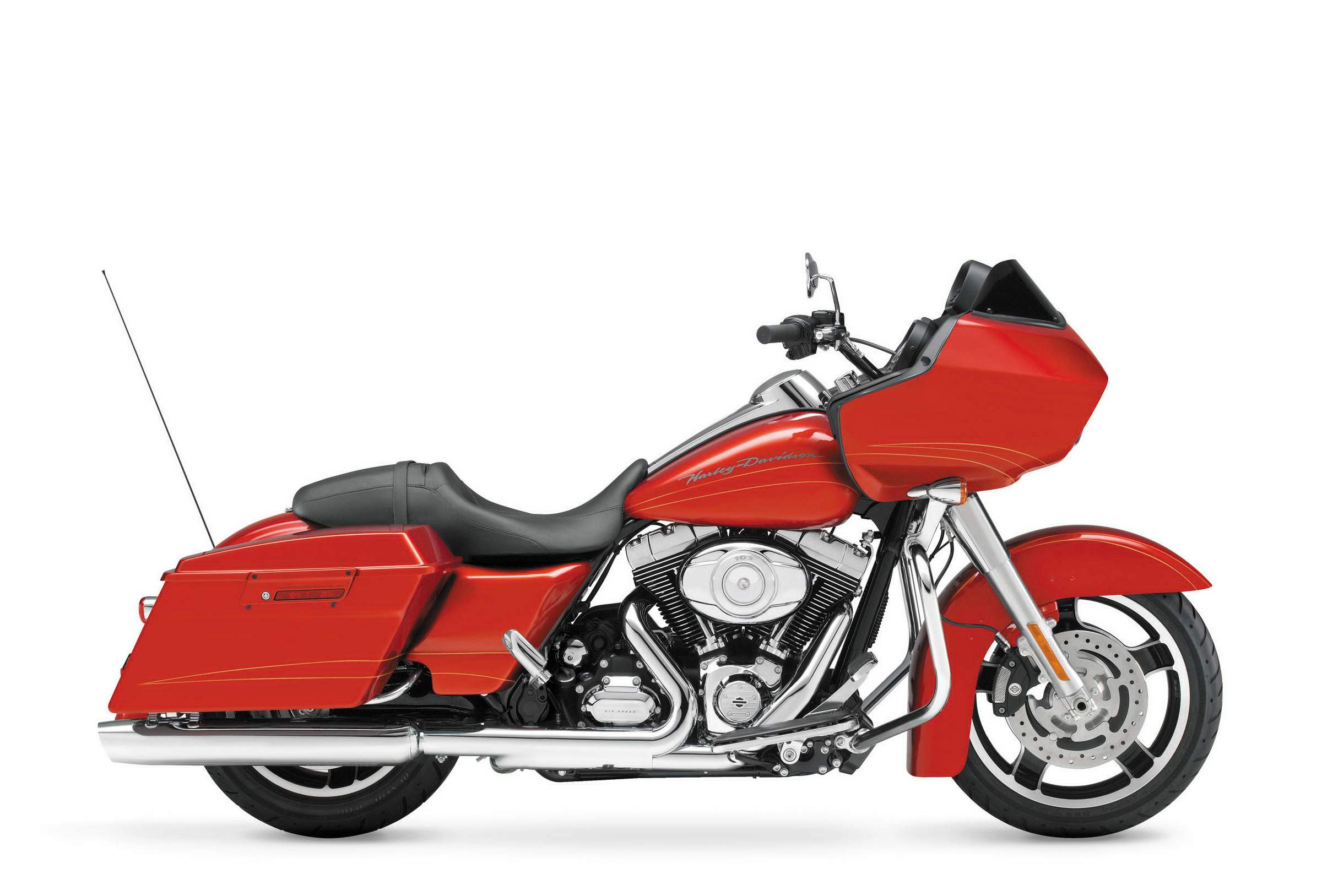

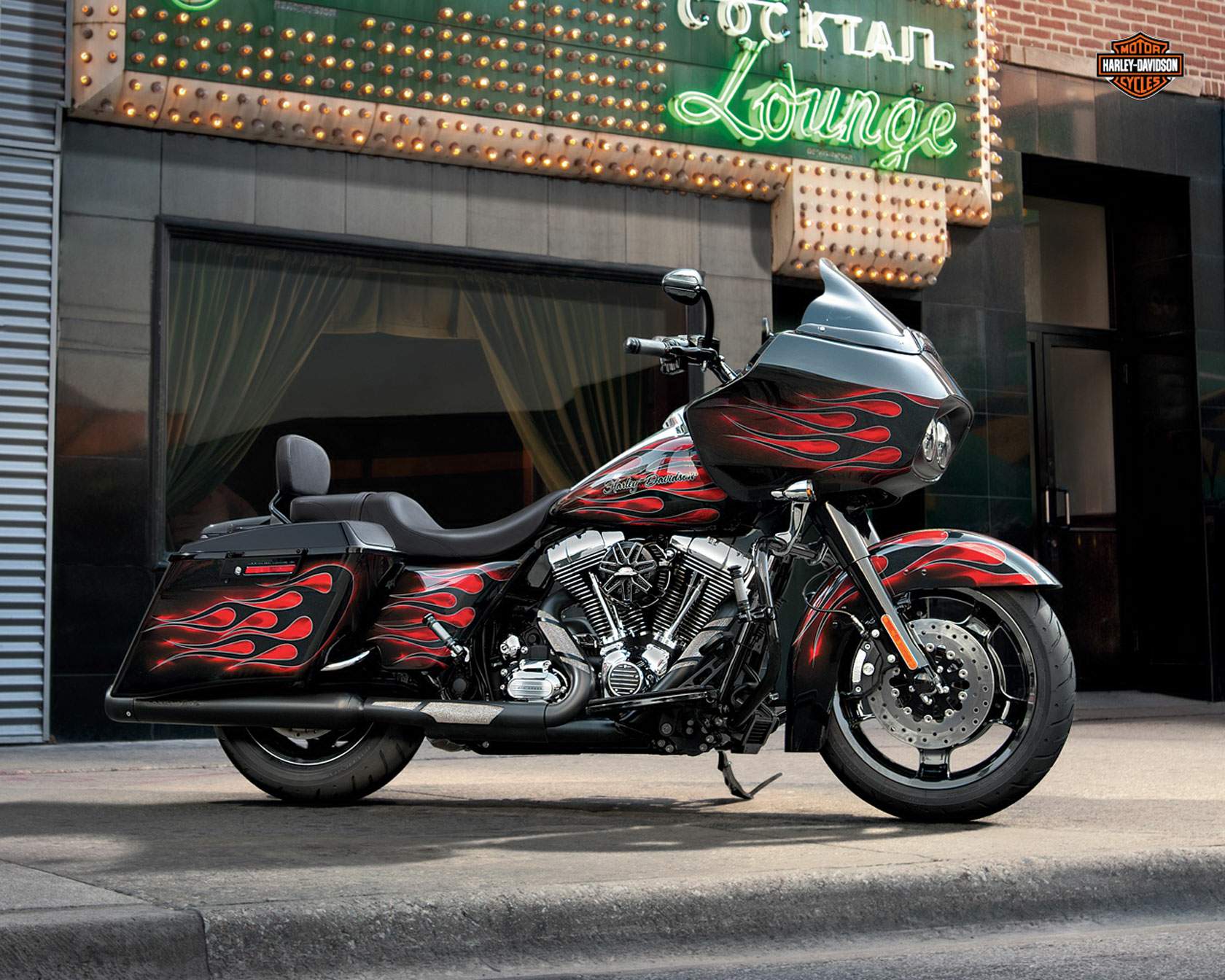

Harley-Davidson Harley Davidson FLTRX Road Glide Custom is produced in 2013. Engine is Four stroke, V-Twin, Twin Cam 103™ Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder, with Integrated Oil-Cooler, displacement 1690 cc / 103.1 cu-in Harley-Davidson Harley Davidson FLTRX Road Glide Custom wet weight is 370 kg / 817 lbs. Harley-Davidson Harley Davidson FLTRX Road Glide Custom has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Harley Davidson FLTRX Road Glide Custom |
| Years: | 2013 |
| Engine: | Four stroke, V-Twin, Twin Cam 103™ Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder, with Integrated Oil-Cooler |
| Capacity: | 1690 cc / 103.1 cu-in |
| Bore x Stroke: | 98.4 x 111.1 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.6:1 |
| Exhaust:: | Chrome, 2-1-2 dual exhaust with tapered mufflers |
| Induction: | Electronic Sequential Port Fuel Injection (ESPFI) |
| Ignition: | Single-fire, non-wasted, map-controlled spark ignition |
| Starting: | Electric |
| Max Torque: | 135 Nm / 100 ft/lb @ 3250 rpm |
| Transmission: | 6 Speed |
| Final Drive: | Belt |
| Gear Ratio: | 1st 9.593 / 2nd 6.650 / 3rd 4.938 / 4th 4.000 / 5th 3.407 / 6th 2.875 |
| Frame: | Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded |
| Front Suspension: | 41.3 mm telescopic, triple circuit damping |
| Rear Suspension: | Air-adjustable, Swingarm Mild steel; two-piece drawn and welded section; forged juctions; MIG welded |
| Front Brakes: | 2x 300mm discs 4 piston calipers |
| Rear Brakes: | Single 300mm discs 4 piston caliper |
| Front Tyre: | D408F BW 130/70B18 63H |
| Rear Tyre: | D407 BW 180/65B16 81H |
| Dimensions: | Length 2413 mm / 95.0 in. Width. 909 mm / 35.8 in Height 1270 mm / 50.0 in. |
| Wheelbase: | 1613 mm / 63.5 in. |
| Seat Height: | Laden 663 mm / 26.1 in Unladen 688 mm / 27.1 in |
| Gross Axle Weight Rating:: | 616.8 kg / 1360 lbs |
| Wet Weight: | 370 kg / 817 lbs |
| Oil Capacity: | 3.8 Litres / 4.0 qts |
| Fuel Capacity: | 22.7 Litres / 6 US gal |
