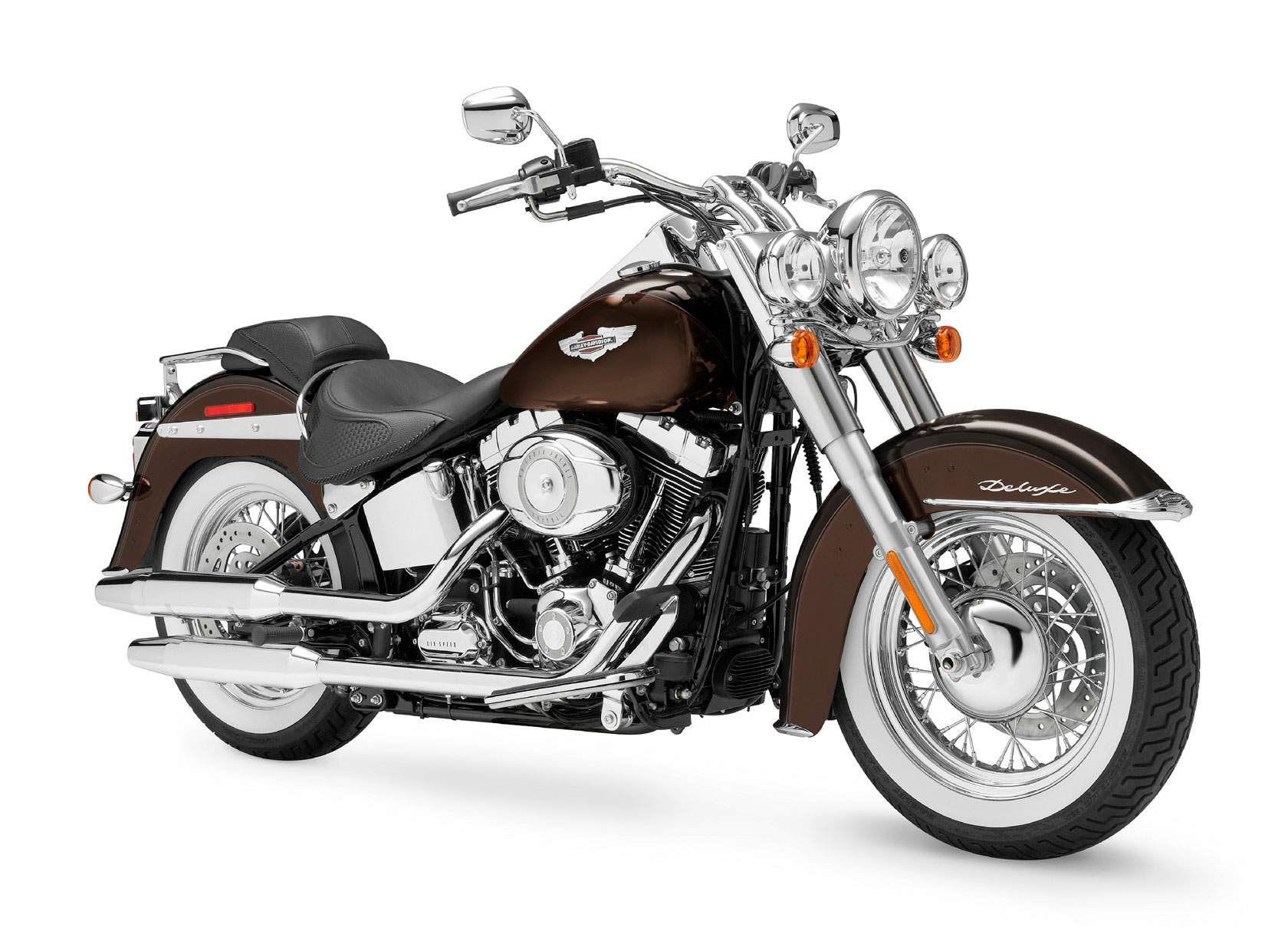

Harley-Davidson Harley Davidson FLSTN Softail Deluxe (2011) technical specifications
Harley-Davidson Harley Davidson FLSTN Softail Deluxe is produced in 2011. Engine is Four stroke, 45° V-Twin, Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder, displacement 1584 cc / 96 cu-in Harley-Davidson Harley Davidson FLSTN Softail Deluxe weighs 315 kg / 693 lbs.. Harley-Davidson Harley Davidson FLSTN Softail Deluxe has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Harley Davidson FLSTN Softail Deluxe |
| Years: | 2011 |
| Engine: | Four stroke, 45° V-Twin, Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder |
| Capacity: | 1584 cc / 96 cu-in |
| Bore x Stroke: | 95.2 x 111.2 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.2:1 |
| Induction: | Electronic Sequential Port Fuel Injection (ESPFI) |
| Ignition: | Single-fire, non-wasted, map-controlled spark ignition |
| Starring: | Electric |
| Max Torque: | 124.7 Nm / 92 ft. lbs @ 3000 rpm |
| Transmission: | 6 Speed |
| Final Drive: | Belt |
| Gear Ratio: | 1st 9.311 2nd 6.454 3rd 4.793 4th 3.882 5th 3.307 6th 2.79 |
| Frame: | Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded |
| Front Suspension: | 41.3 mm telescopic, chrome dust covers |
| Rear Suspension: | Hidden, horizontal-mounted, coil-over shock |
| Front Brakes: | Single 292mm disc 4 piston caliper |
| Rear Brakes: | Single 292mm disc 4 piston caliper |
| Front Tyre: | D402F MT90-16 |
| Rear Tyre: | D402 MU85B16 |
| Rake: | 32° |
| Fork Angle: | 32° |
| Trail: | 147.3 mm / 5.8 in |
| Dimensions: | Length 2405.4 mm / 94.7 in |
| Wheelbase: | 1638 mm / 64.5 in |
| Seat Height: | Laden2 622 mm / 24.5 in. Unladen 673 mm / 26.5 in. |
| Gross Vehicle Weight Rating: | 526.0 kg / 1160 lb |
| Ground Clearance: | 122 mm / 4.8 in |
| Dry Weight: | 315 kg / 693 lbs. |
| Wet Weight: | 329.0 kg / 726 lb |
| Fuel Capacity: | 18.9 Litres / 5.0 gal |
