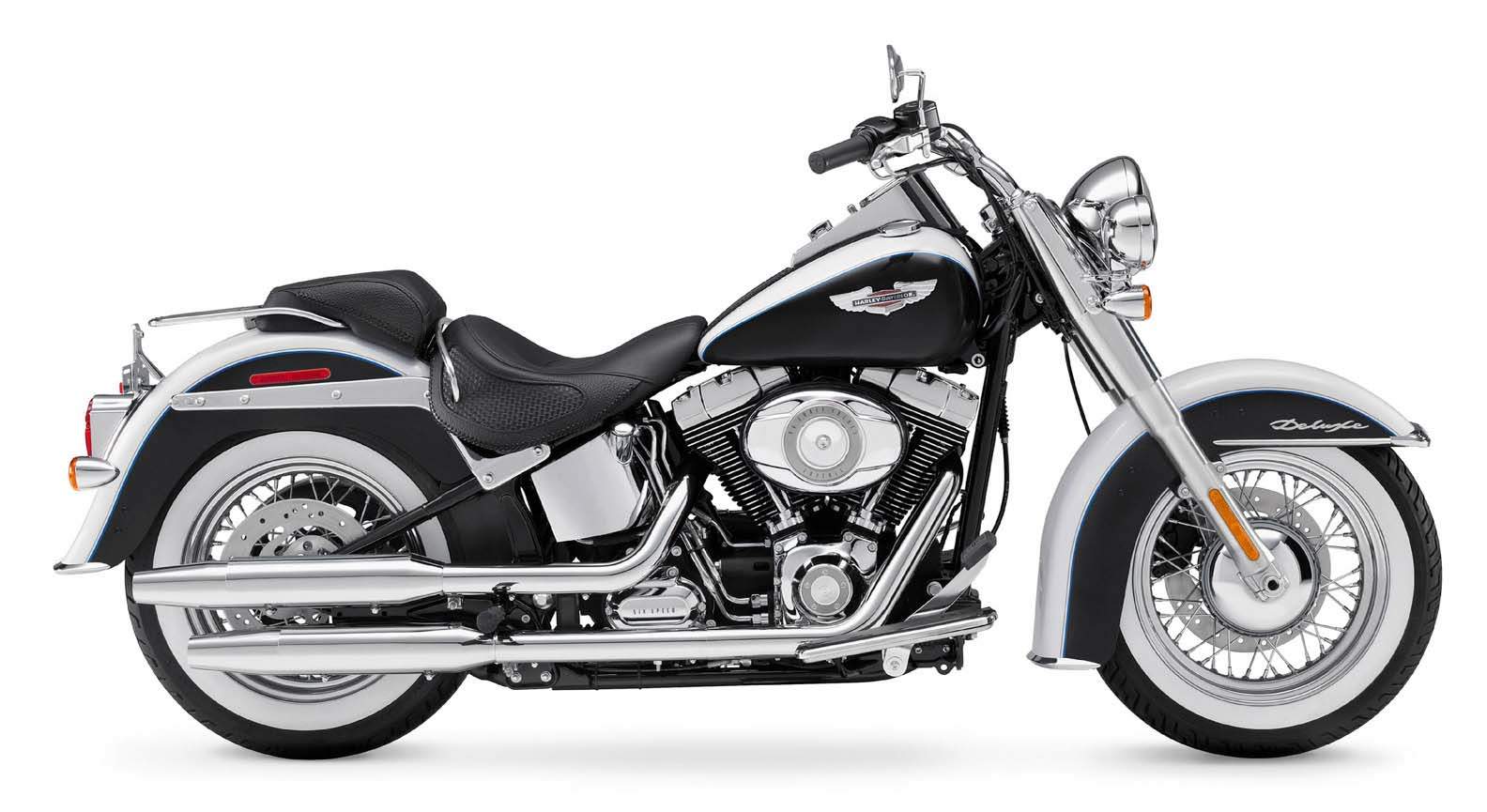

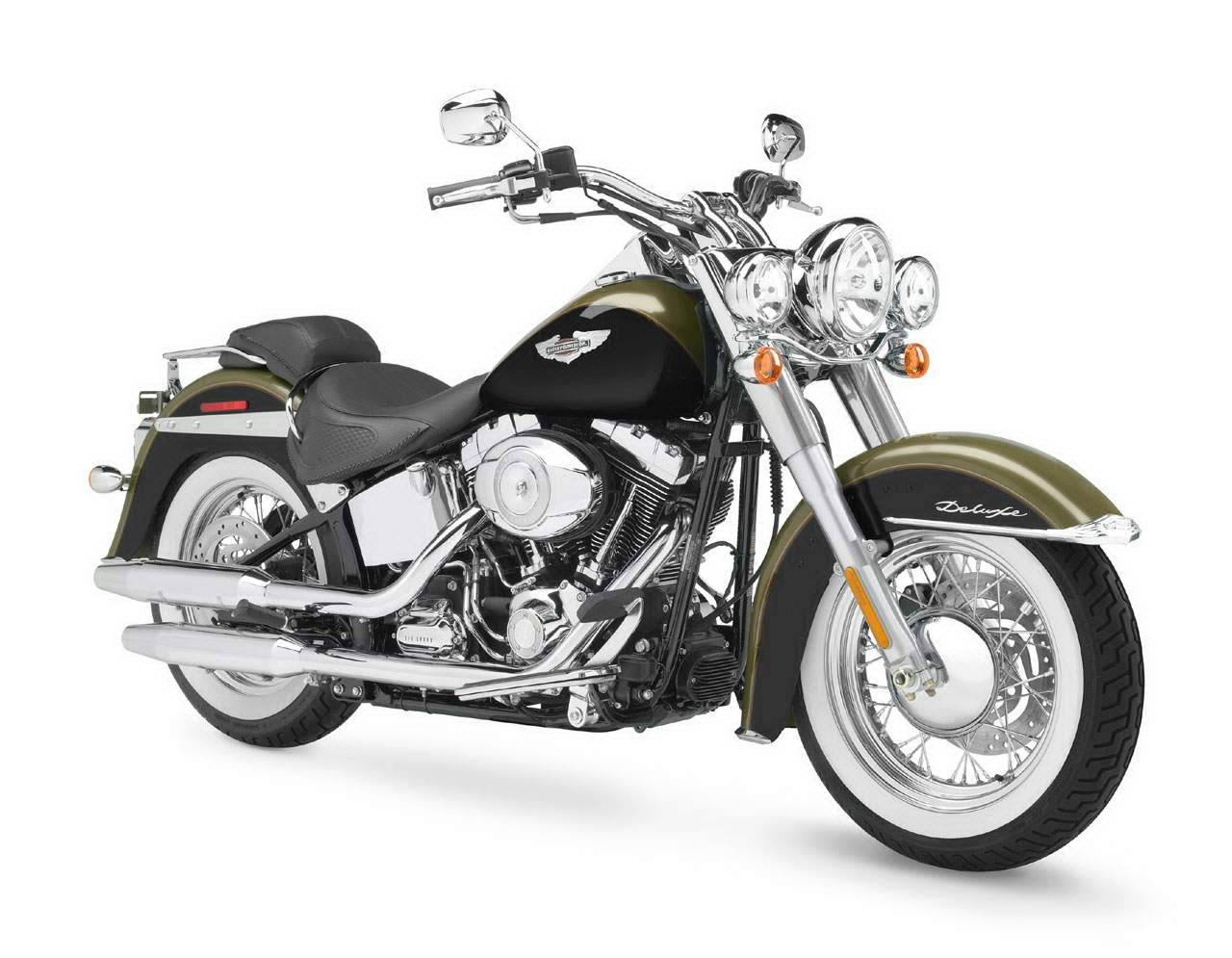

Harley-Davidson Harley Davidson FLSTN Softail Deluxe (2009-10) technical specifications

Harley-Davidson Harley Davidson FLSTN Softail Deluxe technical specifications

Harley-Davidson Harley Davidson FLSTN Softail Deluxe is produced in 2009-10. Engine is Four stroke, 45° V-Twin, Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder, displacement 1584 cc / 96 cu-in Harley-Davidson Harley Davidson FLSTN Softail Deluxe weighs 315 kg / 693 lbs.. Harley-Davidson Harley Davidson FLSTN Softail Deluxe has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: Harley Davidson FLSTN Softail Deluxe
Years: 2009-10
Engine: Four stroke, 45° V-Twin, Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Capacity: 1584 cc / 96 cu-in
Bore x Stroke: 95.2 x 111.2 mm
Cooling System: Air cooled
Compression Ratio: 9.2:1
Induction: Electronic Sequential Port Fuel Injection (ESPFI)
Ignition: Single-fire, non-wasted, map-controlled spark ignition
Starring: Electric
Max Torque: 124.7 Nm / 92 ft. lbs @ 3000 rpm
Transmission: 6 Speed
Final Drive: Belt
Gear Ratio: 1st 9.311 2nd 6.454 3rd 4.793 4th 3.882 5th 3.307 6th 2.79
Frame: Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded
Front Suspension: 41.3 mm telescopic, chrome dust covers
Rear Suspension: Hidden, horizontal-mounted, coil-over shock
Front Brakes: Single 292mm disc 4 piston caliper
Rear Brakes: Single 292mm disc 4 piston caliper
Front Tyre: D402F MT90-16
Rear Tyre: D402 MU85B16
Rake: 32°
Fork Angle: 32°
Trail: 147.3 mm / 5.8 in
Dimensions: Length 2405.4 mm / 94.7 in
Wheelbase: 1638 mm / 64.5 in
Seat Height: Laden2 622 mm / 24.5 in. Unladen 673 mm / 26.5 in.
Gross Vehicle Weight Rating: 526.0 kg / 1160 lb
Ground Clearance: 122 mm / 4.8 in
Dry Weight: 315 kg / 693 lbs.
Wet Weight: 329.0 kg / 726 lb
Fuel Capacity: 18.9 Litres / 5.0 gal
