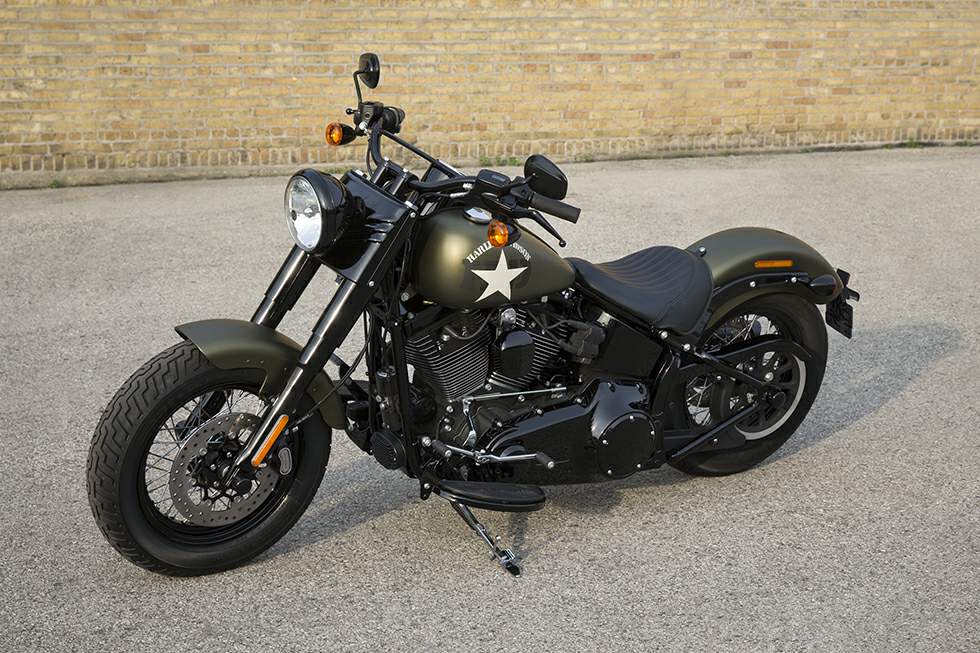

Harley-Davidson Harley Davidson FLS Softail Slim S (2016-17) technical specifications

Harley-Davidson Harley Davidson FLS Softail Slim S is produced in 2016-17. Engine is Screamin' Eagle®, Twin Cam 110B™, displacement 1801 cc / 109.9 cu in Harley-Davidson Harley Davidson FLS Softail Slim S weighs 308 kh / 679 lbs. Harley-Davidson Harley Davidson FLS Softail Slim S has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Harley Davidson FLS Softail Slim S
Years:	2016-17
Engine:	Screamin' Eagle®, Twin Cam 110B™
Capacity:	1801 cc / 109.9 cu in
Bore x Stroke:	101.6 x 111.1 mm
Cooling System:	Air-cooled
Compression Ratio:	9.2:1
Exhaust:	Black over/under shotgun exhaust with slash-cut mufflers
Induction:	Electronic Sequential Port Fuel Injection (ESPFI)
Ignition:	Electronic
Starting:	Electric
Max Torque:	145 Nm / 14.8 kgf-m / 107.0 ft. lbs @ 3000 rpm
Transmission:	6 Speed
Final Drive:	Belt
Primary Drive:	Chain, 34/46 ratio
Gear Ratio:	1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.79:1
Frame:	Frame Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded Swingarm Mild steel, round tube sections, forged junctions; MIG welded
Lean Angle, Left:	24º
Lean Angle, Right:	24.9º
Front Suspension:	41.3 mm telescopic, “beer can” covers
Rear Suspension:	Hidden, horizontal-mounted, coil-over
Front Brakes:	Single 292 mm discs, 4 piston caliper
Rear Brakes:	Single 292 mm disc, 2 piston caliper
Front Wheel:	Black, Laced Steel
Rear Wheel:	Black, Laced Steel
Front Tyre:	MT90B16 72H
Rear Tyre:	MU85B16 77H
Rake:	32.1°
Trail:	147 mm / 5.8 in
Dimensions:	Length 2350 mm / 92.5 in
Wheelbase:	1635 mm / 64.3 in
Seat Height:	Unladen 650 mm / 25.6 in.
Ground Clearance:	115 mm / 4.5 in
Dry Weight:	308 kh / 679 lbs
Wet Weight:	321 kg / 708 lbs
Gross Vehicle Weight Rating:	526.0 kg / 1160 lbs.
Oil Capacity:	3.3 Litres / 3.5 US qt
Fuel Capacity:	18.9 Litres / 5.0 US gal
