Harley-Davidson Harley Davidson FLHTCU Electra Glide Ultra Classic (2013) technical specifications

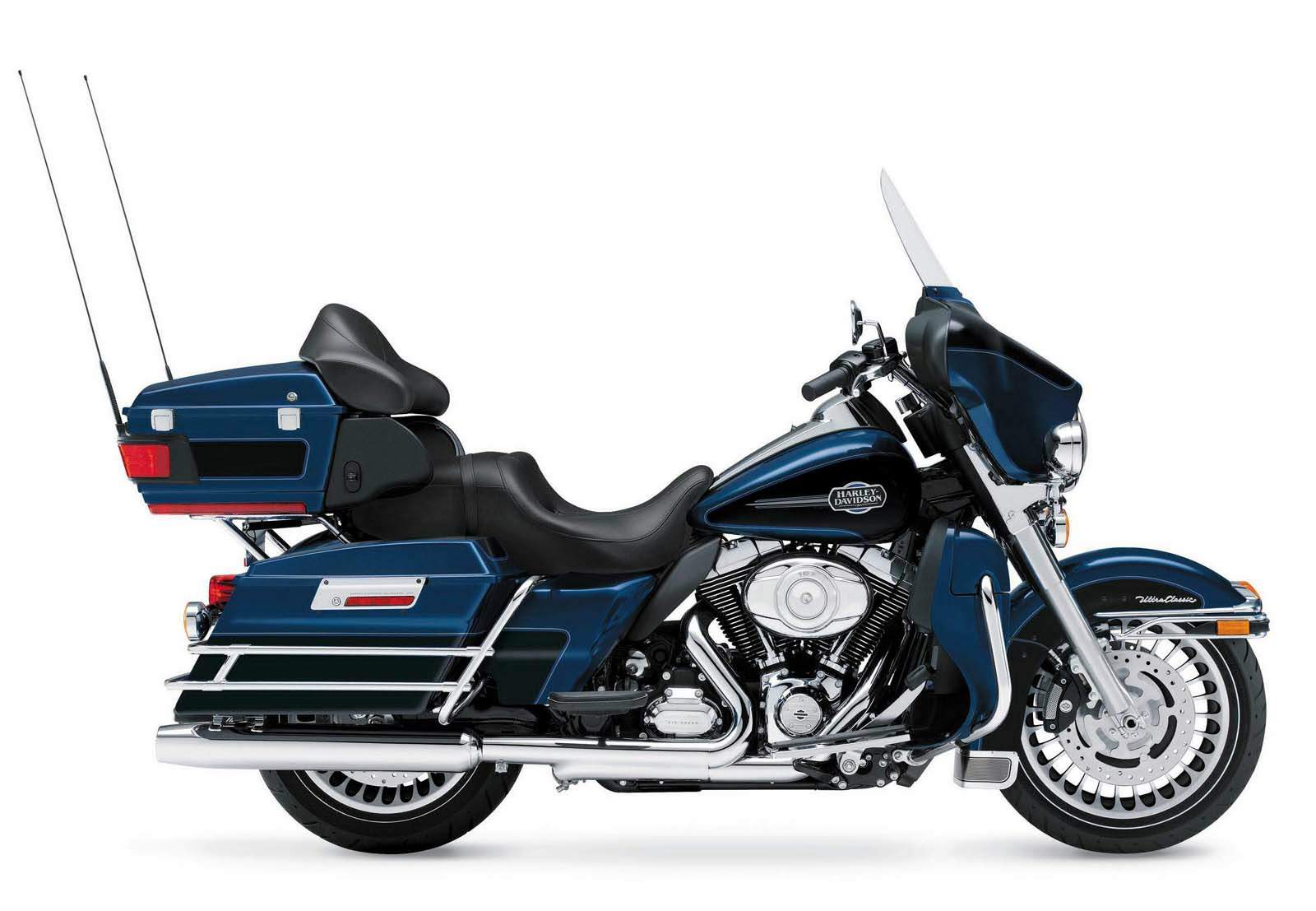

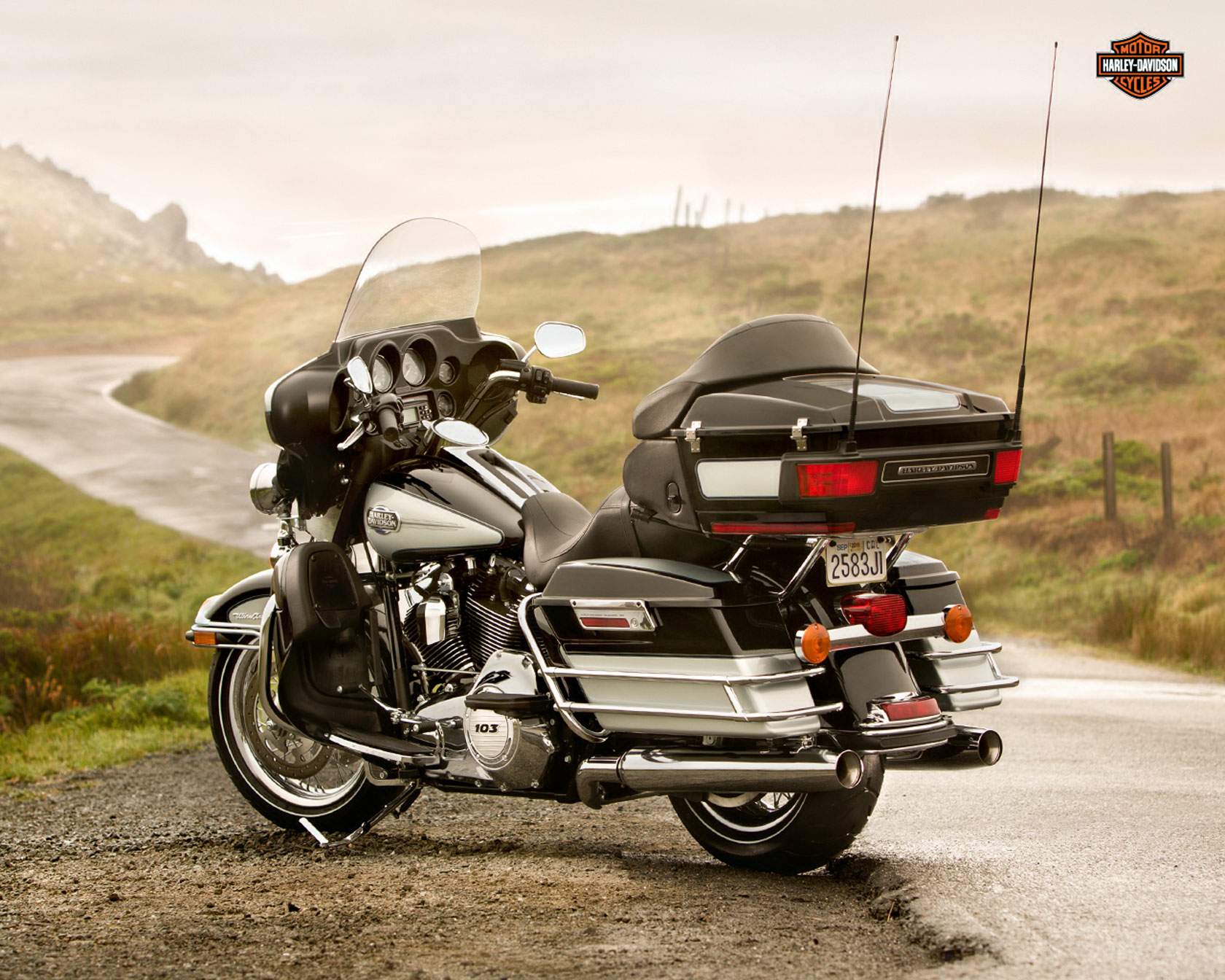

Harley-Davidson Harley Davidson FLHTCU Electra Glide Ultra Classic is produced in 2013. Engine is Four stroke, V-Twin, High output 'Twin Cam 103', displacement 1690 cc / 103.1 cub in. Harley-Davidson Harley Davidson FLHTCU Electra Glide Ultra Classic weighs 394 kg / 869 lbs. Harley-Davidson Harley Davidson FLHTCU Electra Glide Ultra Classic has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Harley Davidson FLHTCU Electra Glide Ultra Classic |
| Years: | 2013 |
| Engine: | Four stroke, V-Twin, High output 'Twin Cam 103' |
| Capacity: | 1690 cc / 103.1 cub in. |
| Bore x Stroke: | 98.4 x 111.1 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 10.0:1 |
| Exhaust: | Chrome, 2-1-2 dual exhaust with tapered mufflers |
| Induction: | Electronic Sequential Port Fuel Injection (ESPFI) |
| Ignition: | Single-fire, non-wasted, map-controlled spark ignition |
| Starting: | Electric |
| Max Torque: | 138 Nm / 14.1 kgf-m / 101.8 ft. lbs @ 3750 rpm |
| Clutch: | Multi-plate, wet |
| Transmission: | 6 Speed |
| Primary Drive: | Chain 34/46 ratio |
| Final Drive: | Belt |
| Gear Ratio: | 1st 9.593 2nd 6.65 3rd 4.938 4th 4.0 5th 3.407 6th 2.875 |
| Frame: | Mild steel, square-section backbone with twin downtubes |
| Lean Angle, Left: | 31.8º |
| Lean Angle, Right: | 31.9 |
| Front Suspension: | 41.3 mm telescopic, cartridge-style damping |
| Rear Suspension: | Short, air-adjustable shock |
| Front Brakes: | 2 x 292 mm disc, 4 piston caliper |
| Rear Brakes: | Single 292 mm disc, 4 piston caliper |
| Wheels, Front and Rear: | Impeller, cast aluminium |
| Front Tyre: | BW 130/80B17 65H |
| Rear Tyre: | BW 180/65B16 81H |
| Rake: | 26° |
| Fork Angle: | 29.2° |
| Trail: | 170 mm / 6.7 in |
| Dimensions: | Length 2497 mm / 98.3 in width 965 mm / 38 in Height 1549 mm / 61 in |
| Wheelbase: | 1625 mm / 63.9 in |
| Seat Height: | Laden2 693 mm / 27.3 in Unladen 739 mm /29.1 in |
| Ground Clearance: | 130 mm / 5.1 in |
| Dry Weight: | 394 kg / 869 lbs |
| Wet Weight: | 411 kg / 906 lbs |
| Oil Capacity: | 3.8 Litres / 4.0 US qts |
| Fuel Capacity: | 22.7 Litres / 6.0 US gal |
