Gilera RX 125 Arizona (1986-) technical specifications

Gilera RX 125 Arizona technical specifications

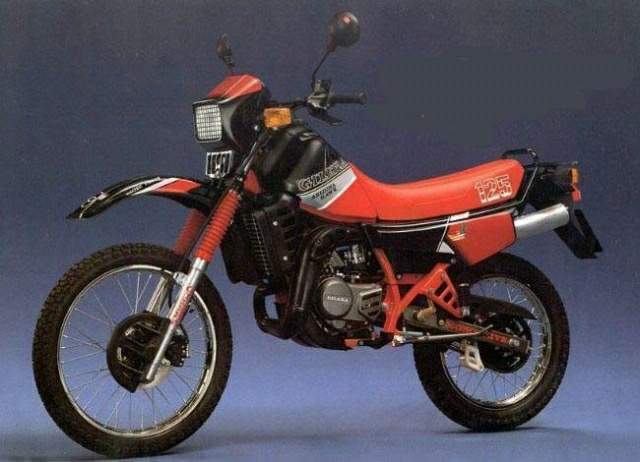

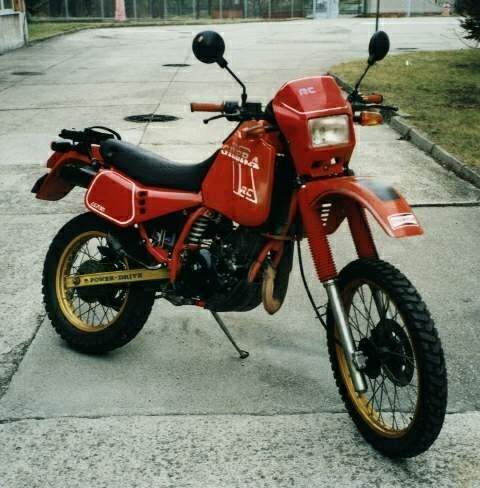

Gilera RX 125 Arizona is produced in 1986-. Engine is Two stroke, single cylinder, reed valves induction, displacement 124 cc / 7.6 cu-in , produces power 24 hp /18 kW @ 9250 rpm and 1.5 kgf-m @ 10500 rpm. Gilera RX 125 Arizona wet weight is 138 kg / 304 lbs. Gilera RX 125 Arizona has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: RX 125 Arizona
Years: 1986-
Engine: Two stroke, single cylinder, reed valves induction
Capacity: 124 cc / 7.6 cu-in
Bore x Stroke: 56 x 50 mm
Cooling Ssytem: Liquid cooled,
Compression Ratio: 13.4:1
Induction: 2x 26mm Dell'Orto carburetor
Ignition: CDI
Starting: kick
Max Power: 24 hp /18 kW @ 9250 rpm
Max Torque: 1.5 kgf-m @ 10500 rpm
Transmissio: 6 Speed
Final Drive: Chain
Front Suspension: Telescopic forks
Rear Suspension: Swing arm gas single shock
Front Brakes: Single 220 mm disc
Rear Brakes: 140 mm Drum
Front Tyre: 2.75-21
Rear Tyre: 4.10-18
Wet Weight: 138 kg / 304 lbs
Fuel Capacity: 16 Litres / 4.2 US gal
