Technical specifications
|

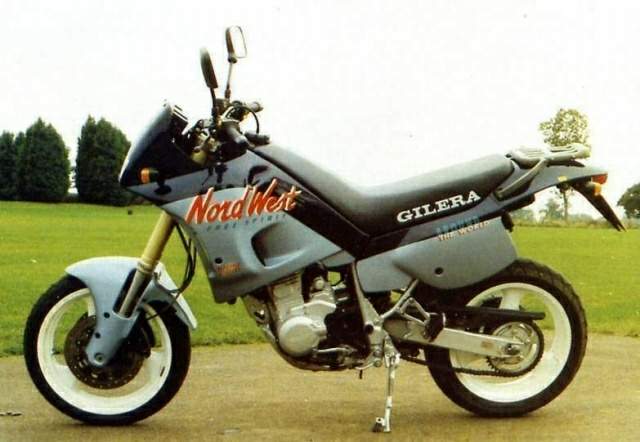

| Model: |
Northwest 600 |
| Years: |
1991- |
|
Engine:
|
Four stroke, single cylinder, DOHC, 4 valves
|
|
Capacity:
|
558 cc / 34.0 cu-in
|
|
Bore x Stroke:
|
98 x 74 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
10.5:1
|
|
Induction:
|
2X 30mm Teikei E30PV2A
|
|
Ignition:
|
Nippondenso electronic
|
|
Starting:
|
Electric & kick
|
|
Max Power:
|
49.5 hp / 36.5 kW @ 7250 rpm
|
|
Max Power Rear Tyre:
|
46 hp / 33.5 kW @ 7000 rpm
|
|
Max Torque:
|
51 Nm / 37 lb-ft @ 5500 rpm
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Chain
|
|
Front Suspension:
|
41mmMorzocchi forks 150mm wheel travel
|
|
Front Wheel Travel:
|
150 mm / 5.9 in
|
|
Rear Suspension:
|
Boge shocks variable preload
|
|
Rear Wheel Travel:
|
150 mm / 5.9 in
|
|
Front Brakes:
|
2x 270mm discs 4 piston calipers
|
|
Rear Brakes:
|
Single 240mm disc 2 piston caliper
|
|
Front Tyre:
|
120/60-17
|
|
Rear Tyre:
|
160/60-17
|
|
Dry Weight /:
|
141 kg / 310 lbs
|
|
Wet Weight:
|
173 kg / 377 lbs
|
|
Fuel Capacity:
|
12 Litres / 3.17 US gal
|
|
Consumption Average:
|
17.5 km/lit
|
|
Braking 60 - 0 / 100 - 0:
|
13.1 m / 37.32m
|
|
Standing ¼ Mile:
|
13.5 sec / 152.2 km/h
|
|
Top Speed:
|
170.9 km/h / 106 mph
|
|
Road Test:
|
Motosprint 1992 Performance Bike
|
