1991 Gilera CX 125 technical specifications

Technical specifications

Model: CX 125
Years: 1991-
Engine: Two stroke, single cylinder, power valve
Capacity: 124 cc / 7.6 cu-in
Bore x Stroke: 56 x 50..5 mm
Cooling System: Liquid cooled
Compression Ratio: 12.5:1
Induction: 32mm Dell'Orto VHSA32AS
Ignition: CDI
Starting: Electric
Max Power: 29.3 hp / 21.8 kW @ 9900 rpm
Max Torque: 18 Nm / 13.2 lb-ft @ 10250 rpm
Transmission: 6 Speed
Final Drive: Chain
Front Suspension: 45mm Paioli forks, 100 wheel travel
Rear Suspension: Single swinging arm
Front Brakes: Single 300mm disc
Rear Brakes: Single 240mm disc
Front Tyre: 120/60 -17
Rear Tyre: 150/60 -17
Dry Weight: 125.0 kg / 275 lbs
Fuel Capacity: 12 Litres / 3.17 US gal
Consumption Average: 16.8 km/lit
Braking 60 - 0 / 100 - 0: 13.0 m / 38.3 m
Standing ¼ Mile: 14.8 sec / 142.5 km/h
Top Speed: 168.3 km/h / 104.5 mph

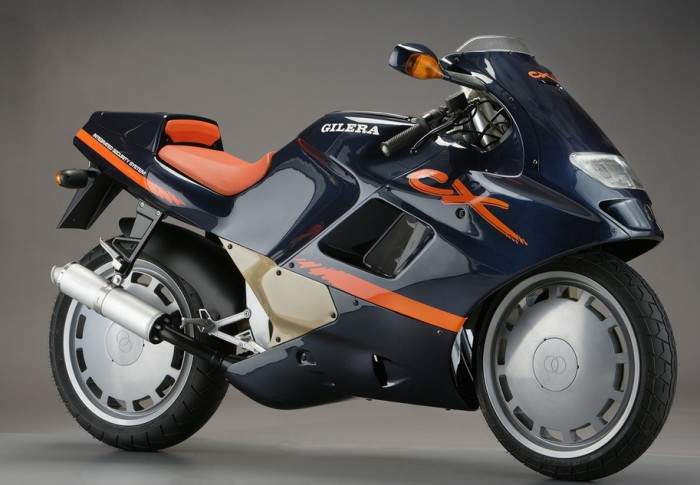

Photo gallery
