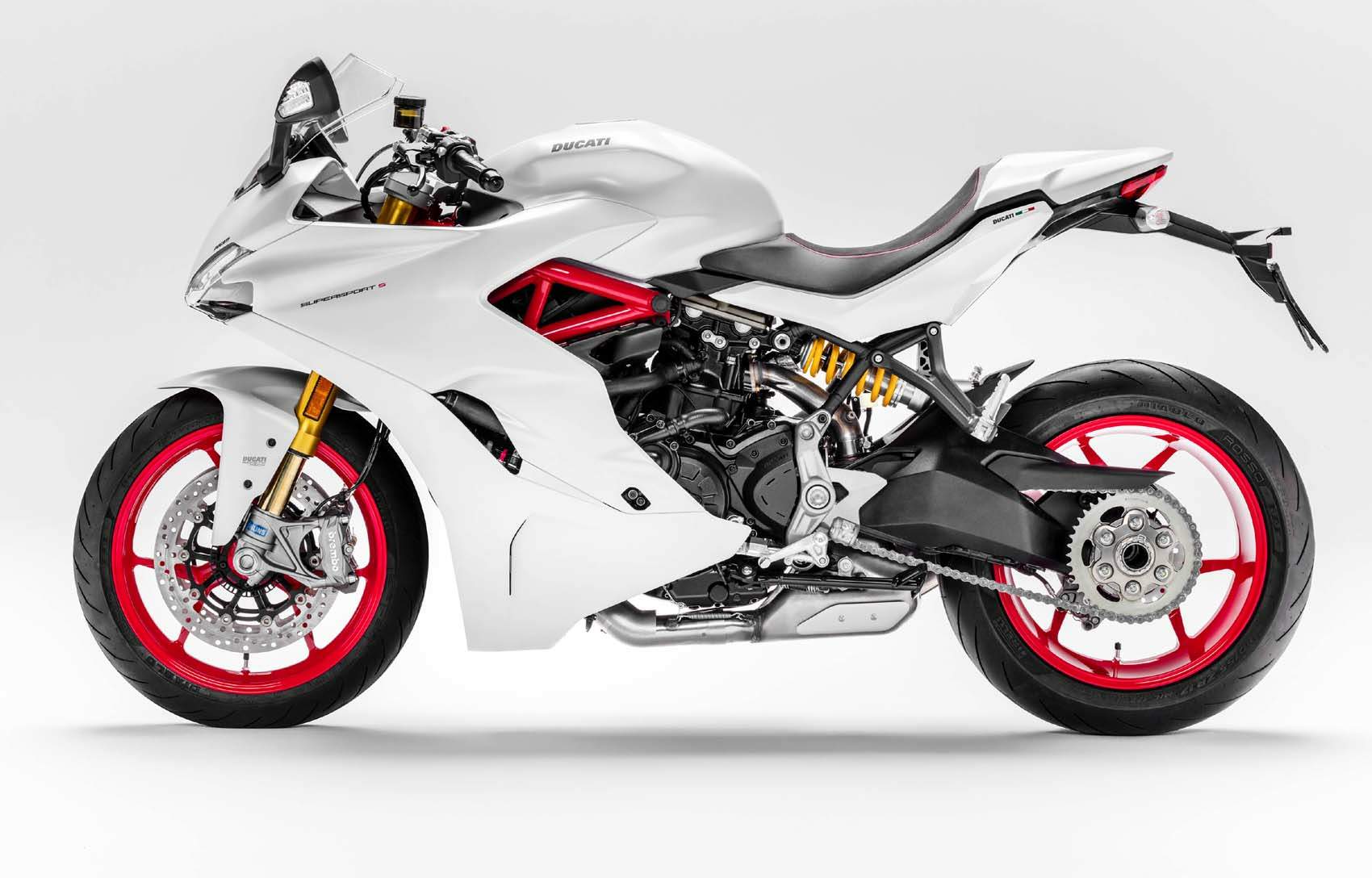

Ducati Supersport S (2017-18) technical specifications

Ducati Supersport S technical specifications

Ducati Supersport S is produced in 2017-18. Engine is Testastretta 11°, L-Twin cylinder, 4 valve percylinder, Desmodromic, displacement 937 cc / 57.2 cu in , produces power 82 kW / 110 hp @ 9000 rpm and 96.7 Nm / 9.9 kgf-m / 71.3 ft-lb @ 6500 rpm. Ducati Supersport S weighs 183 kg / 403 lbs. Ducati Supersport S has 6 photos.

Technical specifications

+ Add to 'Compare list'
Model: Supersport S
Years: 2017-18
Engine: Testastretta 11°, L-Twin cylinder, 4 valve percylinder, Desmodromic
Capacity: 937 cc / 57.2 cu in
Bore x Stroke: 94 x 67.5 mm
Compression Ratio: 12.6:1
Cooling System: Liquid cooled
Induction: Electronic fuel injection system, 53 mm throttle bodieswith full Ride-by-Wire
Ignition: Electronic
Starting: Electric
Exhaust: Lightweight 2-1-2 system with catalytic converter andtwo lambda probes. Twin aluminium mufflers
Emissions: Euro 4
Max Power: 82 kW / 110 hp @ 9000 rpm
Max Torque: 96.7 Nm / 9.9 kgf-m / 71.3 ft-lb @ 6500 rpm
Clutch: Wet multiplate clutch mechanically operated, self-servoaction on drive, slipper action on over-run
Transmission : 6-Speed
Final Drive: Chain; front sprocket 15; rear sprocket 43
Gear Ratio: 1st 37/15, 2nd 30/17, 3rd 28/20, 4th 26/22, 5th 24/23,6th 23/24
Primary drive: Straight cut gears; ratio 1.84:1
Frame: Tubular steel Trellis frame attached to the cylinderhead
Front Suspension: Fully adjustable 48 mm usd Öhlinsfork
Front Wheel Travel: 130 mm / 5.1 in
Rear Suspension: Progressive linkage with adjustable Öhlinsmonoshock. Aluminium single-sided swingarm
Rear Wheel travel: 144 mm / 5.7 in
Front Brakes: 2 x 320 mm Semi-floating discs, radially mountedMonobloc Brembo M4-32 callipers, 4-piston, radial pump with BoschABS
Rear Brakes: 245 mm disc, 2-piston caliper, Bosch ABS
Front Wheel: Y shaped, 3-spoke in light alloy, 3.50" x 17"
Rear Wheel: Y shaped, 3-spoke in light alloy, 5.50" x 17"
Front Tyre: Pirelli Diablo Rosso III 120/70 ZR17
Rear Tyre: Pirelli Diablo Rosso III 180/55 ZR17
Rake : 240
Trail: 91 mm / 3.6 in
Wheelbase: 1478 mm / 58.3 in
Seat Height: 810 mm / 31.9 in
Dry Weight: 183 kg / 403 lbs
Wet Weight: 210 kg / 463lbs
Fuel Capacity: 16 L / 4.2 US gal / 3.5 Imp gal
Instrumentation: LCD displayRiding Modes, Power Modes, Ducati SafetyPack (Bosch ABS + DTC), RbW, Full-LCD display, Day Time RunningLight (DRL), Adjustable windscreen, Ready for Ducati Quick Shift(DQS) up/down and anti-theft system
