Ducati Scrambler Full Throttle (2017-18) technical specifications

Ducati Scrambler Full Throttle technical specifications

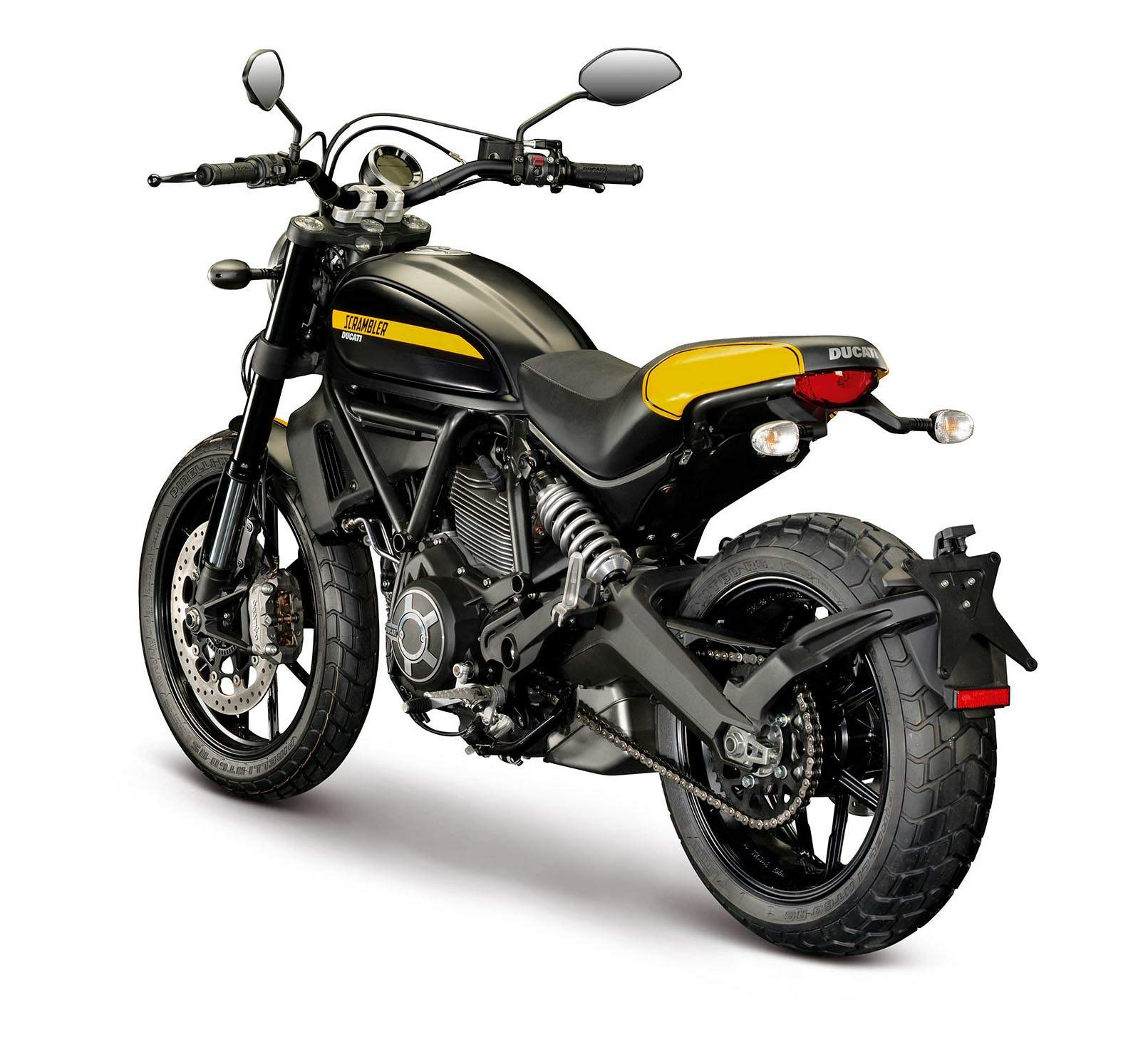

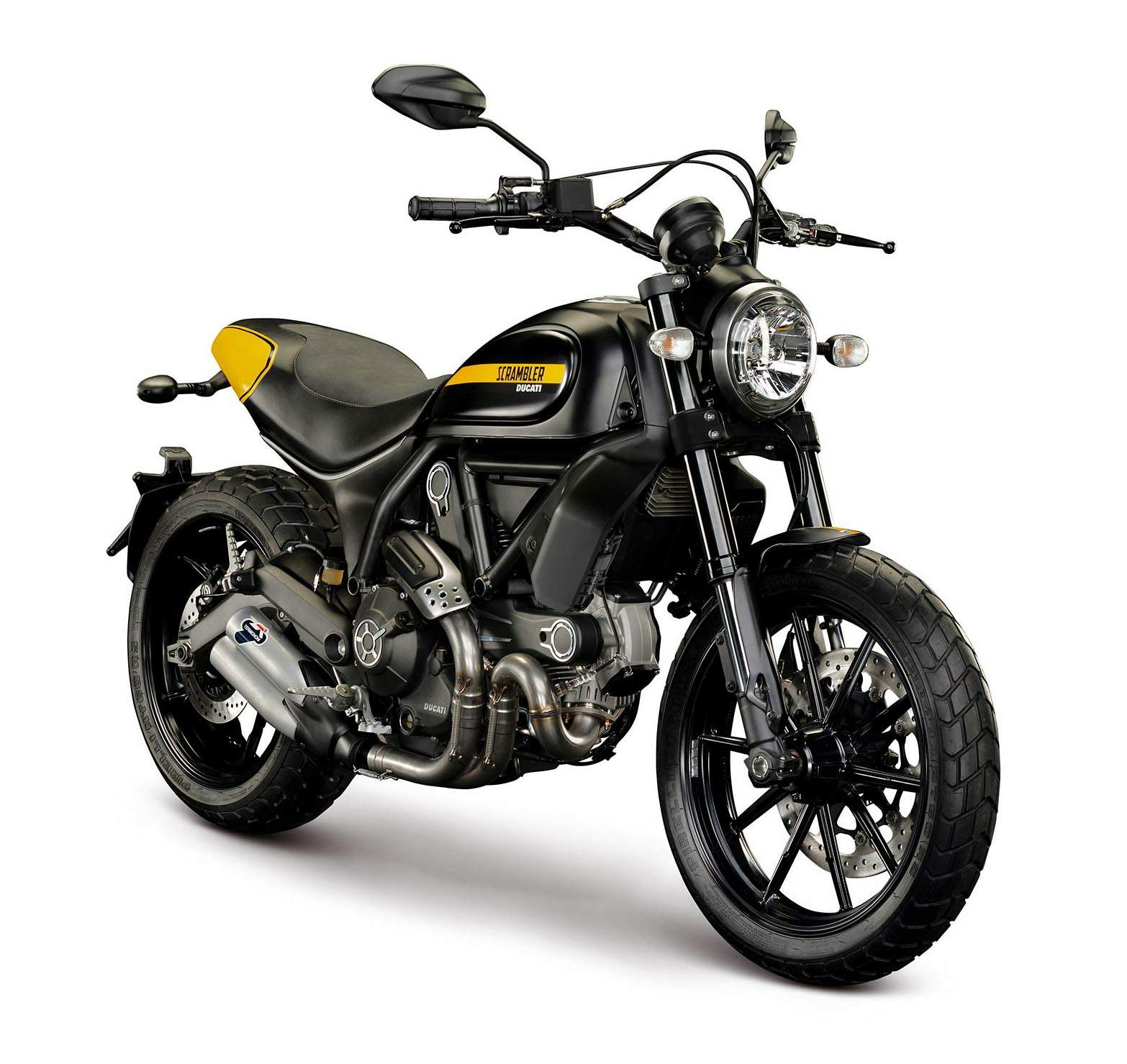

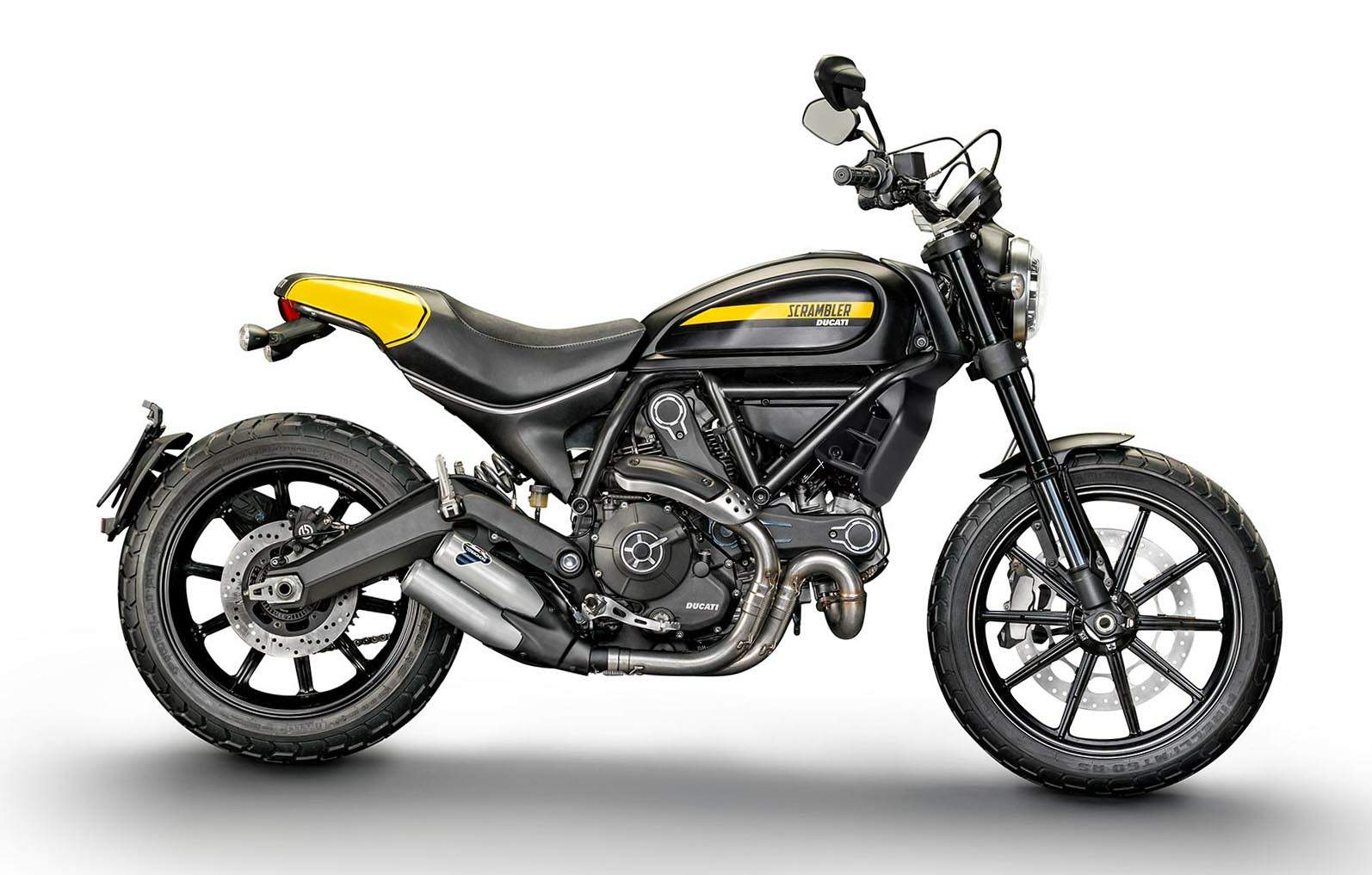

Ducati Scrambler Full Throttle is produced in 2017-18. Engine is Four stroke, 90° “L” twin cylinder, SOHC, desmodromic 2 valve per cylinder, displacement 803 cc / 49.0 cub in , produces power 55 kW / 75 hp @ 8250 rpm and 68 Nm / 6.9 kgf-m / 50 lb-ft @ 5750 rpm. Ducati Scrambler Full Throttle weighs 170 kg / 375 lbs. Ducati Scrambler Full Throttle has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: Scrambler Full Throttle
Years: 2017-18
Engine: Four stroke, 90° “L” twin cylinder, SOHC, desmodromic 2 valve per cylinder
Capacity: 803 cc / 49.0 cub in
Bore x Stroke: 88 x 66 mm
Cooling System: Air cooled
Compression Ratio: 11.0:1
Induction: Electronic fuel injection, 50 mm throttle bodies
Ignition: Marelli electronic
Starting: Electric
Exhaust: Exhaust system with twin stainless steel mufflers with aluminium exterior cover, catalytic converter and 2 lambda probes
Max Power: 55 kW / 75 hp @ 8250 rpm
Max Torque: 68 Nm / 6.9 kgf-m / 50 lb-ft @ 5750 rpm
Clutch: APTC wet multiplate with mechanical control
Transmission: 6 Speed
Final Drive: Chain, front spocket 15, rear sprocket 46
Primary Drive: Straight cut gears, ratio 1.85:1
Gear Ratio: 1st 20/13, 2nd 30/18, 3rd 28/21, 4th 26/23, 5th 22/22, 6th 24/26
Frame: Tubular steel Trellis frame
Front Suspension: Upside down Kayaba 41 mm fork
Front Wheel Travel: 150 mm / 5.9 in
Rear Suspension: Kayaba rear shock, pre-load adjustable
Rear Wheel Travel: 150 mm / 5.9 in
Front Brakes: Single 330 mm disc, 4-piston caliper with ABS as standard equipment
Rear Brakes: Single 245 mm disc, 1-piston caliper with ABS as standard equipment
Front Wheel: 10-spoke in light alloy 3.00" x 18"
Rear Wheel: 10-spoke light alloy 5.50" x 17"
Front Tyre: 110/80 R18 Pirelli MT 60 RS
Rear Tyre: 180/55 R17 Pirelli MT 60 RS
Rake: 24°
Trail: 112 mm / 4.4 in
Total steering lock: 35°
Dimensions: Length 2100 - 2165 mm / 82.7 - 85.2 in Height 1150 mm / 45.3 in Width 845 mm / 33.3 in
Wheelbase: 1455 mm / 57.3 in
Seat Height: 790 mm / 31.1 in. low seat 770 mm / 30.3 in. available as accessory
Dry Weight: 170 kg / 375 lbs
Wet Weight: 186 kg / 410 lbs
Fuel Capacity: 13.5 Litres / 3.57 US gal / 3.0 Imp gal
