Ducati Scrambler 800 Desert Sled Fasthouse Limited Edition (2021) technical specifications

Ducati Scrambler 800 Desert Sled Fasthouse Limited Edition technical specifications

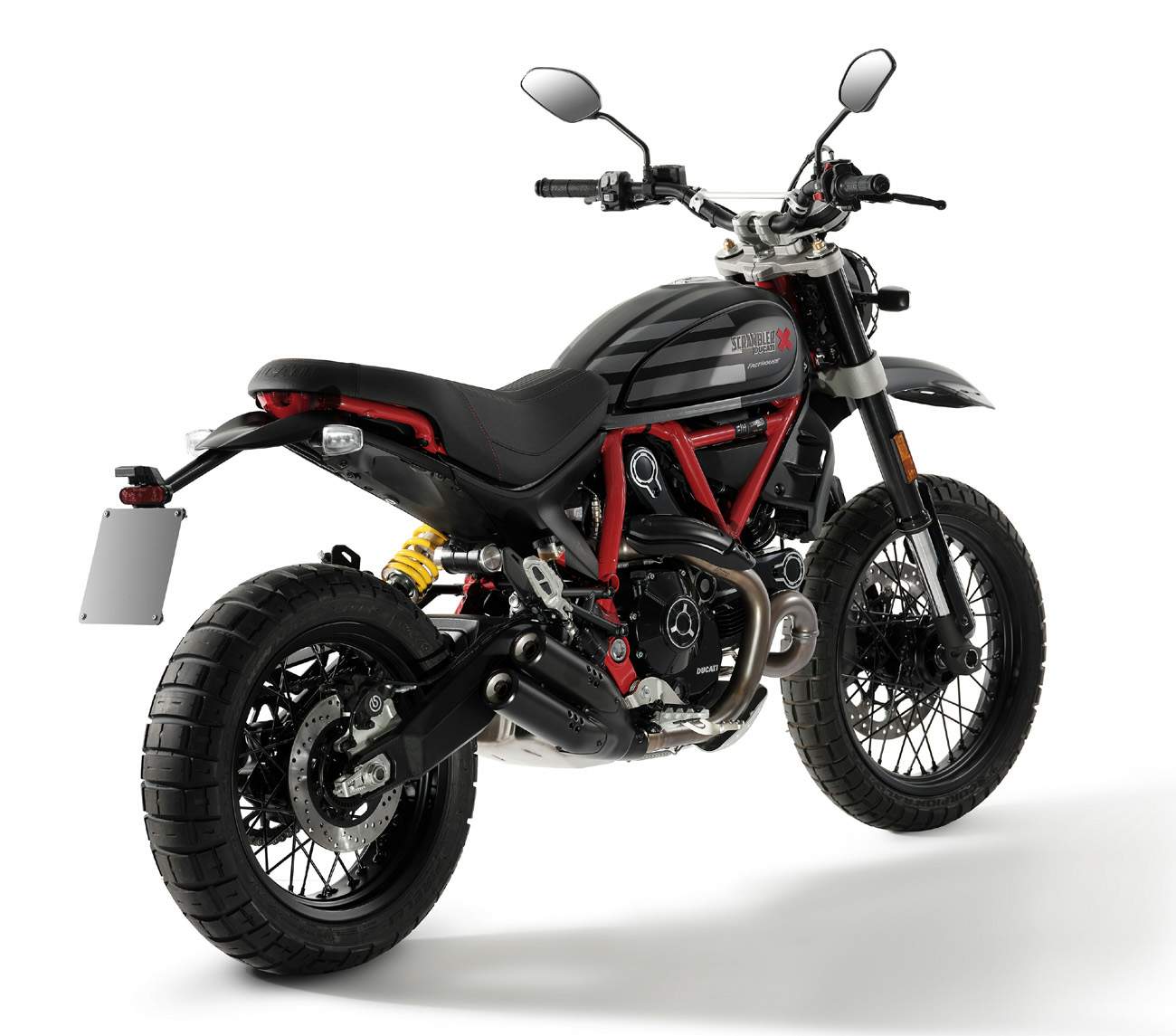

Ducati Scrambler 800 Desert Sled Fasthouse Limited Edition is produced in 2021. Engine is Four stroke, 90° L-twin cylinder, SOHC, desmodromic 2 valves per cylinder, displacement 803 cc / 49.0 cub in , produces power 73 hp / 53.6 kW @ 8250 rpm and 66.2 Nm / 48.8 lb-ft @ 5750 rpm. Ducati Scrambler 800 Desert Sled Fasthouse Limited Edition weighs 193 kg / 425.5 lbs. Ducati Scrambler 800 Desert Sled Fasthouse Limited Edition has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: Scrambler 800 Desert Sled Fasthouse Limited Edition
Years: 2021
Production: 800 units
Engine: Four stroke, 90° L-twin cylinder, SOHC, desmodromic 2 valves per cylinder
Capacity: 803 cc / 49.0 cub in
Bore x Stroke: 88 x 66 mm
Cooling System: Air cooled
Compression Ratio: 11.0:1
Exhaust: Stainless steel muffler with catalytic converter and 2 lambda probes, aluminium tail pipes
Emission: Euro5
Induction: Electronic fuel injection, 50 mm throttle body
Ignition: Marelli electronic
Starting: Electric
Max Power: 73 hp / 53.6 kW @ 8250 rpm
Max Torque: 66.2 Nm / 48.8 lb-ft @ 5750 rpm
Clutch: Hydraulically controlled slipper and self-servo wet multiplate clutch
Transmission: 6 Speed
Final Drive: Chain, front spocket 15, rear sprocket 46
Gear Ratio: 1st 32/13 2nd 30/18 3rd 28/21 4th 26/23 5th 22/22 6th 24/26
Primary Drive: Straight cut gears, Ratio 1.85:1
Frame: Tubular steel trellis frame
Front Suspension: 46mm Kayaba fully adjustable USD forks
Front Wheel Travel: 200 mm / 7.9 in
Rear Suspension: Kayaba rear shock, pre-load and rebound adjustable. Aluminium double-sided swingarm
Rear Wheel Travel: 200 mm / 7.9 in
Front Brakes: Single 330 mm disc, radial 4-piston calliper with
Rear Brakes: Single 245 mm disc, 1-piston floating calliper
ABS: Bosch Cornering ABS as standard equipment
Front Wheel: Spoked aluminium wheel 3.00 x 19
Rear Wheel: Spoked aluminium wheel 4.50 x 17
Front Tyre: 120/70 R19 Pirelli Scorpion Rally STR
Rear Tyre: 170/60 R17 Pirelli Scorpion Rally STR
Rake: 24°
Trail: 112 mm / 4.4 in
Total steering lock: 35°
Dashboard: LCD
Dimensions: Length 2200 mm / 86.6 in Height 1213 mm / 47.8 in Width 940 mm / 37.0 in
Wheelbase: 1505 mm / 59.3 in
Seat Height: 860 mm / 33.9 in – low seat 840 mm / 33.0 in available as accessory
Dry Weight: 193 kg / 425.5 lbs
Wet Weight: 209 kg / 460.8 lbs
Fuel Capacity: 13.5 Litres / 3.57 US gal
