Ducati Panigale V4 S (2018) technical specifications

Ducati Panigale V4 S is produced in 2018. Engine is Four stroke, DesmosediciStradale 90° V4, rearward-rotating crankshaft, 4Desmodromically actuated valves per cylinder, displacement 1103 cc / 67.3 cuin , produces power 157.5 kW / 214 hp @ 13000rpm and 124.0 Nm / 91.5 lb-ft @ 10000rpm. Ducati Panigale V4 S weighs 173 kg / 381lbs. Ducati Panigale V4 S has 6 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Panigale V4 S
Years:	2018

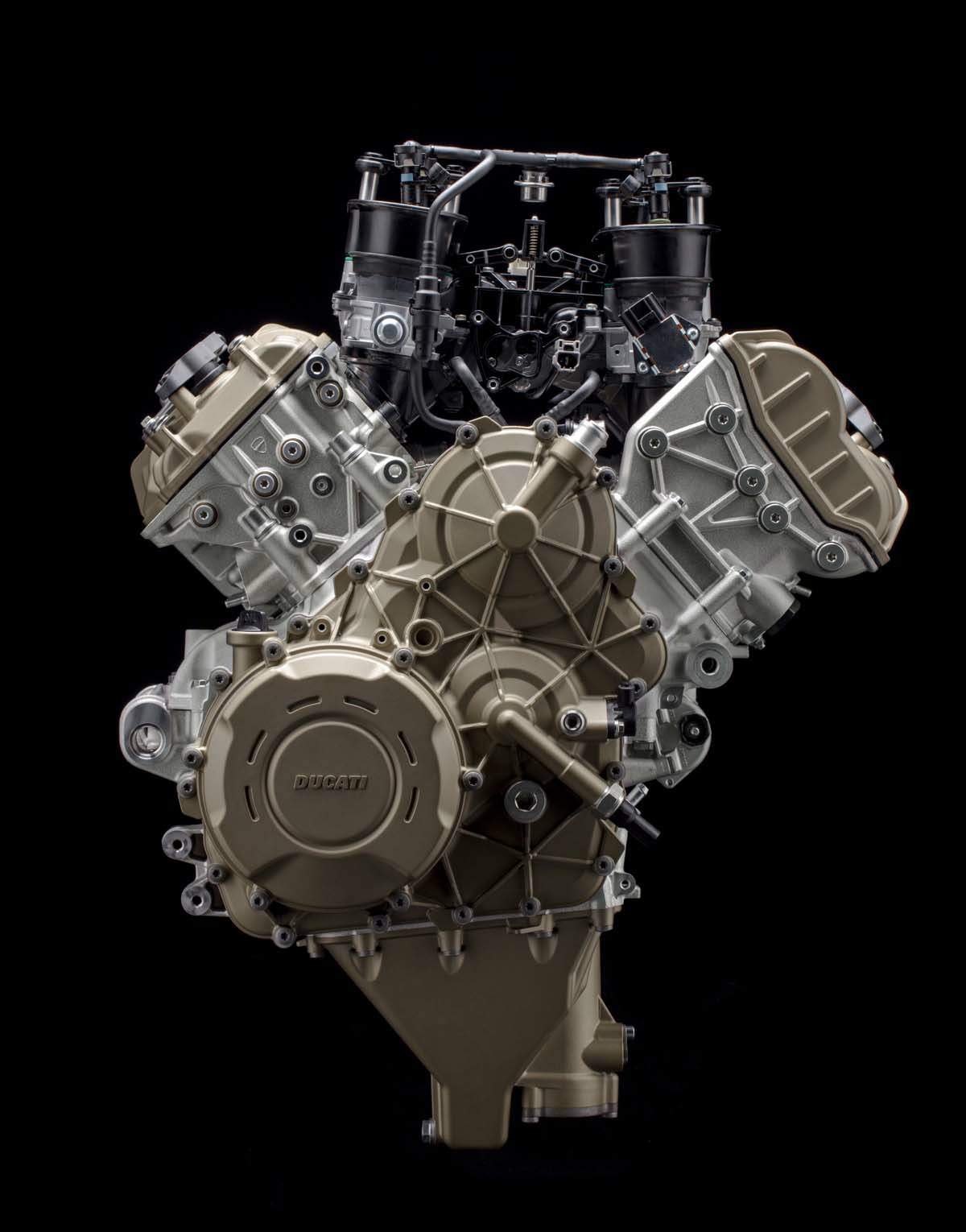

Engine:	Four stroke, DesmosediciStradale 90° V4, rearward-rotating crankshaft, 4Desmodromically actuated valves per cylinder
Capacity:	1103 cc / 67.3 cuin
Bore x Stroke:	81 x 53.5mm
Compression Ratio:	14.0:1
Cooling System:	Liquidcooled
Induction:	Electronic fuel injectionsystem. Twin injectors per cylinder. Full ride-by-wire ellipticalthrottle bodies. Variable length intake system
Exhaust:	4-2-1-2 system, with 2catalytic converters and 2 lambda probes
Starting:	Electric
Max Power:	157.5 kW / 214 hp @ 13000rpm
Max Torque:	124.0 Nm / 91.5 lb-ft @ 10000rpm
Clutch:	Hydraulically controlledslipper and self-servo wet multiplate clutch
Transmission :	6Speed withDucati Quick Shift (DQS) up/down EVO
Primary Drive:	Straight cut gears; Ratio1.80:1
Final drive:	Chain; Front sprocket 16;Rear sprocket 41
Gear Ratio:	1=38/142=36/17 3=33/19 4=32/21 5=30/22 6=30/24
Frame:	Aluminum alloy"Front Frame"
Front Suspension:	Öhlins NIX30 43 mmfully adjustable fork with TiN treatment. Electronic compressionand rebound damping adjustment with Öhlins Smart EC 2.0event-based mode
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	Progressivelinkage with fully adjustable Öhlins monoshock with top-outspring. Aluminium single-sided swingarm
Rear Wheel travel:	130 mm / 5.1 in
Front Brakes:	2 x 330 mm semi-floatingdiscs, radially mounted Brembo Monobloc Stylema® (M4.30)4-piston callipers with Bosch Cornering ABS EVO
Rear Brakes:	Single 245 mm disc, 2-piston calliper with Bosch Cornering ABSEVO
Front Wheel:	3-spokes aluminumalloy 3.50" x 17"
Front Tyre:	120/70 ZR17 PirelliDiablo Supercorsa SP
Rear Wheel:	3-spokes aluminum alloy6.00" x 17"
Rear Tyre:	200/60 ZR17Pirelli Diablo Supercorsa SP
Rake:	24,5°
Trail:	100 mm / 3.9 in
Wheelbase:	1469 mm / 57.8in
Seat Height:	830 mm / 32.4in
Dry Weight:	173 kg / 381lbs
Fuel Capacity :	16Litres / 4.3 US gal / 3.9 Imp gal
Instruments:	Last generation digital unit with 5" TFT colourdisplay
Seats:	Passenger seat andfootpegs kit
Safety Equipment:	Riding Modes, PowerModes, Bosch Cornering ABS EVO, Ducati Traction Control (DTC) EVO,Ducati Wheelie Control (DWC) EVO, Ducati Slide Control (DSC),Engine Brake Control (EBC) EVO, Auto tyre calibration
Standard Equipment:	Ducati Power Launch(DPL), Ducati Quick Shift (DQS) up/down EVO, Full LED lighting withDaytime Running Light (DRL), Ducati Electronic Suspension (DES) EVOwith Ohlins suspension and steering damper, Quick adjustmentbuttons, Lithium-ion battery, Auto-off indicators, Marchesinialuminium forged wheels
Additional Equipment:	Racing windshield,Machined mirror block-off plates, License plate mount removal plug,Ducati Data Analyser+ (DDA+) with GPS module, Paddock bikecover
Ready For:	Ducati Data Analyser+(DDA+) with GPS module, Ducati Multimedia System (DMS) andanti-theft
