Ducati Multistrada 1200 (2011) technical specifications

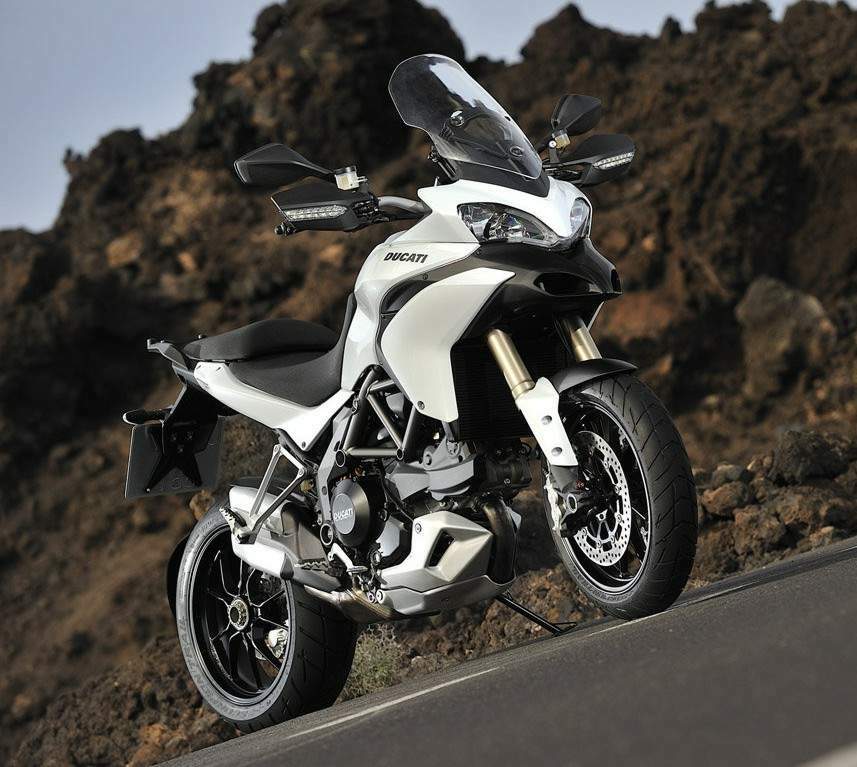

Ducati Multistrada 1200 technical specifications

Ducati Multistrada 1200 is produced in 2011. Engine is Four stroke, 90° “L” twin cylinder, DOHC, desmodromic 4 valves per cylinder, displacement 1198.4 cc / 73.1 cu-in , produces power 110.3 kW / 150 hp @ 9250 rpm and 118.7Nm / 12.1 kgm / 87.5 lb-ft @ 7500rpm. Ducati Multistrada 1200 weighs 188 kg / 417 lbs. Ducati Multistrada 1200 has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: Multistrada 1200
Years: 2011
Engine: Four stroke, 90° “L” twin cylinder, DOHC, desmodromic 4 valves per cylinder
Capacity: 1198.4 cc / 73.1 cu-in
Bore x Stroke: 106 x 67.9 mm
Cooling System: Liquid cooled
Compression Ratio: 11.5:1
Lubrication: Wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Exhaust: Stainless steel muffler with catalytic converter and 2 lambda probes, alluminium tail pipes
Induction: Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies
Ignition: Marelli electronic
Starting: Electric
Max Power: 110.3 kW / 150 hp @ 9250 rpm
Max Torque: 118.7Nm / 12.1 kgm / 87.5 lb-ft @ 7500rpm
Clutch: Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Transmission: 6 Speed
Final Drive: Chain #530, front sprocket 15; rear sprocket 40
Straight Cut Gear Ratio: 1.84:1
Gear Ratio: 1st 37/15 / 2nd 30/17 / 3rd 27/20 / 4th 24/22 / 5th 23/24 / 6th 22/25
Frame: Tubular steel trellis frame
Front Suspension: Marzocchi 50 mm fully adjustable USD forks
Front Wheel Travel: 170 mm / 6.7 in
Rear Suspension: Progressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm
Rear Wheel Travel: 170 mm / 6.7 in
Front Brakes: 2 x 320 mm Semi-floating discs, radially mounted Brembo calipers, 4-piston, 2-pad. ABS as standard equipment
Rear Brakes: Single 245 mm disc, 2-piston caliper
Front Wheel: 10-spoke light alloy, 3.50 x 17
Rear Wheel: 10-spoke light alloy, 6.00 x 17
Front Tyre: 120/70 - ZR17
Rear Tyre: 190/55 - ZR17
Rake: 25°
Trail: 110 mm / 4.33 in
Dimensions: Length: 2200 mm / 86.6 in Width: 945 mm / 37.2 in Height: 1310 mm / 51.5 in
Wheelbase: 1530mm / 60.2 in
Seat Height: 850 mm / 33.4 in
Dry Weight: 188 kg / 417 lbs
Wet Weight: 217 kg / 478 lbs
Fuel Capacity: 20 Litres / 5.3 US gal / 4.4 Imp gal
