Ducati Monster 1100 EVO Diesel Special Edition (2012) technical specifications

Ducati Monster 1100 EVO Diesel Special Edition technical specifications

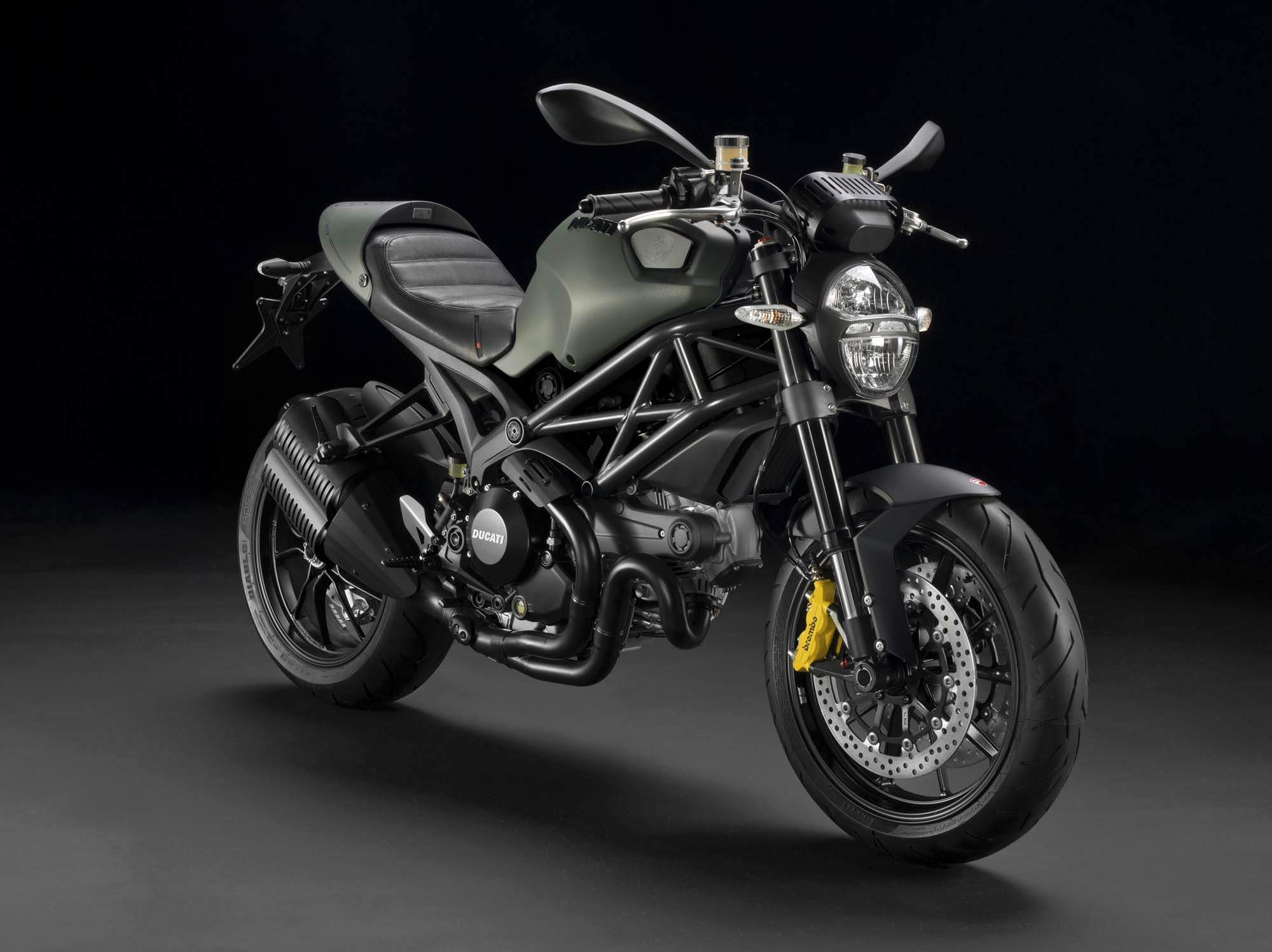

Ducati Monster 1100 EVO Diesel Special Edition is produced in 2012. Engine is Four stroke, 90° “L” twin cylinder, SOHC, desmodromic 2 valves per cylinder, displacement 1078 cc / 65.8 cu in , produces power 73.5 kW /100 hp / @ 7500rpm (EC Certificate of Conformity: 69.9 kW / 95 hp) and 103 Nm / 10.5 / 76 ft-lb kgm @ 6000rpm. Ducati Monster 1100 EVO Diesel Special Edition top speed is 225 km/h / 139.8 mph. Ducati Monster 1100 EVO Diesel Special Edition wet weight is 188 kg / 414 lbs (with ABS). Ducati Monster 1100 EVO Diesel Special Edition has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: Monster 1100 EVO Diesel Special Edition
Years: 2012
Engine: Four stroke, 90° “L” twin cylinder, SOHC, desmodromic 2 valves per cylinder
Capacity: 1078 cc / 65.8 cu in
Bore x Stroke: 98 x 71.5 mm
Cooling System: Air cooled
Compression Ratio: 11.3:1
Lubrication: Wet sump
Exhaust: Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminum mufflers
Induction: Siemens electronic fuel injection, 45mm throttle bodies
Ignition: Marelli electronic
Starting: Electric
Max Power: 73.5 kW /100 hp / @ 7500rpm (EC Certificate of Conformity: 69.9 kW / 95 hp)
Max Torque: 103 Nm / 10.5 / 76 ft-lb kgm @ 6000rpm
Clutch: Dry multiplate with hydraulic control
Transmission: 6 Speed
Final Drive: Chain; front sprocket 15; rear sprocket 39
Gear Ratio: 1st 37/15, 2nd 30/17, 3rd 27/20, 4th 24/22, 5th 23/24, 6th 24/28
Primary Drive: Straight cut gears; ratio 1.84:1
Frame: Tubular steel Trellis frame
Front Suspension: Marzocchi 43mm fully adjustable usd forks
Front Wheel Travel: 130 mm / 5.1 in
Rear Suspension: Progressive with preload and rebound Sachs adjustable monoshock
Rear Wheel Travel: 148 mm / 5.8 in
Front Brakes: 2 x 320 mm Discs, 4 piston radial caliper with ABS
Rear Brakes: Single 245 mm disc, 2 piston caliper with ABS
Front Tyre: 120/70 - ZR17
Rear Tyre: 180/55 - ZR17
Front Wheel: 10-spoke in light alloy 3.50 x 17
Rear Wheel: 10-spoke in light alloy 5.50 x 17
Rake: 24°
Trail: 86 mm / 3.4 in
Dimensions: Length: 2095 mm / 82.5 in Width: 784 mm / 30.9 in Height: 1099 mm / 43.3 in
Wheelbase: 1450 mm / 57.1in
Seat Height: 810 mm / 31.9 in
Wet Weight: 188 kg / 414 lbs (with ABS)
Fuel Capacity: 13 L / 3.4 US gal / 2.9 Imp gal
Consumption Average: 4.8 L/100 km 20.8 km/l / 49 US mpg / 59 Imp mpg
Standing 0 - 100 km/h: 3.6 sec
Standing 0 - 140 km/h: 5.8 sec
Standing 0 - 200 km/h: 14.6 sec
Acceleration 60-140 km/h: 10.9 s ec
Acceleration 60-100 km/h: 5.0 sec
Acceleration 100-140 km/h: 4.9 sec
Acceleration 140-180 km/h: 5.7 sec
Top Speed: 225 km/h / 139.8 mph
Instruments: Digital unit displaying: Speedometer, rev counter, time, scheduled maintenance warning, oil temperature, trip fuel, lap time, warning light for low oil pressure, fuel level, fuel reserve, neutral, turn signals, warning ABS, overrev, DTC, immobilizer. Ready for DDA system.
