Ducati 996 R (2001) technical specifications

Ducati 996 R is produced in 2001. Engine is Four stroke, 90°“L”twin cylinder, DOHC, desmodromic 4 valve per cylinder., displacement 998 cc / 60.9 cu in , produces power 100 kW / 136 hp @ 10200 rpm and 105 Nm / 77.4 lb-ft @ 8000 rpm. Ducati 996 R top speed is 281.5 km/h / 174.9 mph. Ducati 996 R weighs 185 kg / 408 lbs. Ducati 996 R has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	996 R
Years:	2001
Production:	500 Units

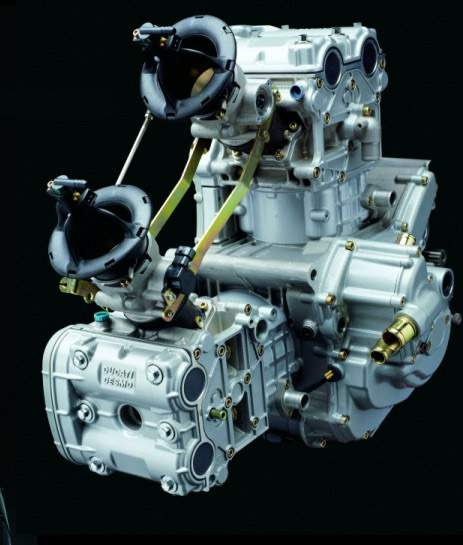

Engine:	Four stroke, 90°“L”twin cylinder, DOHC, desmodromic 4 valve per cylinder.
Capacity:	998 cc / 60.9 cu in
Bore x Stroke:	100 x 63,5 mm
Cooling System:	Liquid cooled
Compression Ratio:	11.4:1
Lubrication:	Wet sump
Engine Oil:	Synthetic, 15W-50
Induction:	Weber Marelli CPU 5.9 M, 54 mm throttle bodies
Spark Plugs:	Champion RG4HC
Ignition:	Digital CDI
Battery:	12V, 10AH
Starting:	Electric
Max Power:	100 kW / 136 hp @ 10200 rpm
Max Torque:	105 Nm / 77.4 lb-ft @ 8000 rpm
Clutch:	Hydraulically activated dry clutch
Transmission:	6 Speed
Primary Drive Ratio:	1.84:1 (32/59)
Gear Ratios:	1st 2.466 / 2nd 1.765 / 3rd 1.400 / 4th 1.182 / 5th 1.043 / 6th 0.958:1
Final Drive Ratio:	2.4:1 (15/36)
Final Drive:	Chain
Frame:	Tubular trestle frame with upper section made of high-strength steel
Front Suspension:	43 mm Öhlins shock, adjustable for compression and rebound damping
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	Öhlins mono shock, rising rate, adjustable for compression and rebound damping
Rear Wheel Travel:	130 mm / 5.1 in
Front Brakes:	2x 320 mm Discs, 4 piston calipers
Rear Brakes:	Single 220 disc, 2 piston caliper
Front Wheel:	Alloy, 3.50 X 17 in.
Rear Wheel:	Alloy, 5.50 X 17 in.
Front Tyre:	120/70 ZR17
Rear Tyre:	190/50 ZR17
Rake:	23.5o - 24.5o
Dimensions:	Length 2030 mm / 79.9 in Width 780 mm / 30.7 in Height 1080 mm / 42.5 in
Wheelbase:	1410 mm / 55.5 in
Seat Height:	790 mm / 31.1 in
Dry Weight:	185 kg / 408 lbs
Fuel Capacity:	17 Litres / 4.5 US gal / 3.7 Imp gal
Consumption Average:	5.9 L/100 km / 17 km/l / 40 US mpg / 48 Imp mpg
Standing ¼ Mile:	10.1 sec
Top Speed:	281.5 km/h / 174.9 mph
