Ducati 959 Panigale Corse (2018) technical specifications

Ducati 959 Panigale Corse is produced in 2018. Engine is Four stroke, 90° “L” twin cylinder, DOHC, desmodromic 4 valves per cylinder. , displacement 955 cc / 58.3 cu in , produces power 110 kW / 150 hp @ 10500 rpm and 107.4 Nm / 10.9 kgf-m / 79 lb-ft @ 9000 rpm. Ducati 959 Panigale Corse has 8 photos.

Technical specifications

+ Add to 'Compare list'

Model:	959 Panigale Corse
Years:	2018
Engine:	Four stroke, 90° “L” twin cylinder, DOHC, desmodromic 4 valves per cylinder.
Capacity:	955 cc / 58.3 cu in
Bore x Stroke:	100 x 60.8 mm
Compression Ratio:	12.5:1
Cooling System:	Liquid cooled

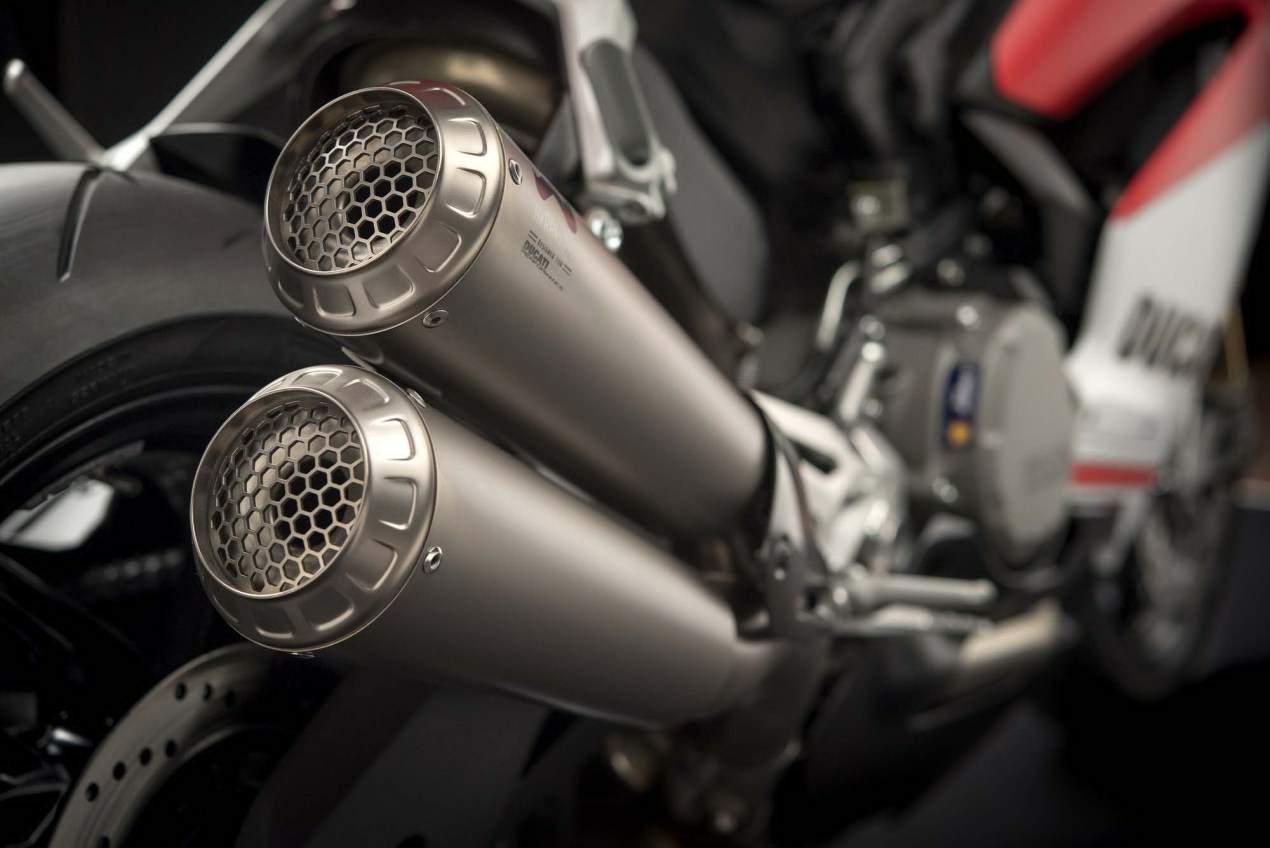

Exhaust:	2-1-2 system with catalytic converter and 2 lambda probes. Ducati Performance by Akrapovic stainless steel pre-silencer with twin titanium side mufflers
Emission:	Euro 4
Induction:	Mitsubishi electronic fuel injection system. Twin injectors per cylinder. Full Ride-by-Wire elliptical throttle bodies
Ignition:	Electronic
Starting:	Electric
Max Power:	110 kW / 150 hp @ 10500 rpm
Max Torque:	107.4 Nm / 10.9 kgf-m / 79 lb-ft @ 9000 rpm
Clutch:	Slipper and self-servo wet multiplate clutch with hydraulic control
Transmission :	6-Speed
Final Drive:	Chain, Front sprocket 15, Rear sprocket 43
Primary Drive:	Straight cut gears, Ratio 1.77:1
Gear Ratio:	1st 37/15 2nd 30/16 3rd 27/18 4th 25/20 5th 24/22 6th 23/24
Frame:	Monocoque Aluminium

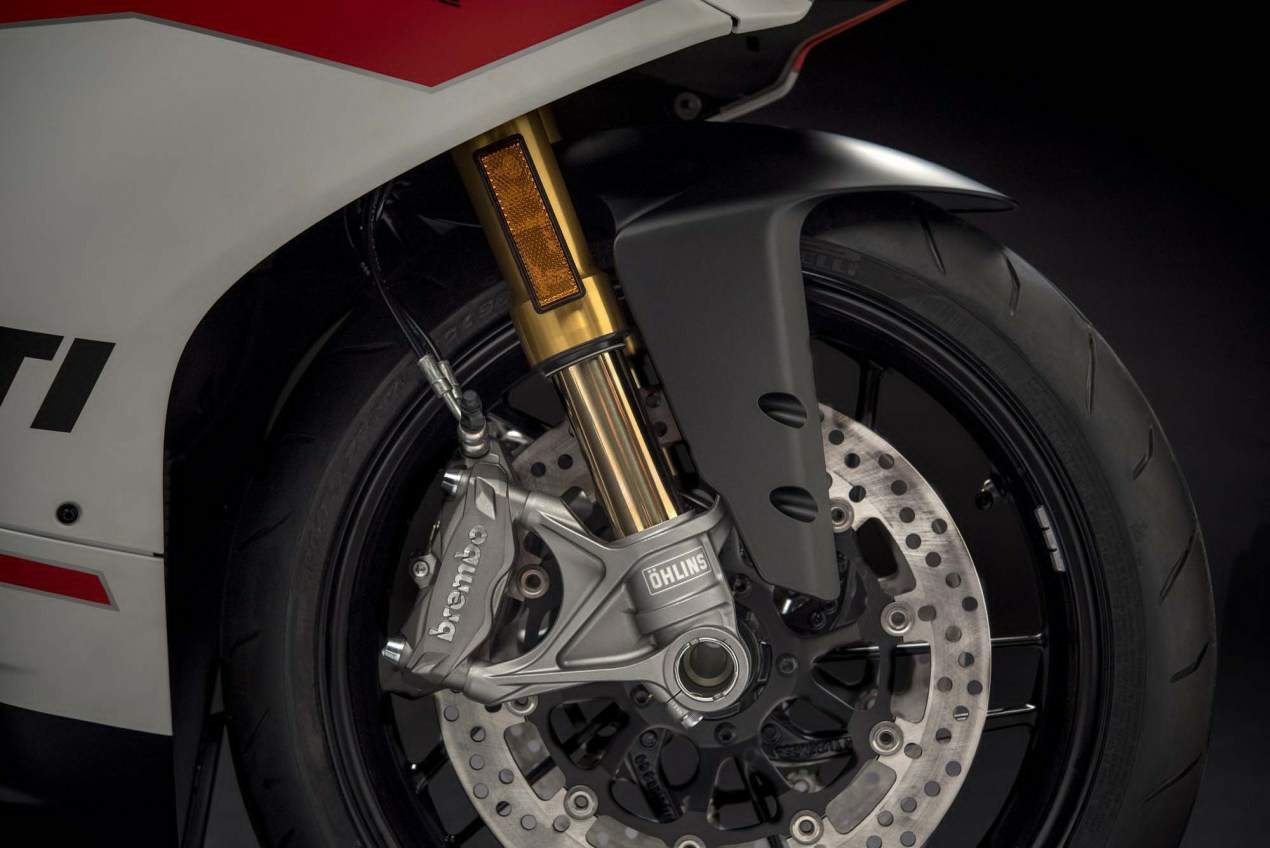

Front Suspension:	Fully adjustable Öhlins NIX30 with TiN treatment.
Front Wheel Travel:	120 mm / 4.72 in
Rear Suspension:	Fully adjustable Öhlins TTX36 unit. Aluminum double-sided swingarm
Rear Wheel Travel:	130 mm / 5.12 in
Front Brakes:	2x 320 mm discs, twin radially-mounted M4.32 Brembo monobloc calipers actuated by master cylinders, ABS
Rear Brakes:	Single 245 mm disc, single Brembo caliper, ABS
Front Wheel:	10 Spoke, 3.50 x 17 in
Rear Wheel:	10 Spoke, 5.00 x 17 in
