Technical specifications
|

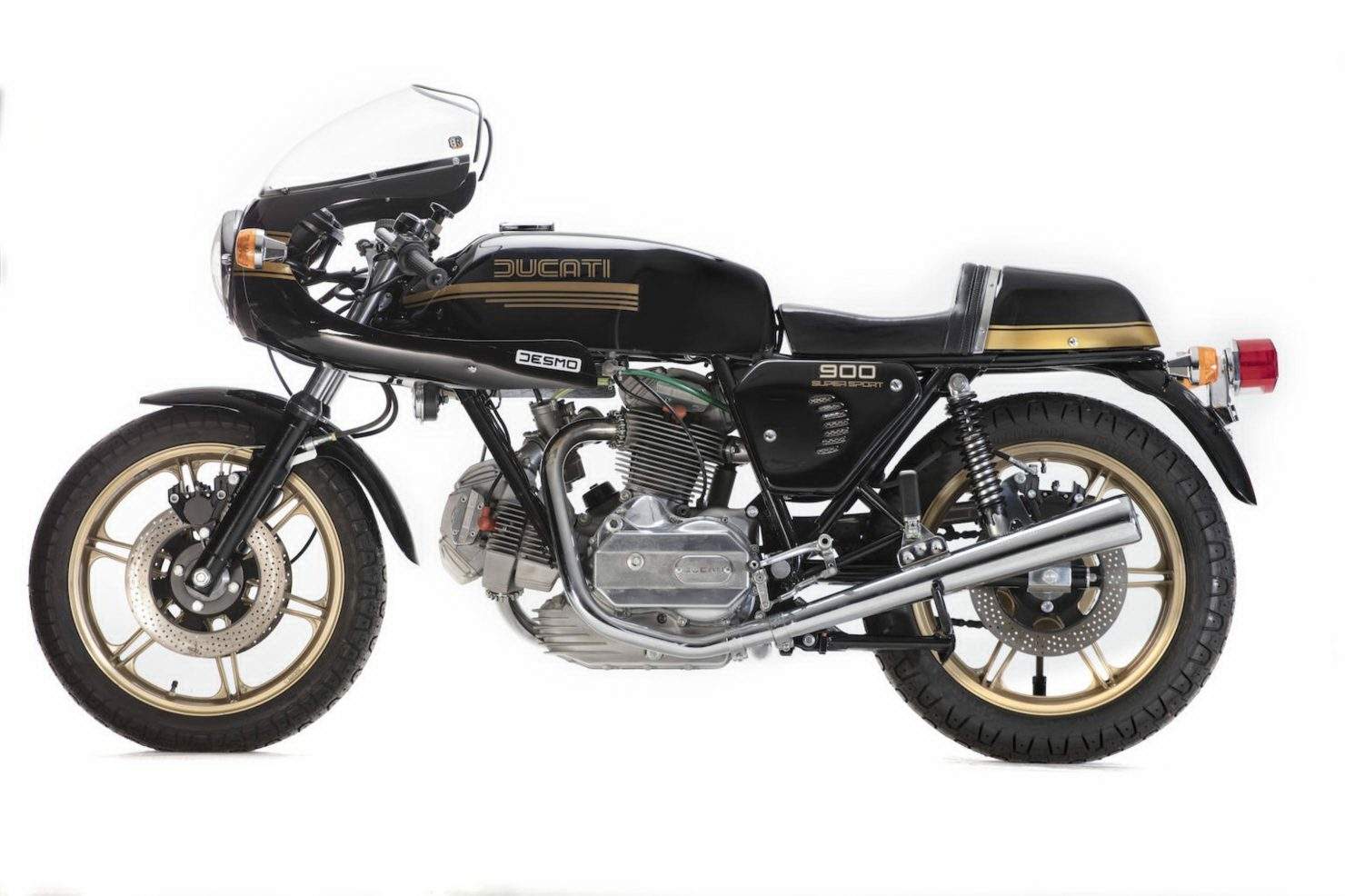

| Model: |
900 SS |
| Years: |
1979 |
|
Engine:
|
Four stroke, 90°“L”twin cylinder, SOHC, 2 valves per cylinder, bevel gear driven
|
|
Capacity:
|
864 cc / 52.7 cu in
|
|
Bore x Stroke:
|
86 x 74.4 mm
|
|
Compression Ratio:
|
9.4:1
|
|
Cooling System:
|
Air cooled
|
|
Induction:
|
2 x Dell'Orto PHF 32C carburetors
|
|
Spark Plugs:
|
Bosch WM7B
|
|
Ignition:
|
Electronic
|
|
Battery:
|
Yuasa B68 36Ah
|
|
Starting:
|
Electric
|
|
Max Power:
|
47.8 kW / 65 hp @ 7500 rpm
|
|
Clutch:
|
Wet, multiplate
|
|
Transmission:
|
5 Speed
|
|
Primary Drive Ratio:
|
2.187:1 (32/70)
|
|
Gear Ratios:
|
1st 2.237 / 2nd 1.562 / 3rd 1.203 / 4th 1.000 / 5th 0.887
|
|
Final Drive Ratio:
|
2.400:1 (15/36)
|
|
Final Drive:
|
Chain
|
|
Front Suspension:
|
Marzocchi telescopic fork
|
|
Rear Suspension:
|
Marzocchi 330 mm dual shocks, 3-way adjustable
|
|
Front Brakes:
|
2 x 280 mm Disc, 1 piston caliper
|
|
Rear Brakes:
|
Single 280 mm disc
|
|
Front Wheel:
|
3.50 - 18
|
|
Rear Wheel:
|
4.25 - 18
|
|
Dimensions:
|
Length: 2260 mm / 88.9 in Width: 700 mm / 27.6 in Height: 1280 mm / 50.4 in
|
|
Wheelbase:
|
1550 mm / 61.0 in
|
|
Seat Height:
|
740 mm / 29.1 in
|
|
Dry Weight:
|
216 kg / 476 lbs
|
|
Wet Weight:
|
224 kg / 494 lbs
|
|
Braking: 100 km/h - 0:
|
39 m / 128 ft
|
|
Fuel Capacity:
|
15 L / 4.0 US gal / 3.3 Imp gal
|
|
Top Speed:
|
205 km/h / 127 mph
|
|
Manual:
|
Bevelheaven.com
|
|
Road Test:
|
BIKE 1978 Ducati 900SS vs Le Mans III
|
