Ducati 900 SS (1977) technical specifications

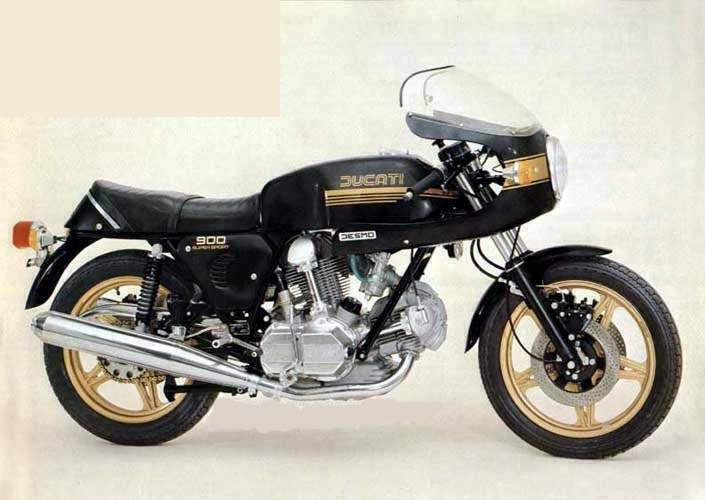

Ducati 900 SS technical specifications

Ducati 900 SS is produced in 1977. Engine is Four stroke, 90°“L”twin cylinder, SOHC, 2 valves per cylinder, bevel gear driven, displacement 864 cc / 52.7 cu in , produces power 49.2 kW / 67 hp @ 7500 rpm. Ducati 900 SS top speed is 217 km/h / 135 mph. Ducati 900 SS weighs 188 kg / 414 lbs. Ducati 900 SS has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: 900 SS
Years: 1977
Engine: Four stroke, 90°“L”twin cylinder, SOHC, 2 valves per cylinder, bevel gear driven
Capacity: 864 cc / 52.7 cu in
Bore x Stroke: 86 x 74.4 mm
Compression Ratio: 9.5:1
Cooling System: Air cooled
Induction: 2 x Dell'Orto PHM 40 A, B or C carburetors
Spark Plugs: Champion L81 / L82Y / L88A / Bosch WM7B
Ignition: Electronic
Battery: Yuasa 12N/12A-4A-12V
Starting: Kick (electric as an option)
Max Power: 49.2 kW / 67 hp @ 7500 rpm
Clutch: Wet, multiplate
Transmission: 5 Speed
Primary Drive Ratio: 2.187:1 (32/70)
Gear Ratios: 1st 2.237 / 2nd 1.562 / 3rd 1.203 / 4th 1.000 / 5th 0.887
Final Drive Ratio: 2.312:1 (16/37)
Final Drive: Chain
Front Suspension: 38 mm Marzocchi fork
Rear Suspension: Marzocchi 310 mm dual shocks, 3-way adjustable
Front Brakes: 2 x 280mm Disc, 1 piston caliper
Rear Brakes: Single 229 mm disc
Front Wheel: 3.50 - 18
Rear Wheel: 4.00 - 18
Dimensions: Length: 2200 mm / 86.6 in Width: 675 mm / 26.6 in Height: 1050 mm / 41.3 in
Wheelbase: 1500 mm / 59.0 in
Seat Height: 760 mm / 29.9 in
Dry Weight: 188 kg / 414 lbs
Fuel Capacity: 20 L / 5.3 US gal / 4.4 Imp gal
Standing ¼ Mile: 12.6 sec
Top Speed: 217 km/h / 135 mph
Manual: Bevelheaven.com
Road Test: BIKE 1978
