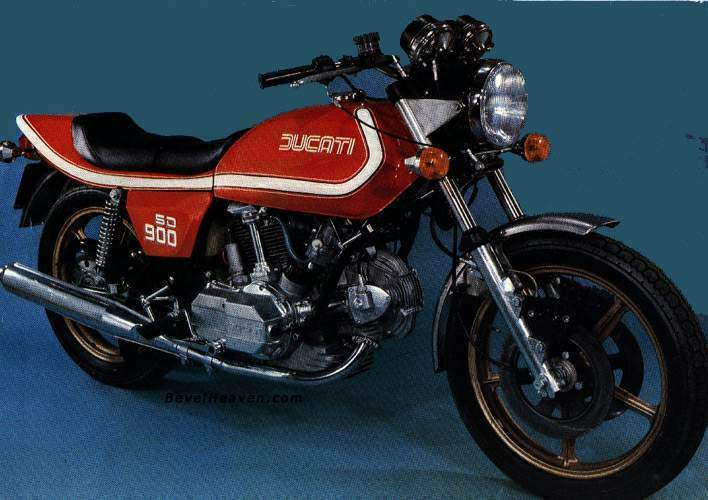

Ducati 900 SD Darmah (1977-78) technical specifications
Ducati 900 SD Darmah is produced in 1977-78. Engine is Four stroke, 90°“L”twin cylinder, SOHC, 2 valves per cylinder, bevel gear driven, displacement 864 cc / 52.7 cu in , produces power 47.8 kW / 65 hp @ 7500 rpm. Ducati 900 SD Darmah top speed is 185 km/h / 114 mph. Ducati 900 SD Darmah weighs 216 kg / 476 lbs. Ducati 900 SD Darmah has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | 900 SD Darmah |
| Years: | 1977-78 |
| Engine: | Four stroke, 90°“L”twin cylinder, SOHC, 2 valves per cylinder, bevel gear driven |
| Capacity: | 864 cc / 52.7 cu in |
| Bore x Stroke: | 86 x 74.4 mm |
| Compression Ratio: | 9.4:1 |
| Cooling System: | Air cooled |
| Induction: | 2 x Dell'Orto PHM 40 A, B or C carburetors |
| Spark Plugs: | Champion L88A / Bosch WM7B |
| Ignition: | Electronic |
| Battery: | Yuasa B68 36Ah |
| Starting: | Electric and Kick |
| Max Power: | 47.8 kW / 65 hp @ 7500 rpm |
| Clutch: | Wet, multiplate |
| Transmission: | 5 Speed |
| Primary Drive Ratio: | 2.187:1 (32/70) |
| Gear Ratios: | 1st 2.237 / 2nd 1.562 / 3rd 1.203 / 4th 1.000 / 5th 0.887 |
| Final Drive Ratio: | 2.533:1 (15/38) |
| Final Drive: | Chain |
| Front Suspension: | 38 mm Ceriani 608 telescopic fork |
| Rear Suspension: | Marzocchi 300 mm dual shocks, 3-way adjustable |
| Front Brakes: | 2 x 280 mm Disc, 1 piston caliper |
| Rear Brakes: | Single 260 mm disc |
| Front Wheel: | 3.50 - 18 |
| Rear Wheel: | 4.25 - 18 |
| Dimensions: | Length: 2260 mm / 88.9 in Width: 780 mm / 30.7 in Height: 1090 mm / 42.9 in |
| Wheelbase: | 1550 mm / 61.0 in |
| Seat Height: | 780 mm / 30.7 in |
| Dry Weight: | 216 kg / 476 lbs |
| Wet Weight: | 224 kg / 494 lbs |
| Braking: 100 km/h - 0: | 39 m / 128 ft |
| Fuel Capacity: | 15 L / 4.0 US gal / 3.3 Imp gal |
| Consumption Average: | 5.2 L/100 km / 19.1 km/l / 45 US mpg / 54.0 Imp mpg |
| Standing ¼ Mile: | 13.6 sec / 159 km/h / 98.8 mph |
| Top Speed: | 185 km/h / 114 mph |
| Manual: | Bevelheaven.com |
| Road Test: | Bike 1980 |
