Ducati 749 (2005) technical specifications

Ducati 749 technical specifications

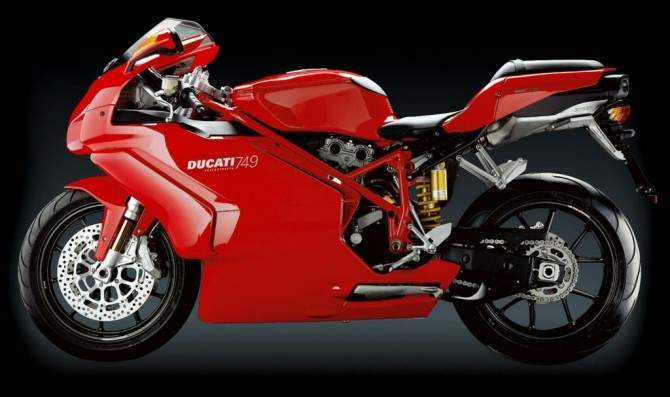

Ducati 749 is produced in 2005. Engine is Four stroke, 90°“L”twin cylinder, DOHC, desmodromic 4 valve per cylinder., displacement 748.4 cc / 45.7 cu in , produces power 79.4 kW / 108 hp @ 10000 rpm and 80.4 Nm / 8.2 kgf-m / 59.3 ft-lb @ 8500 rpm. Ducati 749 top speed is 240 km/h / 149 mph. Ducati 749 weighs 188 kg / 416 lbs. Ducati 749 has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: 749
Years: 2005
Engine: Four stroke, 90°“L”twin cylinder, DOHC, desmodromic 4 valve per cylinder.
Capacity: 748.4 cc / 45.7 cu in
Bore x Stroke: 90 x 58.8 mm
Cooling System: Liquid cooled
Compression Ratio: 11.7:1
Lubrication: Wet sump
Engine Oil: Synthetic, 10W/40
Exhaust: Single steel muffler with catalytic converter
Induction: Marelli electronic fuel injection, 54 mm throttle body
Ignition: Digital CDI
Spark Plug: Champion, RA6HC, NGK CR9VX
Starting: Electric
Max Power: 79.4 kW / 108 hp @ 10000 rpm
Max Torque: 80.4 Nm / 8.2 kgf-m / 59.3 ft-lb @ 8500 rpm
Clutch: Dry multiplate with hydraulic control
Transmission: 6 Speed
Primary Drive Ratio: 1.84:1 (32/59)
Gear Ratios: 1st 2.466 / 2nd 1.765 / 3rd 1.400 / 4th 1.182 / 5th 1.043 / 6th 0.958:1
Final Drive Ratio: 2.78:1 (14/39)
Final Drive: Chain
Frame: Tubular ALS450 steel trellis
Front Suspension: Showa 43mm fully-adjustable upside-down fork with TiN
Front Wheel Travel: 125 mm / 4.9 in
Rear Suspension: Progressive linkage with fully-adjustable Showa monoshock
Rear Wheel Travel: 128 mm / 5.0 in
Front Brakes: 2 x 320mm Disc, 4 piston calipers
Rear Brakes: Single 245 mm disc, 2 piston caliper
Front Wheel: New Y-shaped 5 spoke design light alloy, 3.50 x 17
Rear Wheel: New Y-shaped 5 spoke design light alloy, 5.50 x 17
Front Tyre: 120/70 ZR17
Rear Tyre: 180/55 ZR17
Rake: 24.5°
Trail: 97 mm / 3.8 in
Dimensions: Length: 2095 mm / 82.5 in Width: 730 mm / 28.7 in Height: 1090 mm / 42.9 in
Wheelbase: 1420 mm / 55.9 in
Seat Height: 780 mm / 30.7 in
Dry Weight: 188 kg / 416 lbs
Fuel Capacity: 15.5 L / 4.1 US gal / 3.4 Imp gal
Reserve: 3.0 L / 0.8 US gal / 0.7 Imp gal
Consumption Average: 5.6 L/100 km / 18 km/l / 42.3 US mpg / 50.8 Imp mpg
Braking 60 km/h - 0: 12.0 m / 39.4 ft
Braking 100 km/h - 0: 37.5 m / 123.0 ft
Standing ¼ Mile: 11.2 sec / 203 km/h / 126 mph
Top Speed: 240 km/h / 149 mph
Instrumentation: Speedometer, rev counter, high beam indicator, turn signals, oil pressure warning light, low fuel warning light, neutral light, water temperature, Immobilizer
