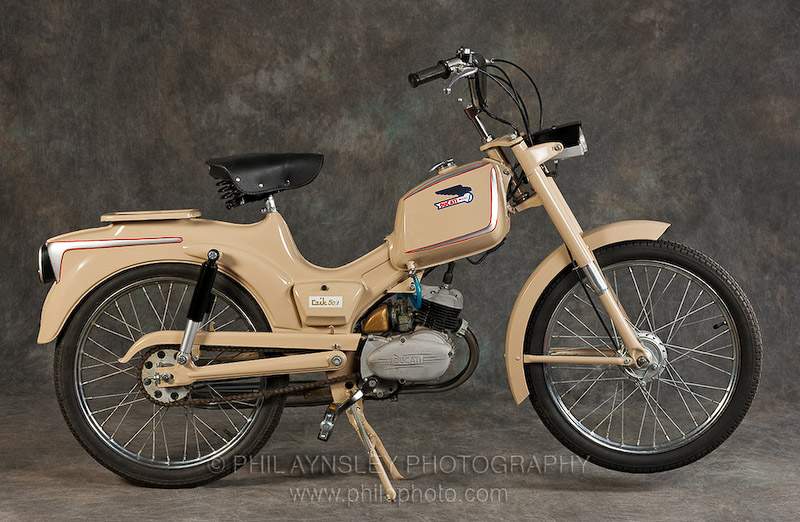

Ducati 48/1 & 50/1 Brisk (1961-1967) technical specifications
Ducati 48/1 & 50/1 Brisk is produced in 1961-1967. Engine is Two-stroke, single cylinder, piston port, displacement 47.6 cc / 2.9 cu in , produces power 1.0 kW / 1.34 hp @ 4200 rpm (from 1963: 1.1 kW / 1.5 hp @ 5200 rpm). Ducati 48/1 & 50/1 Brisk top speed is 40 km/h / 25 mph. Ducati 48/1 & 50/1 Brisk weighs 48/1: 45 kg / 99 lbs 50/1: 50 kg / 110 lbs. Ducati 48/1 & 50/1 Brisk has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | 48/1 & 50/1 Brisk |
| Years: | 1961-1967 |
| Engine: | Two-stroke, single cylinder, piston port |
| Capacity: | 47.6 cc / 2.9 cu in |
| Bore x Stroke: | 38 x 42 mm |
| Compression Ratio: | 6.3:1 (from 1963: 7:1) |
| Cooling System: | Air cooled |
| Induction: | Dell'Orto T4 12D1 |
| Spark Plug: | Marelli CW 225N |
| Ignition: | 6V 18W flywheel magneto |
| Starting: | Kick |
| Max Power: | 1.0 kW / 1.34 hp @ 4200 rpm (from 1963: 1.1 kW / 1.5 hp @ 5200 rpm) |
| Clutch: | Wet, multiplate |
| Transmission: | Single speed |
| Final Drive: | Chain |
| Frame: | Pressed steel |
| Front Suspension: | Telescopic fork |
| Rear Suspension: | Swingarm, dual shocks |
| Front Brakes: | Drum, 90 mm |
| Rear Brakes: | Drum, 90 mm |
| Front Wheel: | 2.00 x 18 |
| Rear Wheel: | 2.00 x 18 |
| Dry Weight: | 48/1: 45 kg / 99 lbs 50/1: 50 kg / 110 lbs |
| Top Speed: | 40 km/h / 25 mph |
