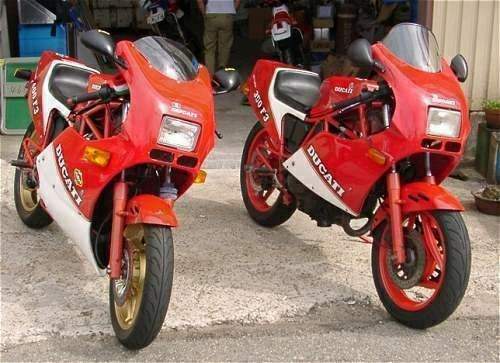

Ducati 400F3 (1986) technical specifications

Ducati 400F3 is produced in 1986. Engine is Four stroke, 90°“L” twin cylinder, Desmo SOHC, belt-driven, displacement 398 cc / 24.3 cu in , produces power 34.6 kW / 47 hp @ 10000 rpm and 26.5 Nm / 2.7 kgf-m / 19.5 ft-lb @ 7500 rpm. Ducati 400F3 top speed is 175 km/h / 108.7 mph. Ducati 400F3 weighs 180 kg / 397 lbs. Ducati 400F3 has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	400F3
Years:	1986
Engine:	Four stroke, 90°“L” twin cylinder, Desmo SOHC, belt-driven
Capacity:	398 cc / 24.3 cu in
Bore x Stroke:	70.5 x 51mm
Compression Ratio:	10.4:1
Cooling System:	Air cooled
Induction:	Dell'Orto PHF30M carburetor (1988: PHF36)
Spark Plug:	Champion L82YC
Ignition:	Electronic ignition, Bosch BTZ
Starting:	Electric
Battery:	Yuasa 12V 14Ah
Max Power:	34.6 kW / 47 hp @ 10000 rpm
Max Torque:	26.5 Nm / 2.7 kgf-m / 19.5 ft-lb @ 7500 rpm
Clutch:	Wet multiplate
Transmission:	5-speed (1988:) 6 Speed
Primary Drive:	2.226:1 (31/69)
Gear Ratios:	1986-87: 1st 2.500 / 2nd 1.714 / 3rd 1.333 / 4th 1.074 / 5th 0.931:1
Final Drive:	Chain
Front Suspension:	35 mm Marzocchi fork
Rear Suspension:	Single adjustable shock, Boge
Front Brakes:	2 x 260mm discs
Rear Brakes:	Single 260 mm disc
Front Tyre:	100/90-18
Rear Tyre:	120/80-18
Dimensions:	Length: 2050 mm / 80.7 in Width: 670 mm / 26.4 in Height: 900 mm / 35.4 in
Wheelbase:	1400 mm / 55.1 in
Seat Height:	750 mm / 29.5 in
Dry Weight:	180 kg / 397 lbs
Fuel Capacity:	1986: 22L / 5.8 US gal / 4.8 Imp gal 1987 - 88: 18 L / 4.8 US gal / 4.0 Imp gal
Top Speed:	175 km/h / 108.7 mph
