Ducati 350GTV (1977-81) technical specifications

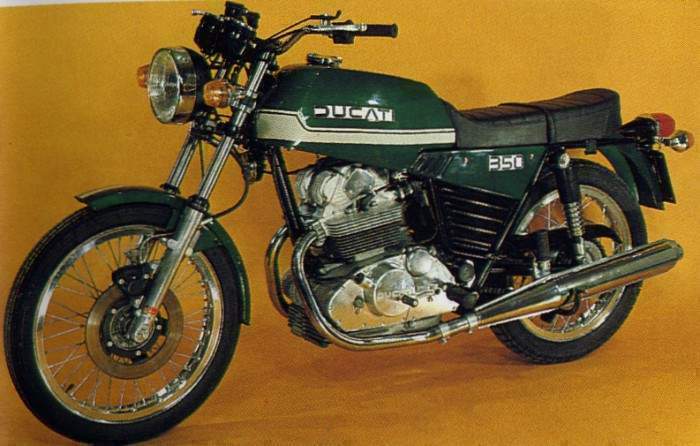

Ducati 350GTV is produced in 1977-81. Engine is Four stroke, parallel twin cylinder, SOHC, 2 valves per cylinder., displacement 349.6 cc / 21.3 cu in , produces power 17.5 kW / 24 hp @ 7500 rpm. Ducati 350GTV weighs 181 kg / 399 lbs. Ducati 350GTV has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | 350GTV |
| Years: | 1977-81 |
| Engine: | Four stroke, parallel twin cylinder, SOHC, 2 valves per cylinder. |
| Capacity: | 349.6 cc / 21.3 cu in |
| Bore x Stroke: | 71.8 x 43.2 mm |
| Compression Ratio: | 9.6:1 |
| Cooling System: | Air cooled |
| Induction: | 2 x 26 mm Dell'Orto VHB 26 FS/FD |
| Ignition: | Points and coil, 12V 150W generator |
| Spark Plug: | Champion L81 |
| Battery: | 12V 18Ah Yuasa Y50-N18L-A1 |
| Starting: | Electric |
| Max Power: | 17.5 kW / 24 hp @ 7500 rpm |
| Clutch: | Wet, multi-plate |
| Transmission: | 5-Speed |
| Primary Drive Ratio: | 2.125:1 |
| Gear Ratios: | 1st 2.500 / 2nd 1.714 / 3rd 1.333 / 4th 1.074 / 5th 0.900:1 |
| Final Drive Ratio: | 2.923:1 |
| Final Drive: | Chain |
| Front Suspension: | 35 mm Paioli fork |
| Rear Suspension: | Dual Marzocchi shocks, 3-way adjustable |
| Front Brakes: | 2 x 256 mm Brembo discs |
| Rear Brakes: | Single 257mm Brembo disc |
| Front Tyre: | 3.25-18 |
| Rear Tyre: | 3.50-18 |
| Dimensions: | Length: 2050 mm / 80.7 in Width: 760 mm / 29.9 in Height: 1060 mm / 41.7 in |
| Wheelbase: | 1400 mm / 55.1 in |
| Seat Height: | 760 mm / 29.9 in |
| Dry Weight: | 181 kg / 399 lbs |
| Fuel Capacity: | 14 L / 3.7 US gal / 3.1 Imp gal |
| Manual: | Bevelheaven.com / Epll.no-ip.com |
| Review: | Trade Motorcycles |
