Ducati 250 Scrambler (1967-75) technical specifications

Ducati 250 Scrambler technical specifications

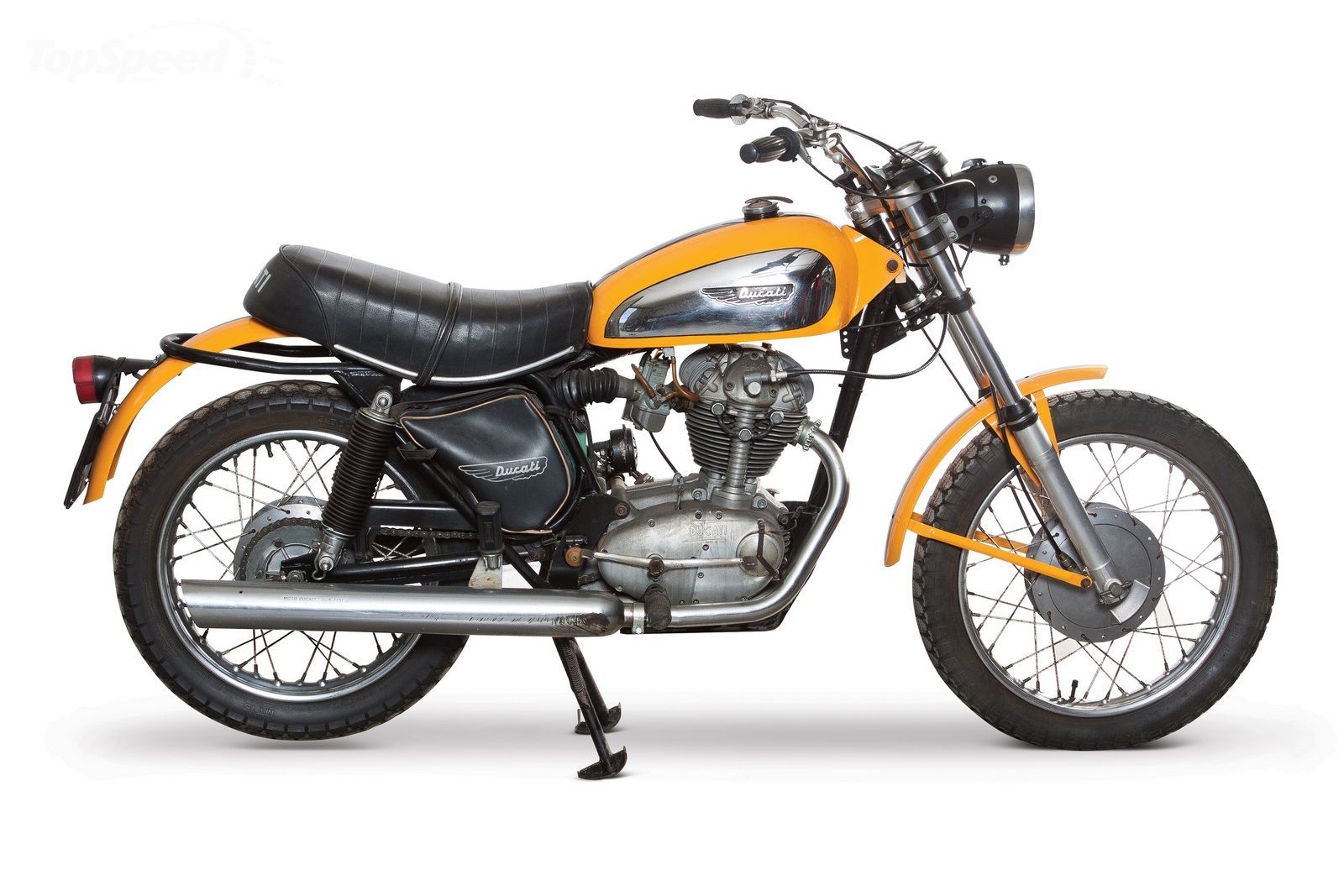

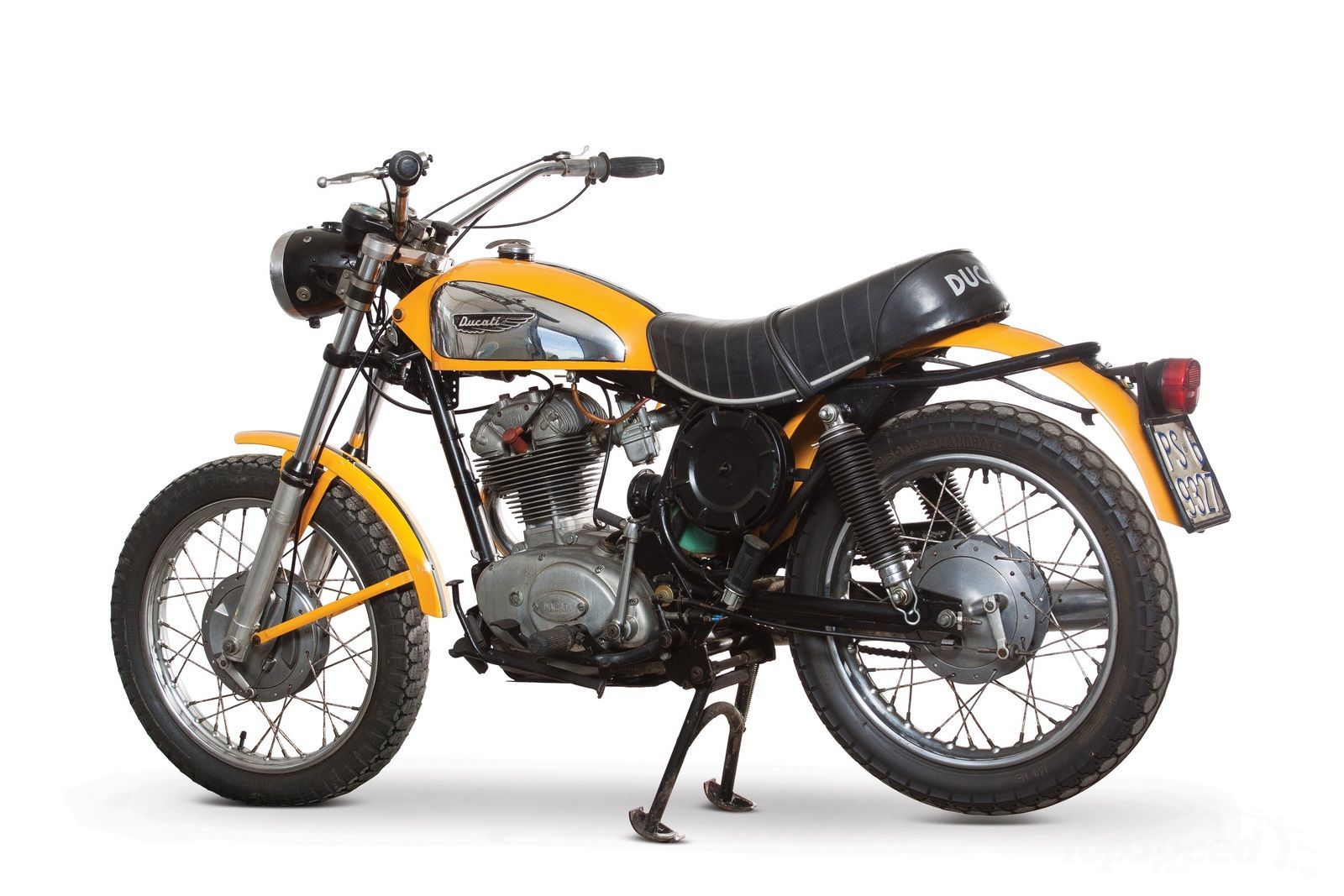

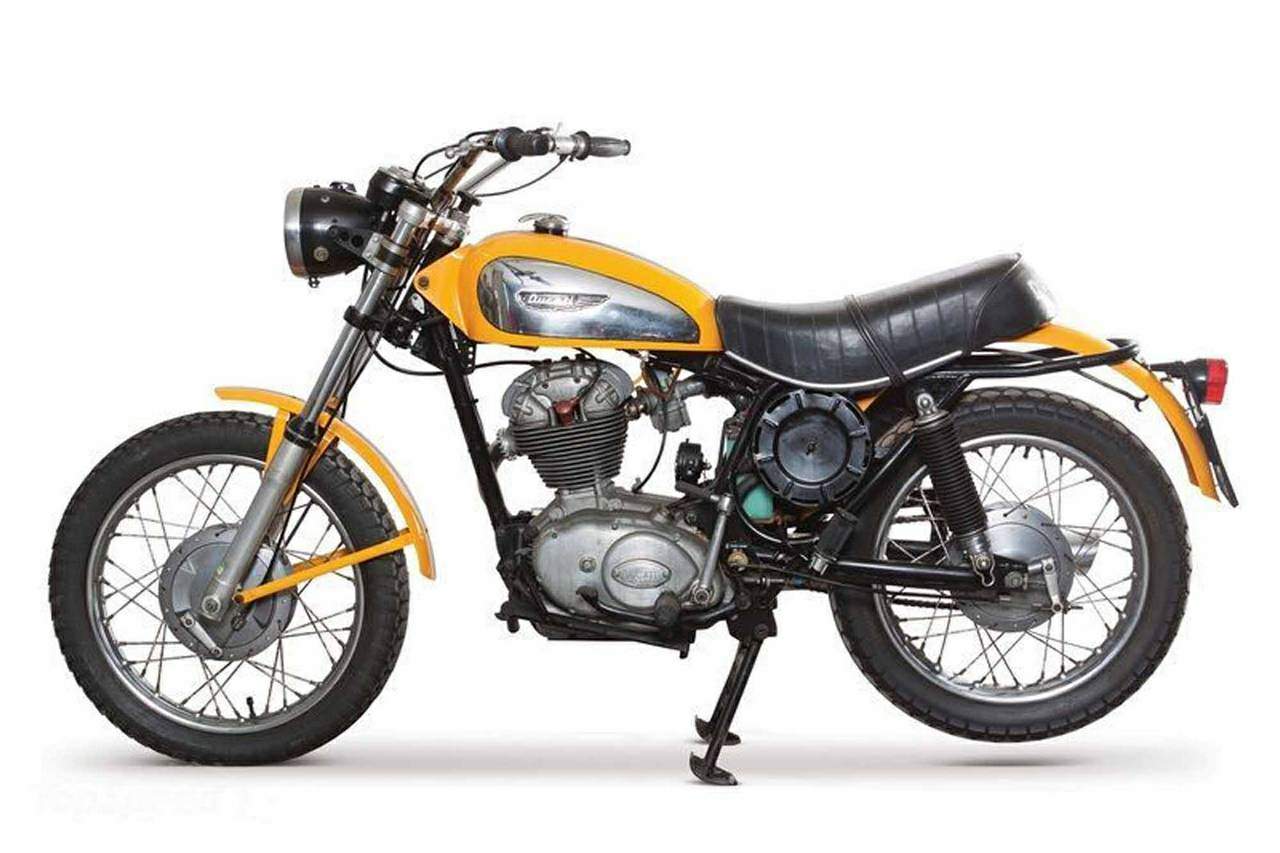

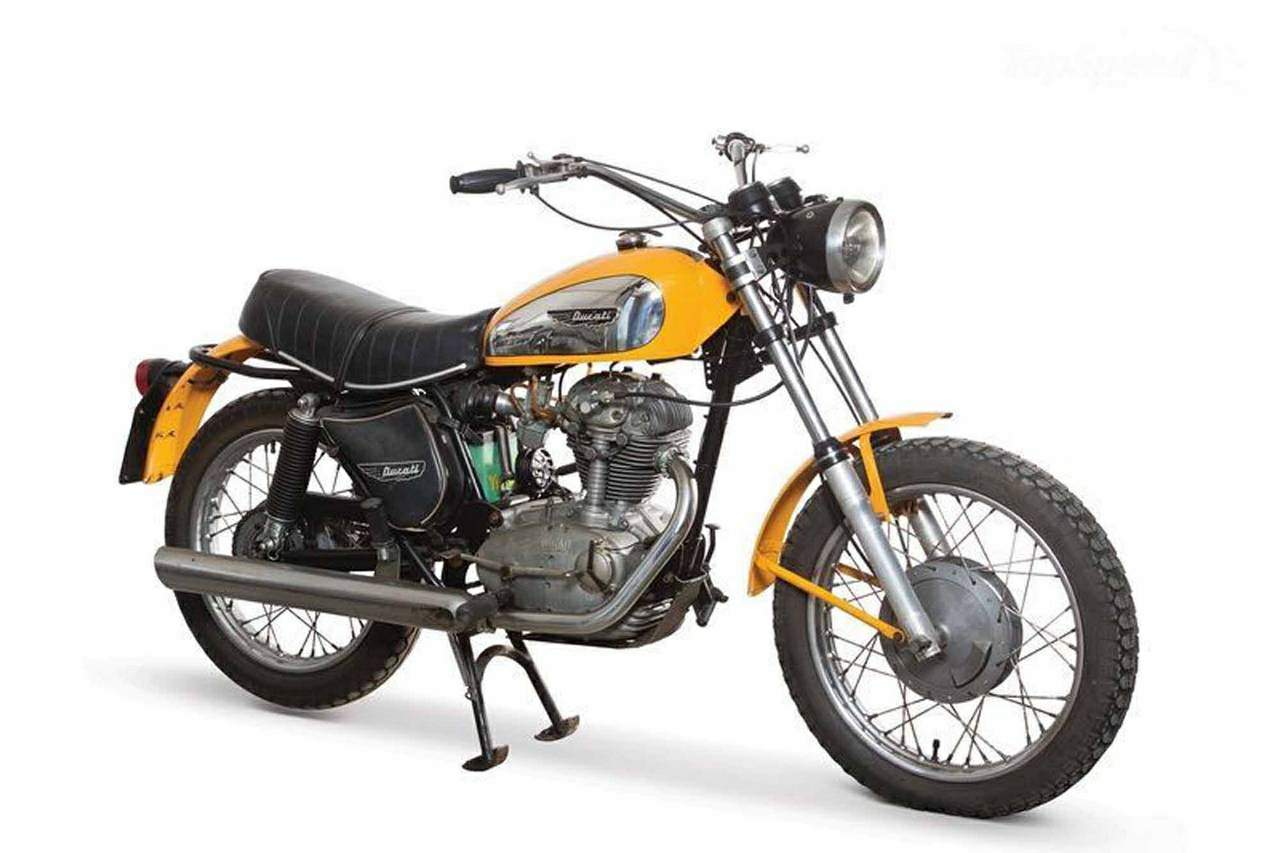

Ducati 250 Scrambler is produced in 1967-75. Engine is Four stroke, single cylinder, Desmo SOHC, 2 valve, bevel gear-driven, displacement 248.6 cc / 15.2 cu-in , produces power 14.1 kW / 19 hp @ 7500 rpm. Ducati 250 Scrambler weighs 132 kg / 291 lbs. Ducati 250 Scrambler has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: 250 Scrambler
Years: 1967-75
Engine: Four stroke, single cylinder, Desmo SOHC, 2 valve, bevel gear-driven
Capacity: 248.6 cc / 15.2 cu-in
Bore x Stroke: 74 x 57.8 mm
Cooling System: Air cooled
Compression Ratio: 9.2:1
Induction: 1967-69:Dell'Orto SS1 27D 1970-72: Dell'Orto VHB26BD 1973-75: Amal 27 mm
Ignition: Points and coil, 6V 30W generator
Battery: SAFA 3L3 13.5 Ah
Starting: Kick
Max Power: 14.1 kW / 19 hp @ 7500 rpm
Clutch: Wet, multiplate
Primary Drive Ratio: 2.500:1
Transmission: 5 Speed
Gear Ratios: 1st 2.46 / 2nd 1.73 / 3rd 1.35 / 4th 1.10 / 5th 0.97:1
Final Drive: Chain
Final Drive Ratio: 3.000:1
Frame: Highly resistant tubular steel frame
Front Suspension: Marzocchi hydraulic telescopic fork, 35 mm
Rear Suspension: Swingarm, Marzocchi dual shocks, 3-way adjustable
Front Brakes: 180mm Drum
Rear Brakes: 160mm Drum
Front Tyre: 3.50-19, Pirelli
Rear Tyre: 4.00-18, Pirelli
Dimensions: Length: 2120 mm / 83.5 in Width: 940 mm / 37.0 in Height: 1150 mm / 45.3 in
Wheelbase: 1380 mm / 54.3 in
Seat Height: 770 mm / 30.3 in
Dry Weight: 132 kg / 291 lbs
Fuel Capacity: 11 Litres / 2.9 US gal / 2.4 Imp gal
