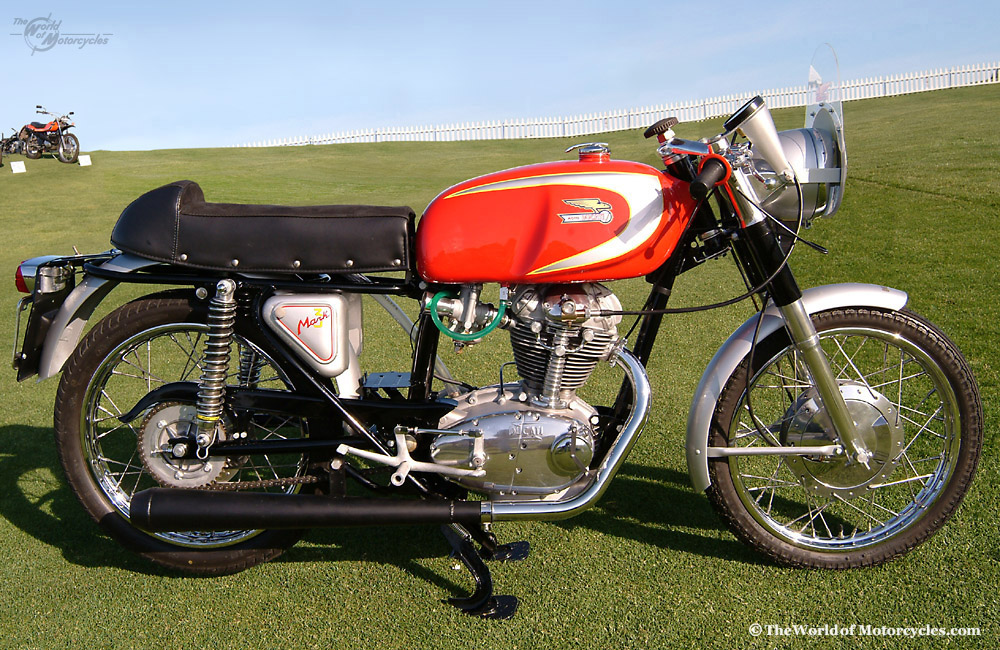

Ducati 250 Mark 3 (1964-67) technical specifications
Ducati 250 Mark 3 is produced in 1964-67. Engine is Four stroke, single cylinder, Desmo SOHC, bevel gear-drive, displacement 248.6 cc / 15.2 cu in , produces power 22.4 kW / 30 hp @ 8000 rpm. Ducati 250 Mark 3 top speed is 177 km/h / 110 mph. Ducati 250 Mark 3 weighs 1964: 110 kg / 243 lbs 1965 onwards: 112 kg / 247 lbs. Ducati 250 Mark 3 has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | 250 Mark 3 |
| Years: | 1964-67 |
| Engine: | Four stroke, single cylinder, Desmo SOHC, bevel gear-drive |
| Capacity: | 248.6 cc / 15.2 cu in |
| Bore x Stroke: | 74 x 57.8 mm |
| Compression Ratio: | 10:1 |
| Cooling System: | Air cooled |
| Induction: | 1964: Dell'Orto SS1 27A carburetor 1965 onwards: Dell'Orto SS1 29A carburetor |
| Ignition: | 1964-66: 6V 60W generator 1967: 6V 60W |
| Spark Plug: | Marelli CW260N |
| Starting: | Kick |
| Max Power: | 22.4 kW / 30 hp @ 8000 rpm |
| Clutch: | Wet, multi-plate |
| Primary Drive Ratio: | 2.500:1 |
| Transmission: | 5 Speed |
| Gear Ratios: | 1st 2.53 / 2nd 1.73 / 3rd 1.35 / 4th 1.10 / 5th 0.97:1 |
| Final Drive: | Chain |
| Final Drive Ratio: | 1964: 18/43 1965 onwards: 18/40 |
| Frame: | Single downtube, open frame with large diameter backbone tube |
| Front Suspension: | Hydraulic telescopic fork, Ducati 31.5 mm |
| Rear Suspension: | Swingarm, dual shocks, Marzocchi |
| Front Brakes: | Drum, 180 mm |
| Rear Brakes: | Drum, 160 mm |
| Front Tyre: | 2.50-18 |
| Rear Tyre: | 2.750-18 |
| Dimensions: | Length: 2000 mm / 78.7 in Height 1964 : 1090 mm / 42.9 in Height: 1965 onwards: 1070 m / 42.1 in |
| Wheelbase: | 1964: 1320 mm / 52 in 1965 onwards: 1350 mm / 53.1 in |
| Seat Height: | 750 mm / 29.5 in |
| Dry Weight: | 1964: 110 kg / 243 lbs 1965 onwards: 112 kg / 247 lbs |
| Fuel Capacity: | 13 L / 3.4 US gal / 2.9 Imp gal |
| Top Speed: | 177 km/h / 110 mph |
