Ducati 250 Formula 3 (1960-62) technical specifications

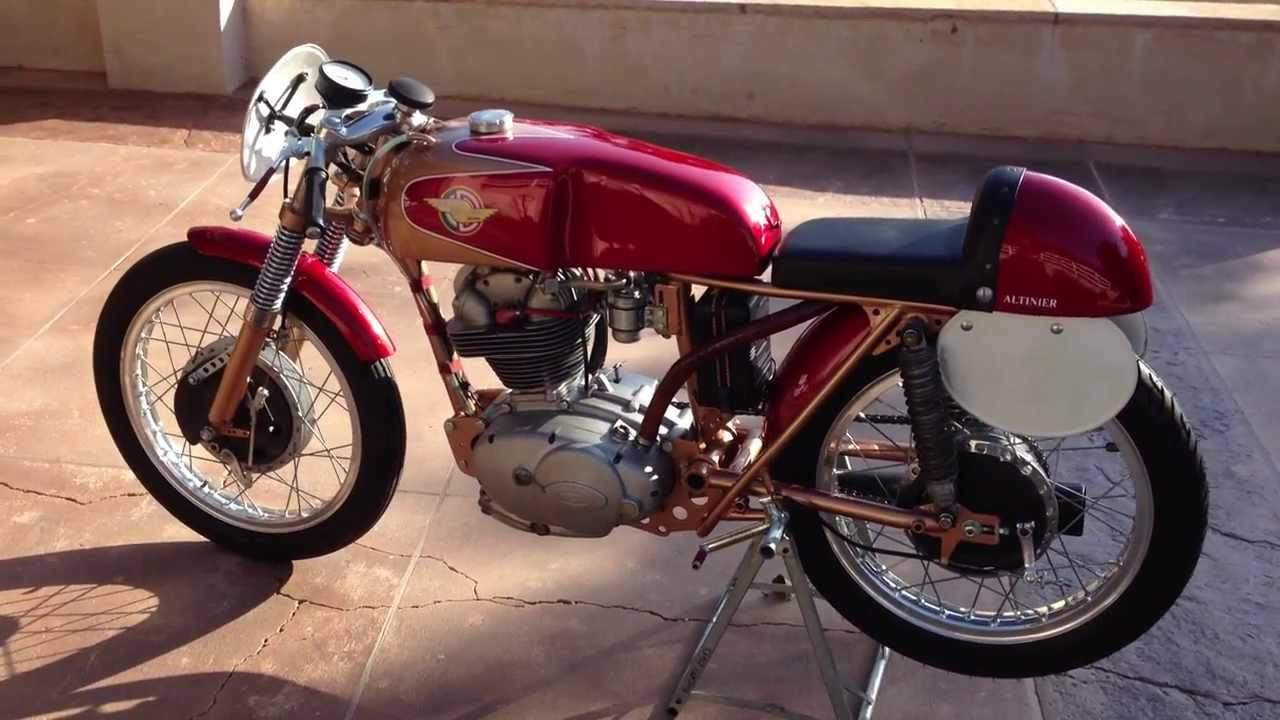

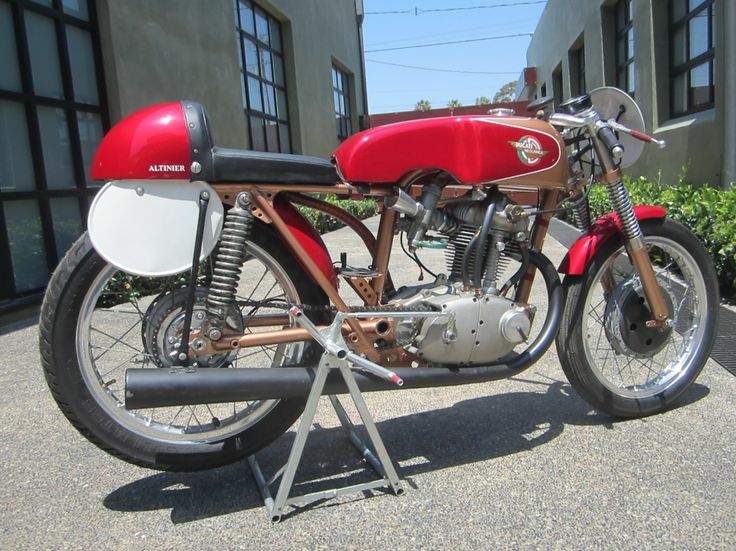

Ducati 250 Formula 3 is produced in 1960-62. Engine is Four stroke, single cylinder, SOHC, shaft and bevel gear driven, 2 valves per cylinder, displacement 248.6 cc / 15.2 cu in , produces power 17.2 kW / 23 hp @ 8200 rpm. Ducati 250 Formula 3 has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | 250 Formula 3 |
| Years: | 1960-62 |
| Engine: | Four stroke, single cylinder, SOHC, shaft and bevel gear driven, 2 valves per cylinder |
| Capacity: | 248.6 cc / 15.2 cu in |
| Bore x Stroke: | 74 x 57.8 mm |
| Compression Ratio: | 8.5:1 |
| Cooling System: | Air cooled |
| Induction: | Dell'Orto SS1 29A carburetor |
| Ignition: | Battery and coil |
| Starting: | Kick |
| Max Power: | 17.2 kW / 23 hp @ 8200 rpm |
| Clutch: | Multi wet plate, wet |
| Transmission: | 4 Speed |
| Final Drive: | Chain |
| Frame: | Single cradle tubular frame |
| Front Suspension: | Hydraulic telescopic fork |
| Rear Suspension: | Swingarm, dual shocks |
| Front Brakes: | Drum |
| Rear Brakes: | Drum |
| Front Tyre: | 2.50 -19 |
| Rear Tyre: | 2.75 -19 |
