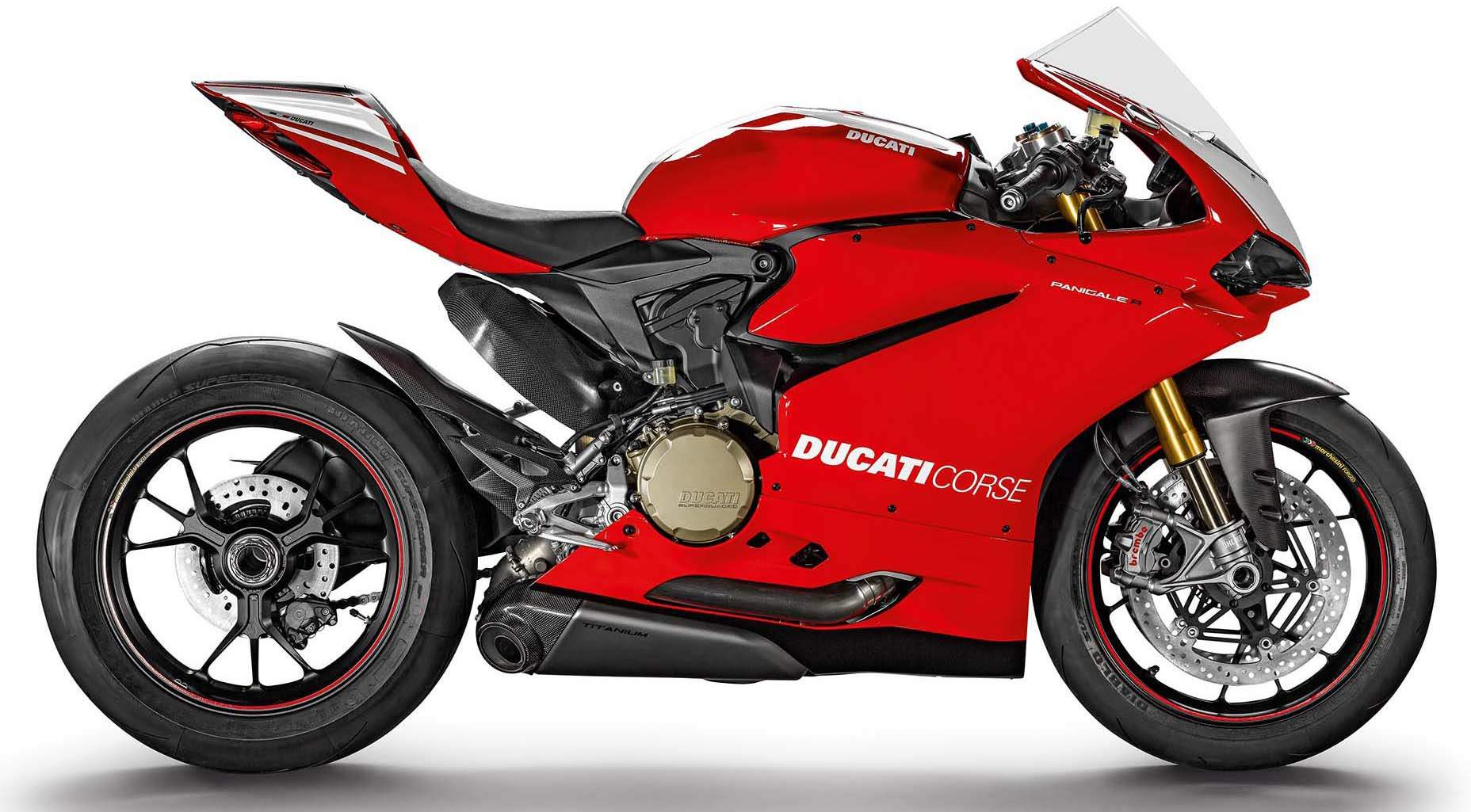

Ducati 1299R Panigale (2015) technical specifications

Ducati 1299R Panigale is produced in 2015. Engine is Fourstroke, 90° “L” twin cylinder, DOHC, desmodromic 4valve per cylinder. , displacement 1198cc / 73.1 cub in , produces power 143 kW / 195 hp @ 10750 rpm and 136 Nm / 13.9 kgf-m / 100.5 lb-ft @ 9000 rpm. Ducati 1299R Panigale weighs 162 kg / 357 lbs. Ducati 1299R Panigale has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	1299R Panigale
Years:	2015
Engine:	Fourstroke, 90° “L” twin cylinder, DOHC, desmodromic 4valve per cylinder.
Capacity:	1198cc / 73.1 cub in
Bore x Stroke:	112 x 60.8 mm
Cooling System:	Liquid cooled
Compression Ratio:	13.2:1
Lubrication:	Wet sump
Induction:	Mitsubishi EFI, twininjectors per cylinder, full ride-by-wire elliptical throttlebodies
Exhaust:	2-1-2 titanium system with stainless steelheaders, catalytic converter and 2 lambda probes. Twin titaniumsteel mufflers with carbon fibre end caps
Emissions:	Euro 3
Ignition :	Digital CDI
Starting:	Electric
Max Power:	143 kW / 195 hp @ 10750 rpm
Max Torque:	136 Nm / 13.9 kgf-m / 100.5 lb-ft @ 9000 rpm
Clutch:	Slipper and self-servo wet multiplate clutch with hydrauliccontrol
Transmission :	6Speed with Ducati Quick Shift
Final Drive:	Chain 525; frontsprocket 15, rear sprocket 41
Primary drive:	Straight cut gears,ratio 1.77:1
Gear Ratio:	1st 37/15 / 2nd 30/16 /3rd 27/18 / 4th 25/20 / 5th 24/22 / 6th 23/24
Frame:	Monocoque aluminum
Front Suspension:	Öhlins NIX30, 43mm fully adjustable USDfork with TiN treatment.
Front Wheel Travel:	120mm / 4.72 in
Rear Suspension:	Fully adjustableÖhlins TTX36 unit. Electronic compression and rebound dampingadjustment. Adjustable linkage: Progressive/flat. Aluminumsingle-sided swingarm, 4-point adjustable pivot.
Rear Wheel Travel:	130mm / 5.12in
Front Brakes:	2 x 330 mm Semi-floatingdiscs, radially mounted Brembo Monobloc EVO M50 4-piston caliperswith cornering ABS Bosch 9.1 MP
Rear Brakes:	Single 245 mm disc 2 piston caliper with corneringABS
Front Tyre:	120/70 ZR17 PirelliDiablo Supercorsa SP
Rear Tyre:	200/55 ZR17 Pirelli Diablo Supercorsa SP
Front wheel:	Marchesini 3-spokeforged light alloy 3.50" x 17"
Rear wheel:	Marchesini 3 spokeforged light alloy 6.00" x 17"
Rake:	24°
Trail:	96 mm / 3.78 in
Steering lock (total):	48°
Dimensions:	Length 2065 mm / 81.3 inHeight 1130 mm / 44.1 in
Wheelbase:	1442 mm / 56.77 in
Seat Height:	830 mm / 32.7in
Dry Weight:	162 kg / 357 lbs
Wet Weight:	184 kg / 406 lbs
Fuel Capacity :	17Litres / 4.5 gal
Instrumentation:	Digital unit with TFTcolour display: rev counter, speed, gear selected, odometer[Menù 1: trip 1, trip 2, trip fuel], coolant temp [Menù2: average and actual fuel comsumption, average speed, trip time,air temperature], lap times, selected Riding Mode, DTC level, EBClevel, DQS status, ABS level, DDA status (only if mounted), GPSstatus (only if mounted), SERVICE, diagnostic, clock, full statusand/or management of Riding Modes, ""Parking"" mode. Displaylay-out: ROAD/TRACK (integrated with Riding Modes). Displaybacklight colours: DAY/NIGHT (manual or auto selection). Warninglights: oil pressure, neutral, EOBD, turn signals, fuel reserve,high-beam, ABS (if oem), over rev, DTC intervention, immobilizer(in Key-off). DES control (Electronic Suspension). Light control:automatic shutdown while engine start, automatic shutdown after 60sfrom key-on without engine ignition. All functions integrated andmanaged by left and right handlebar switches
