Ducati 1199 Panigale SuperLeggera (2014) technical specifications

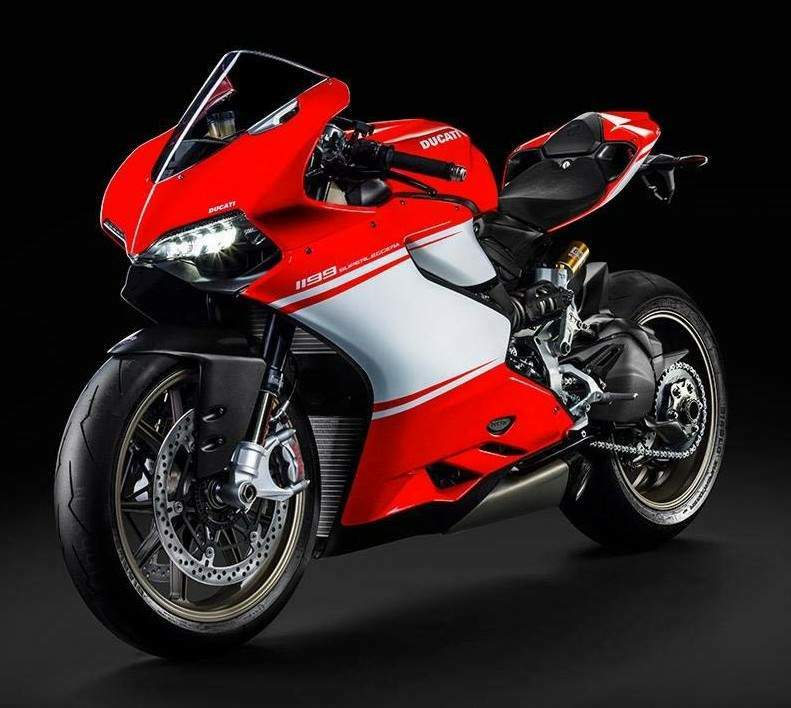

Ducati 1199 Panigale SuperLeggera is produced in 2014. Engine is Four stroke, 90° “L” twin cylinder, DOHC, desmodromic 4 titanium valves per cylinder, displacement 1199 cc / 71.2 cu in , produces power 149 kW / 200 hp / @ 11500 rpm and 134 Nm / 98.8 lb-ft / @ 10200rpm. Ducati 1199 Panigale SuperLeggera weighs 155 kg / 341.7 lbs. Ducati 1199 Panigale SuperLeggera has 8 photos.

Technical specifications

+ Add to 'Compare list'

Model:	1199 Panigale SuperLeggera
Years:	2014
Production:	500 Units
Engine:	Four stroke, 90° “L” twin cylinder, DOHC, desmodromic 4 titanium valves per cylinder
Capacity:	1199 cc / 71.2 cu in
Bore x Stroke:	112 x 60.8 mm
Cooling System:	Liquid cooled
Compression Ratio:	13.2:1
Fuel injection:	Mitsubishi electronic fuel injection system.Twin injectors per cylinder.Full ride-by-wire elliptical throttle bodies.
Exhaust:	2-1-2 system in titanium with catalytic converter and 2 lambda probes
Emissions:	Euro 3
Starting:	Electric
Max Power:	149 kW / 200 hp / @ 11500 rpm
Max Torque:	134 Nm / 98.8 lb-ft / @ 10200rpm
Transmission:	6 Speed
Gear Ratio:	1st 37/15 2nd 30/16 3rd 27/18 4th 25/20 5th 24/22 6th 23/24
Primary drive:	Straight cut gears, Ratio 1.77:1
Final drive:	Chain 520; Front sprocket 15; Rear sprocket 41
Clutch:	Slipper and self-servo wet multiplate clutch with hydraulic control
Frame:	Magnesium monocoque
Front Suspension:	Öhlins FL916 43mm with TiN, fully adjustable usd fork. Electronic compression and rebound damping adjustment
Front wheel travel:	120mm / 4.72in
Rear Suspension:	Fully adjustable Ohlins TTX36 unit with titanium spring. Electronic compression and rebound damping adjustment. Adjustable linkage: Progressive/flat. Aluminum single-sided swingarm. 4-point adjustable pivot.
Rear wheel travel:	130mm / 5.12in
Front Brakes:	2 x 330 mm Semi-floating discs, radially mounted Brembo Monobloc M50 4-piston calipers, Bosch 9ME ABS
Rear Brakes:	Single 245mm disc, 2-piston caliper
Front Wheel:	3-spoke forged in magnesium 3.50″ x 17″
Rear Wheel:	3 spoke forged in magnesium 6.00″ x 17″
Front Tyre:	120/70 ZR17 Pirelli Diablo Supercorsa SP
Rear Tyre:	200/55 ZR17 Pirelli Diablo Supercorsa SP
Dimensions:	Length 2075 mm / 81.69 in Height 1100 mm / 43.31in
Seat Height:	830 mm / 32.48 in
Dry Weight:	155 kg / 341.7 lbs
Wet Weight:	177 kg / 390.2 lbs
Fuel Capacity:	17 L / 4.5 US gal / 3.7 Imp gal
Additional Equipment:	Full race, titanium exhaust system by Akrapovič, dedicated dust cover, front & rear paddock stands, machined mirror fill-caps, removal kits for registration plate holder, sidestand.
