Ducati 1098 S (2008) technical specifications

Ducati 1098 S technical specifications

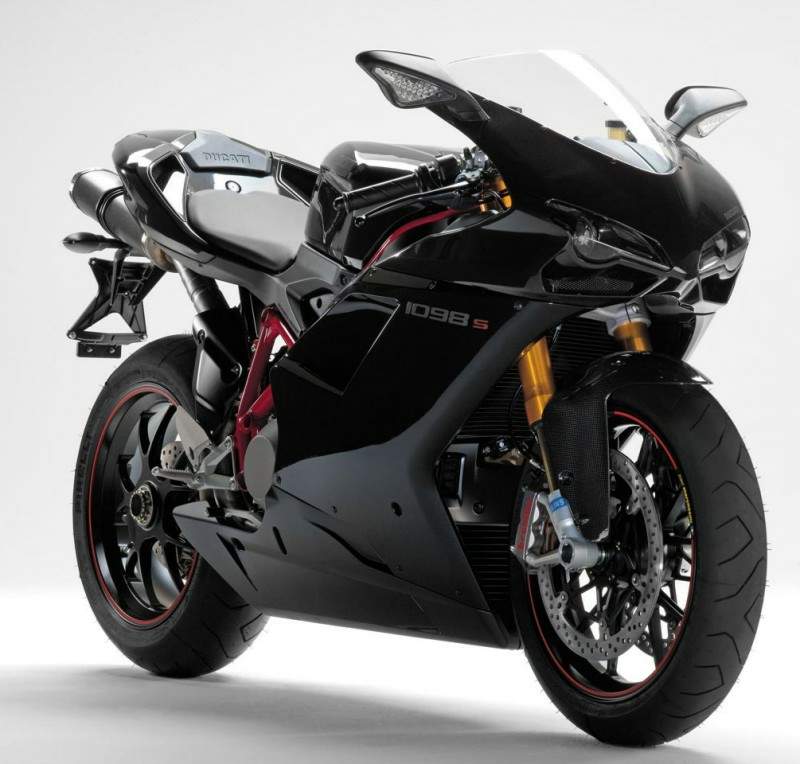

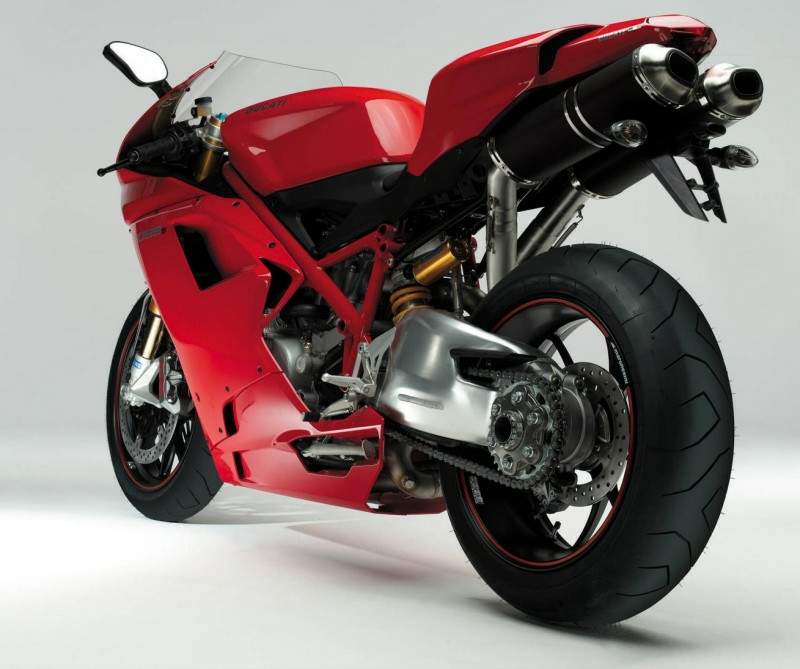

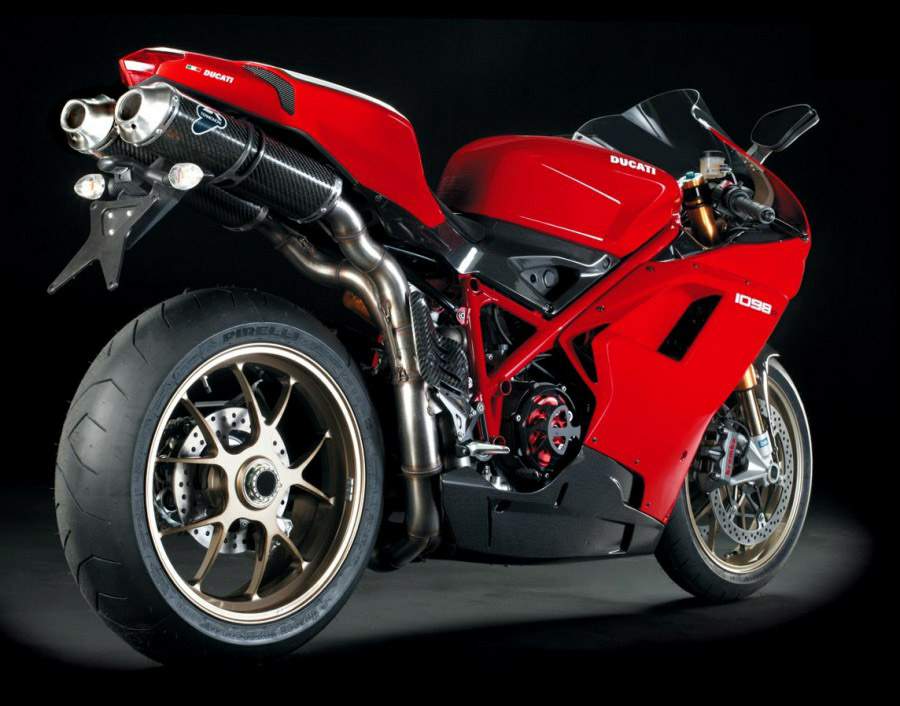

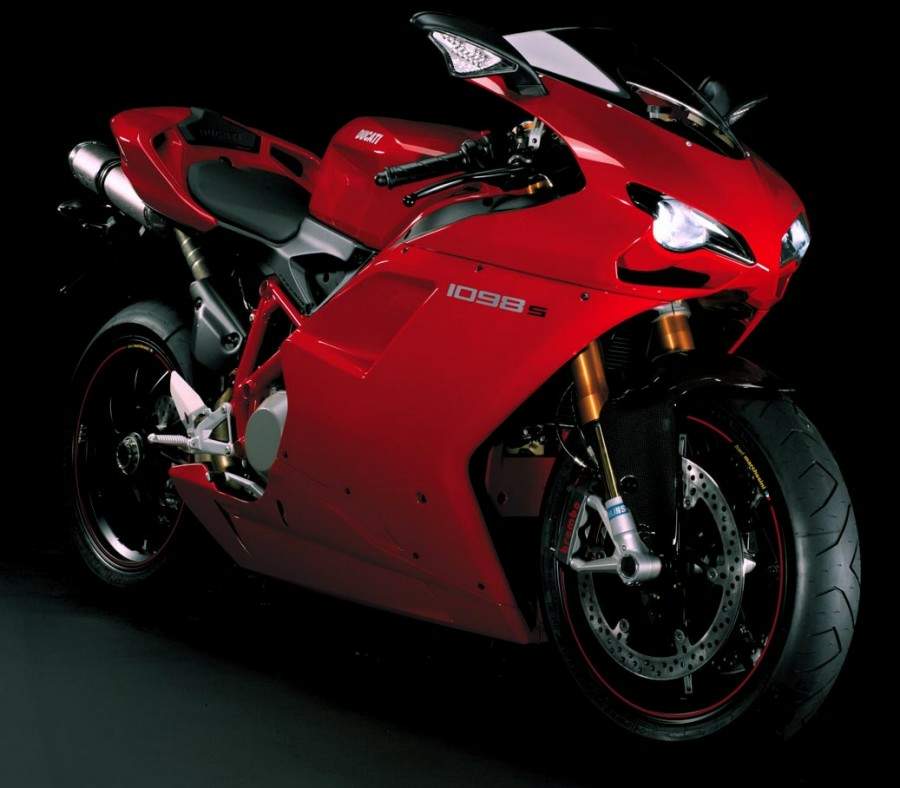

Ducati 1098 S is produced in 2008. Engine is Four stroke, 90° “L” twin cylinder, DOHC, desmodromic 4 valves per cylinder, displacement 1099 cc / 67.1 cu in , produces power 119.3 kW / 160 hp @ 9750 rpm and 122.4 Nm / 12.5 kgf-m / 90.4 lb-ft @ 8000 rpm. Ducati 1098 S top speed is 273.5 km/h / 169.9 mph. Ducati 1098 S weighs 173 kg / 381 lbs. Ducati 1098 S has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: 1098 S
Years: 2008
Engine: Four stroke, 90° “L” twin cylinder, DOHC, desmodromic 4 valves per cylinder
Capacity: 1099 cc / 67.1 cu in
Bore x Stroke: 104 x 64.7 mm
Cooling System: Liquid cooled
Compression Ratio: 12.5:1
Lubrication: Wet sump
Engine Oil: Synthetic, 20W-50
Induction: Marelli electronic fuel injection, elliptical throttle bodies
Exhaust: Lightweight 2-1-2 system with catalytic converter and lambda probe. Twin stainless steel mufflers
Ignition: Digital CDI
Starting: Electric
Max Power: 119.3 kW / 160 hp @ 9750 rpm
Max Torque: 122.4 Nm / 12.5 kgf-m / 90.4 lb-ft @ 8000 rpm
Transmission: 6 Speed
Final Drive: Chain, front sprocket 15; rear sprocket 38
Primary Drive: Straight cut gears, Ratio 1.84:1
Gear Ratios: 1st 37/15, 2nd 30/17, 3rd 28/20, 4th 26/22, 5th 24/23, 6th 23/24
Frame: Tubular steel Trellis frame in ALS 450
Front Suspension: Öhlins 43mm fully adjustable upside-down fork with TiN
Front wheel travel: 120 mm / 4.7 in
Rear Suspension: Progressive linkage with fully adjustable Öhlins TTXR monoshock with top-out spring. Aluminium single-sided swingarm.
Rear Wheel Travel: 127 mm / 5.1 in
Front Brakes: 2 x 330mm Discs, 4 piston calipers
Rear Brakes: Single 245mm disc, 2 piston caliper
Front Tyre: 120/70 ZR17
Rear Tyre: 190/55 ZR17
Rake: 24.3° - 24.5°
Steering angle: 28.5° - 28.5°
Dimensions: Length 2100 mm / 82.6 in Height 1100 mm / 43.3 in
Wheelbase: 1430 mm / 56.3 in
Seat Height: 840 mm / 32.2 in
Dry Weight: 173 kg / 381 lbs
Fuel Capacity: 15.5 L / 4.1 US gal / 3.4 Imp gal
Standing 0- 100 km/h: 3.1 sec
Standing 0- 140 km/h: 5.1 sec
Standing 0- 200 km/h: 8.1 sec
Standing ¼ Mile: 10.9 sec / 213.2 km/h / 132.5 mph
Standing 1000 m: 20.3 sec / 250.0 km/h / 155 mph
Top Speed: 273.5 km/h / 169.9 mph
