Technical specifications
|
| Model: |

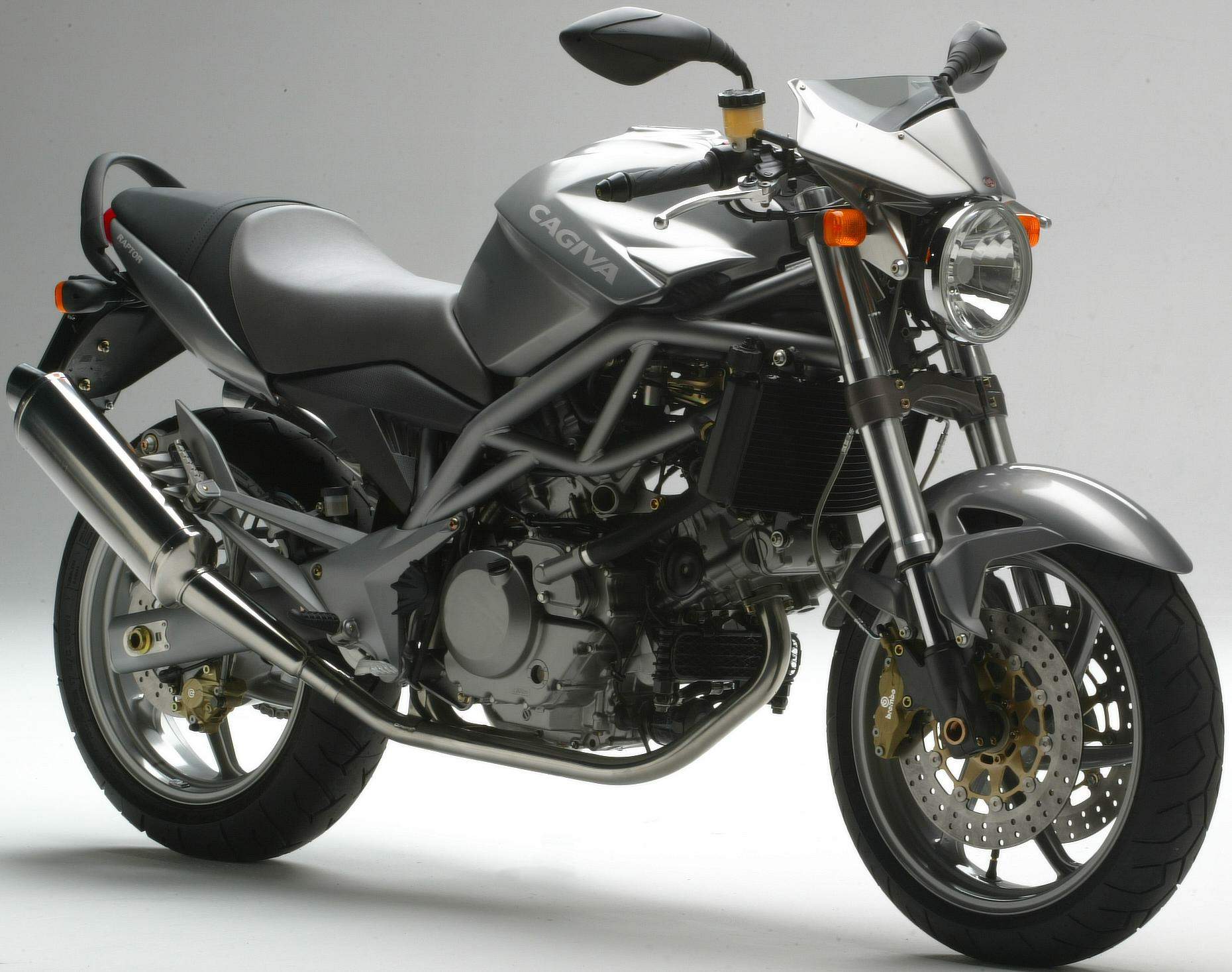

Raptor 650ie |
| Years: |
2005- |
|
Engine:
|
Four stroke, 90°-V-twin, DOHC, 4 valves per cylinder.
|
|
Capacity:
|
645 cc / 39.3 cu-in
|
|
Bore x Stroke:
|
81 x 62.6 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
11.5:1
|
|
Induction:
|
Fuel injection
|
|
Ignition:
|
Digital
|
|
Starting:
|
Electric
|
|
Max Power:
|
70 hp / 51 kW @ 9000 rpm
|
|
Max Torque:
|
63.5 Nm / 46.8 lb-ft @ 7400 rpm
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain
|
|
Frame:
|
High strength steel tubular frame
|
|
Front Suspension:
|
43mm Upside down forks
|
|
Front Wheel Travel:
|
120 mm / 4.7 in
|
|
Rear Suspension:
|
Monoshock
|
|
Rear Wheel Travel:
|
138 mm / 5.4 in
|
|
Front Brakes:
|
2x 298mm discs 4 piston calipers
|
|
Rear Brakes:
|
Single 220mm disc 2 piston caliper
|
|
Front Tyre:
|
120/70 ZR17
|
|
Rear Tyre:
|
160/60 ZR17
|
|
Wheelbase:
|
1438 mm / 56.6 in
|
|
Seat Height:
|
775 kg / 30.5 in
|
|
Ground Clearance:
|
165 mm / 6.5 in
|
|
Dry Weight:
|
180 kg / 180.0 kg / 396.8 lbs
|
|
Fuel Capacity:
|
19 Litres / 5.0 US gal
|
|
Consumption Average:
|
21.5 km/lit
|
|
Standing ¼ Mile:
|
11.9 sec
|
|
Top Speed:
|
207 km/h
|
