Cagiva Elefant 900ie Lucky Explorer (1990-91) technical specifications

Cagiva Elefant 900ie Lucky Explorer technical specifications

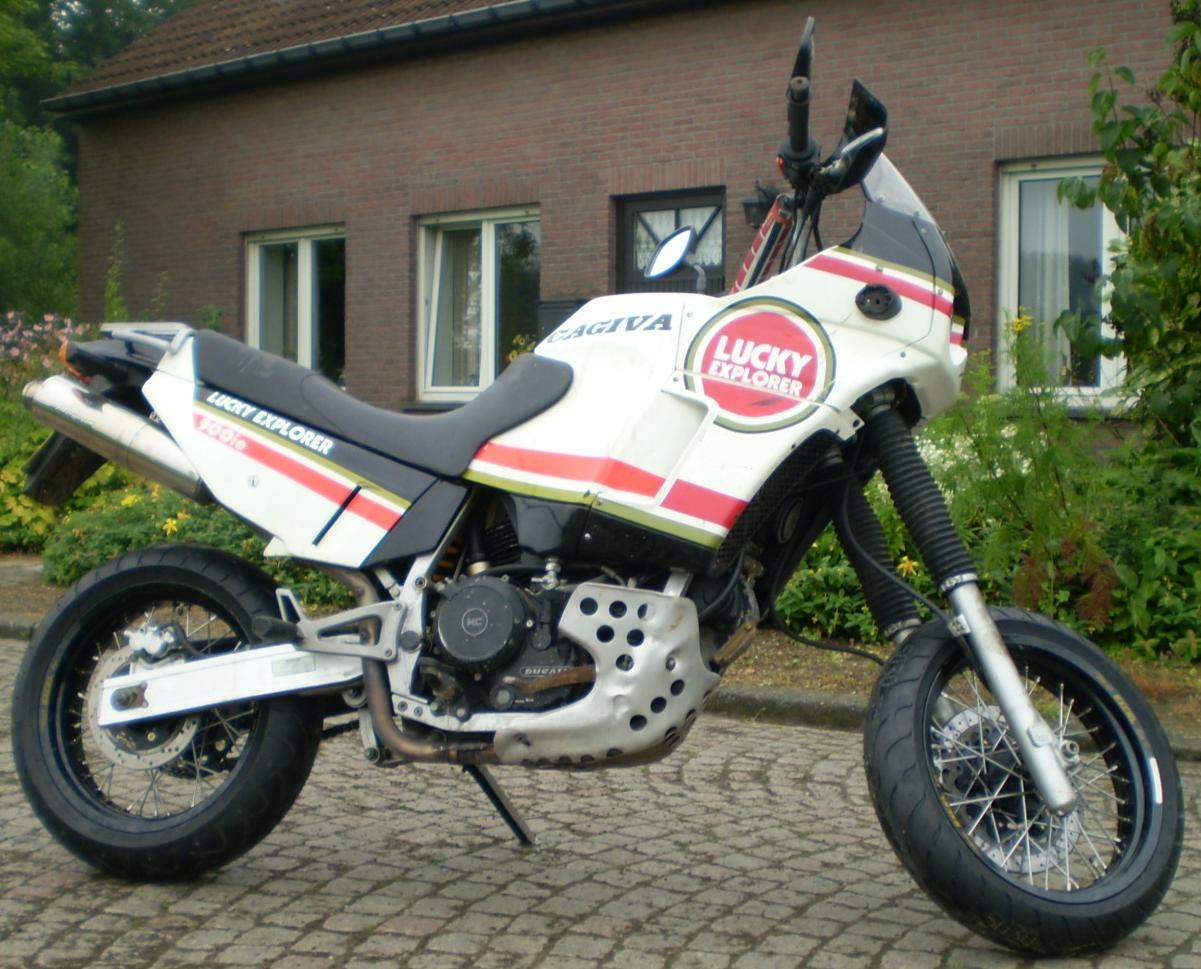

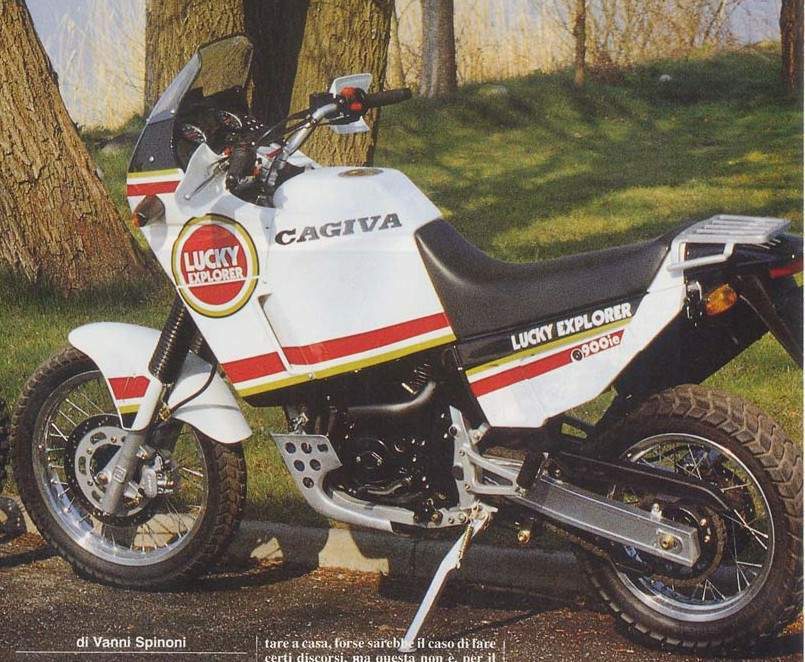

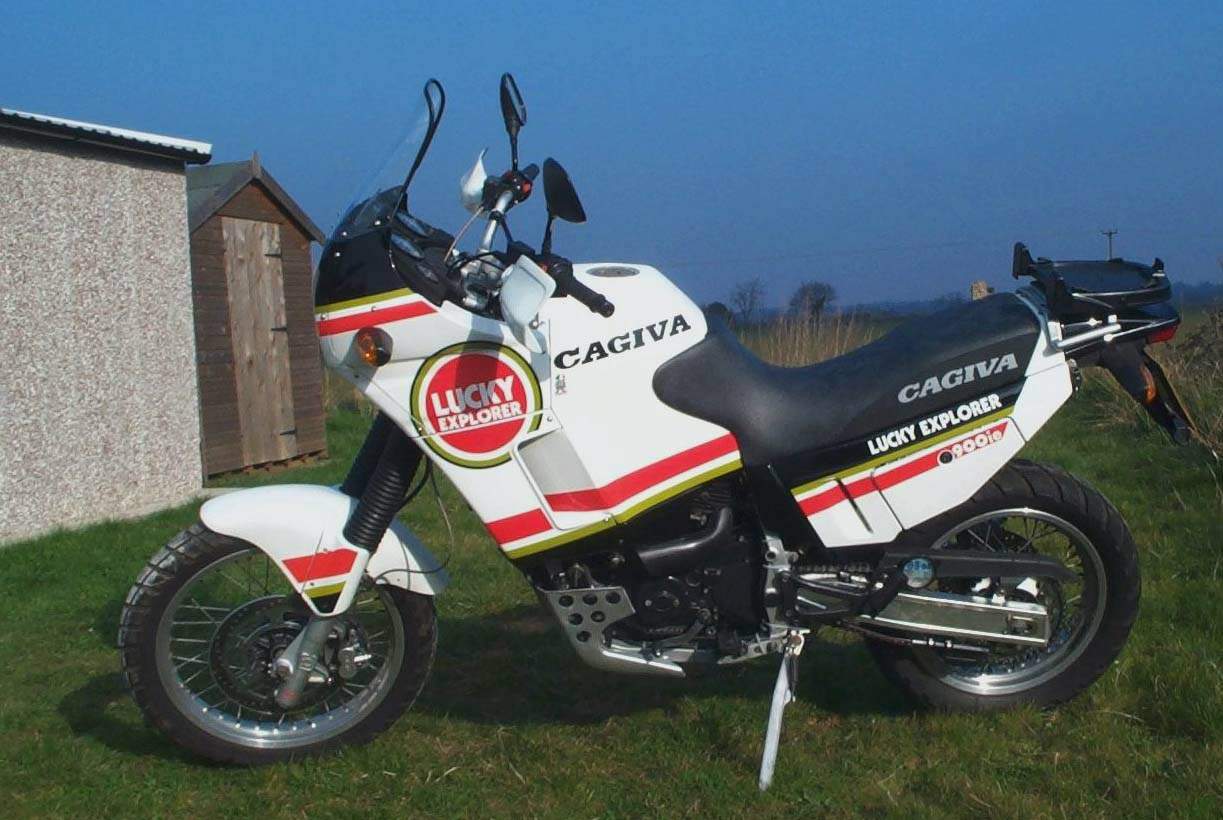

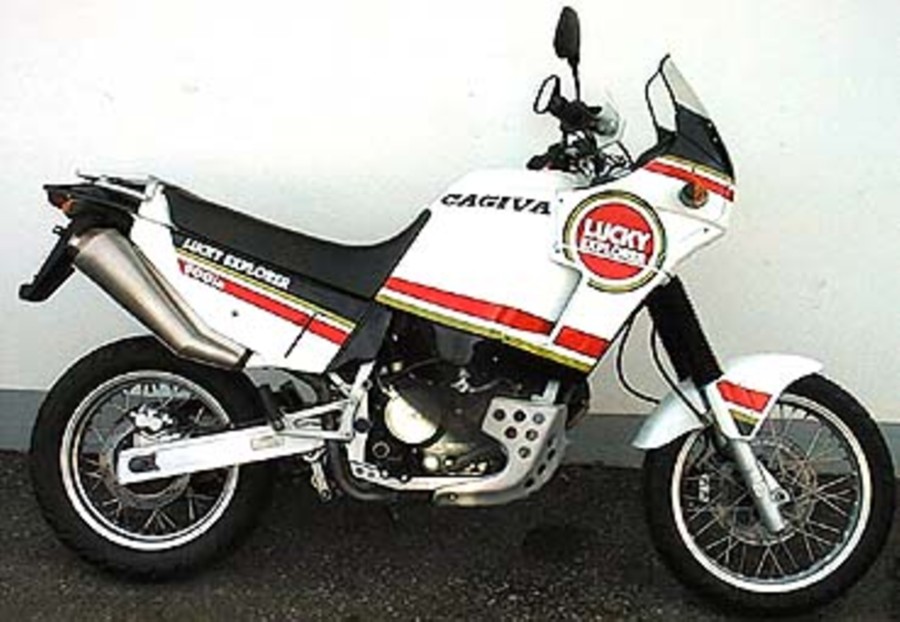

Cagiva Elefant 900ie Lucky Explorer is produced in 1990-91. Engine is Four stroke, 90° “L” twin cylinder, SOHC, desmodromic 2 valve per cylinder, displacement 904 cc / 55.1 cu-in , produces power 68 hp / 49.6 kW @ 8000 rpm and 78 Nm / 57.5 lb-ft @ 5250 rpm. Cagiva Elefant 900ie Lucky Explorer top speed is 190.2 km/h / 118 mph. Cagiva Elefant 900ie Lucky Explorer weighs 189 kg / 416.6 lbs. Cagiva Elefant 900ie Lucky Explorer has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: Elefant 900ie Lucky Explorer
Years: 1990-91
Engine: Four stroke, 90° “L” twin cylinder, SOHC, desmodromic 2 valve per cylinder
Capacity: 904 cc / 55.1 cu-in
Bore x Stroke: 92 x 68 mm
Cooling System: Air cooled
Compression Ratio: 9.2:1
Induction: Weber L.A.W fuel injection
Ignition: Marelli electronic inductive discharge
Starting: Electric
Max Power: 68 hp / 49.6 kW @ 8000 rpm
Max Power Rear Tyre: 63.0 hp @ 7900 rpm
Max Torque: 78 Nm / 57.5 lb-ft @ 5250 rpm
Clutch: Dry Multi-disc
Transmission: 5 Speed
Final Drive: Chain
Frame: Double steel tubular cradle
Front Suspension: 42.7mm Marzocchi clamped stanchion telescopic forks non adjustable
Rear Suspension: Öhlins Rising rate box, monoshock adjustable for preload
Front Brakes: Single 296mm disc
Rear Brakes: Single 240mm disc 4 piston caliper
Front Tyre: 100/90-19
Rear Tyre: 140/80-17
Dimensions: Length 2295 / 90.3 in Width 860 mm / 33.8 in Height 970 mm / 38.1 in
Wheelbase: 1570 mm / 61.8 in
Seat Height: 900 mm / 35.4 in
Ground Clearance: 260 mm / 10.2 in
Dry Weight: 189 kg / 416.6 lbs
Wet Weight: 208 kg / 458.5 lbs
Fuel Capacity: 24 Litres / 6.3 US gal
Consumption average: 17.5 km/lit
Braking 60 - 0 / 100 - 0: 14.0 m / 40.6 m
Standing ¼ Mile: 12.8 sec / 160.9 km/h
Top Speed: 190.2 km/h / 118 mph
Road Test: Motosprint Adventure Group Test 1990
Manual: 1990 900ie Work Shop Manual / 1991 900ie GT Work Shop Manual / EFI information
