Cagiva Elefant 650 (1985-86) technical specifications

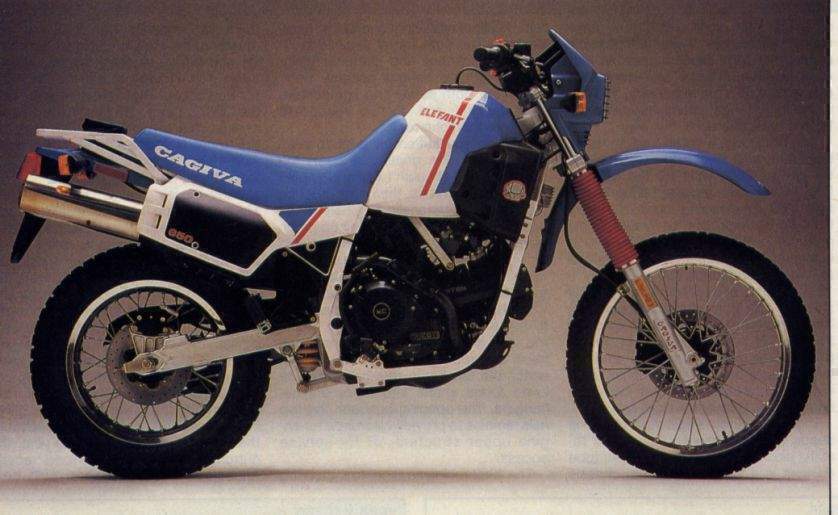

Cagiva Elefant 650 is produced in 1985-86. Engine is Four stroke, 90° “L”twin cylinder, SOHC, desmodromic 2 valve per cylinder., displacement 649 cc / 39.6 cu-in , produces power 54 hp / 40 kW @ 8400 rpm and 54 Nm / 39.8 lb-ft @ 6200 rpm. Cagiva Elefant 650 top speed is 179 km/h. Cagiva Elefant 650 weighs 191 kg / 421 lbs. Cagiva Elefant 650 has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Elefant 650 |
| Years: | 1985-86 |
| Engine: | Four stroke, 90° “L”twin cylinder, SOHC, desmodromic 2 valve per cylinder. |
| Capacity: | 649 cc / 39.6 cu-in |
| Bore x Stroke: | 82 x 61 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 10.0:1 |
| Induction: | 2x 36mm Dell'Orto carburetors |
| Ignition: | Inductive magnetically triggered |
| Starting: | Electric |
| Max Power: | 54 hp / 40 kW @ 8400 rpm |
| Max Torque: | 54 Nm / 39.8 lb-ft @ 6200 rpm |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Front Suspension: | Air adjustable forks 42mm tubes |
| Front Wheel Travel: | 220 mm / 8.6 in |
| Rear Suspension: | Single shock absorber. adjustable for spring preload |
| Front Brakes: | Single 260mm disc 4 piston caliper |
| Rear Brakes: | Single 240mm disc 2 piston caliper |
| Front Tyre: | 90/90-21 |
| Rear Tyre: | 130/90-17 |
| Wheelbase: | 1520 mm / 59.8 in |
| Seat Height: | 905 mm / 35.6 in |
| Dry Weight: | 191 kg / 421 lbs |
| Wet Weight: | 208 kg / 458.6 lbs |
| Fuel Capacity: | 17.5 Litres / 4.6 US gal |
| Consumption Average: | 38 mpg |
| Braking 60 - 0 / 100 - 0: | - / 41.5 m |
| Standing ¼ Mile: | 13.6 sec 152.8 km/h |
| Top Speed: | 179 km/h |
