Cagiva Elefant 350 (1985-86) technical specifications

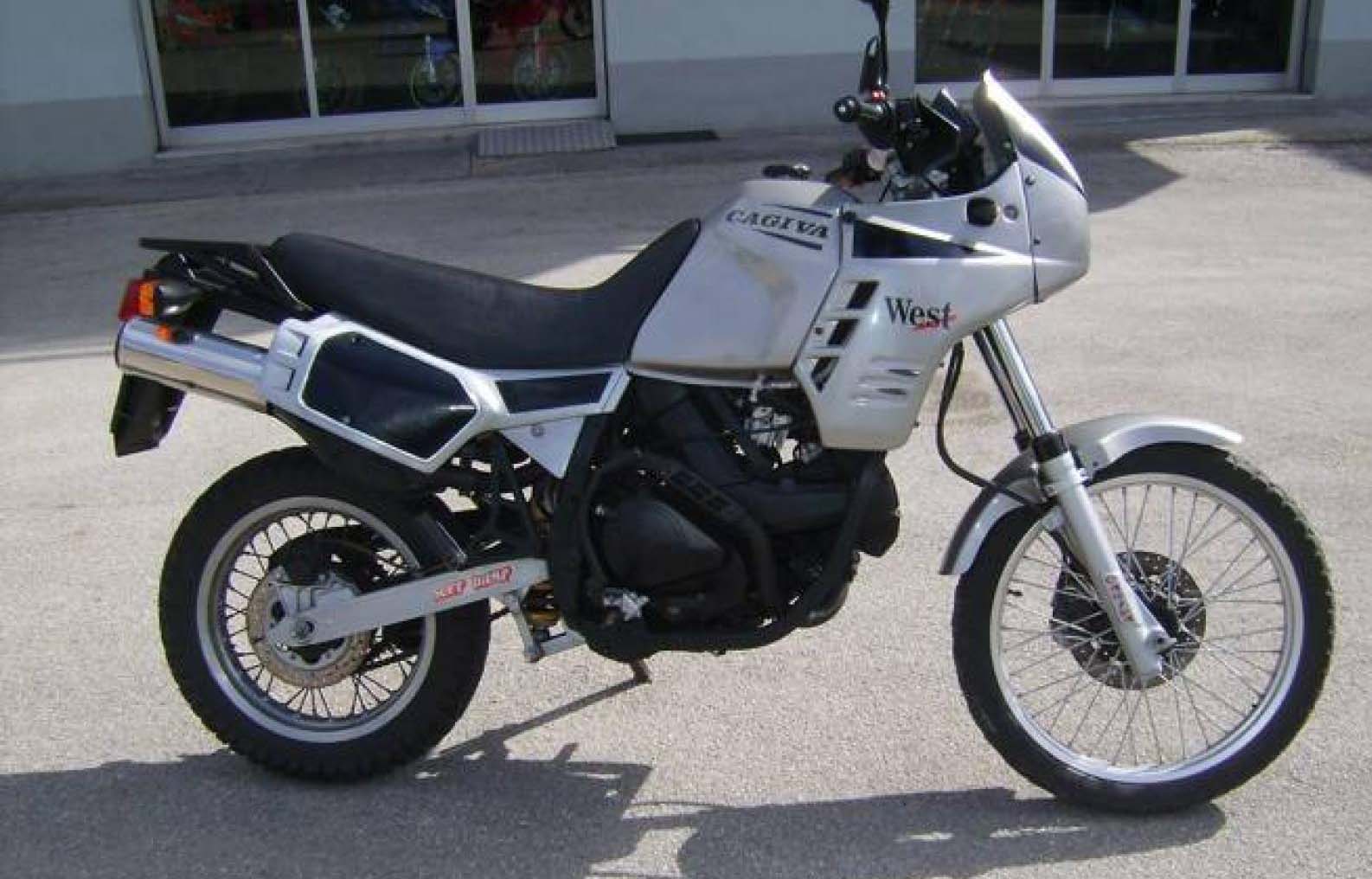

Cagiva Elefant 350 is produced in 1985-86. Engine is Four stroke, 90° “L”twin cylinder, SOHC, desmodromic 2 valve per cylinder., displacement 349 cc / 21.2 cu-in , produces power 34.5 hp / 25.4 kW @ 8000 rpm (rear tyre 30.6 hp @ 8800 rpm) and 30 Nm / 22.1 lb-ft @ 8000 rpm. Cagiva Elefant 350 top speed is 145.1 km/h. Cagiva Elefant 350 weighs 190 kg / 418.8 lbs. Cagiva Elefant 350 has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Elefant 350 |
| Years: | 1985-86 |
| Engine: | Four stroke, 90° “L”twin cylinder, SOHC, desmodromic 2 valve per cylinder. |
| Capacity: | 349 cc / 21.2 cu-in |
| Bore x Stroke: | 66 x 51 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 10.3:1 |
| Induction: | 2x Dell'Orto carburetors |
| Ignition: | Electronic |
| Starting: | Electric & kick |
| Max Power: | 34.5 hp / 25.4 kW @ 8000 rpm (rear tyre 30.6 hp @ 8800 rpm) |
| Max Torque: | 30 Nm / 22.1 lb-ft @ 8000 rpm |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Front Suspension: | Telescopic forks |
| Rear Suspension: | Alloy swing arm single shock |
| Front Brakes: | Single disc |
| Rear Brakes: | Single disc |
| Front Tyre: | 3.00-21 |
| Rear Tyre: | 4.60-17 |
| Wheelbase: | 1520 mm / 59.8 in |
| Seat Height: | 905 mm / 35.6 in |
| Dry Weight: | 190 kg / 418.8 lbs |
| Fuel Capacity: | 18 Litres / 4.7 US gal |
| Consumption Average: | 18 km/lit |
| Braking 60 - 0 / 100 - 0: | 15.4 m / 44.9 m |
| Standing ¼ Mile: | 15.5 sec / 126.3 km/h |
| Top Speed: | 145.1 km/h |
