Cagiva Canyon 500 (1998-01) technical specifications

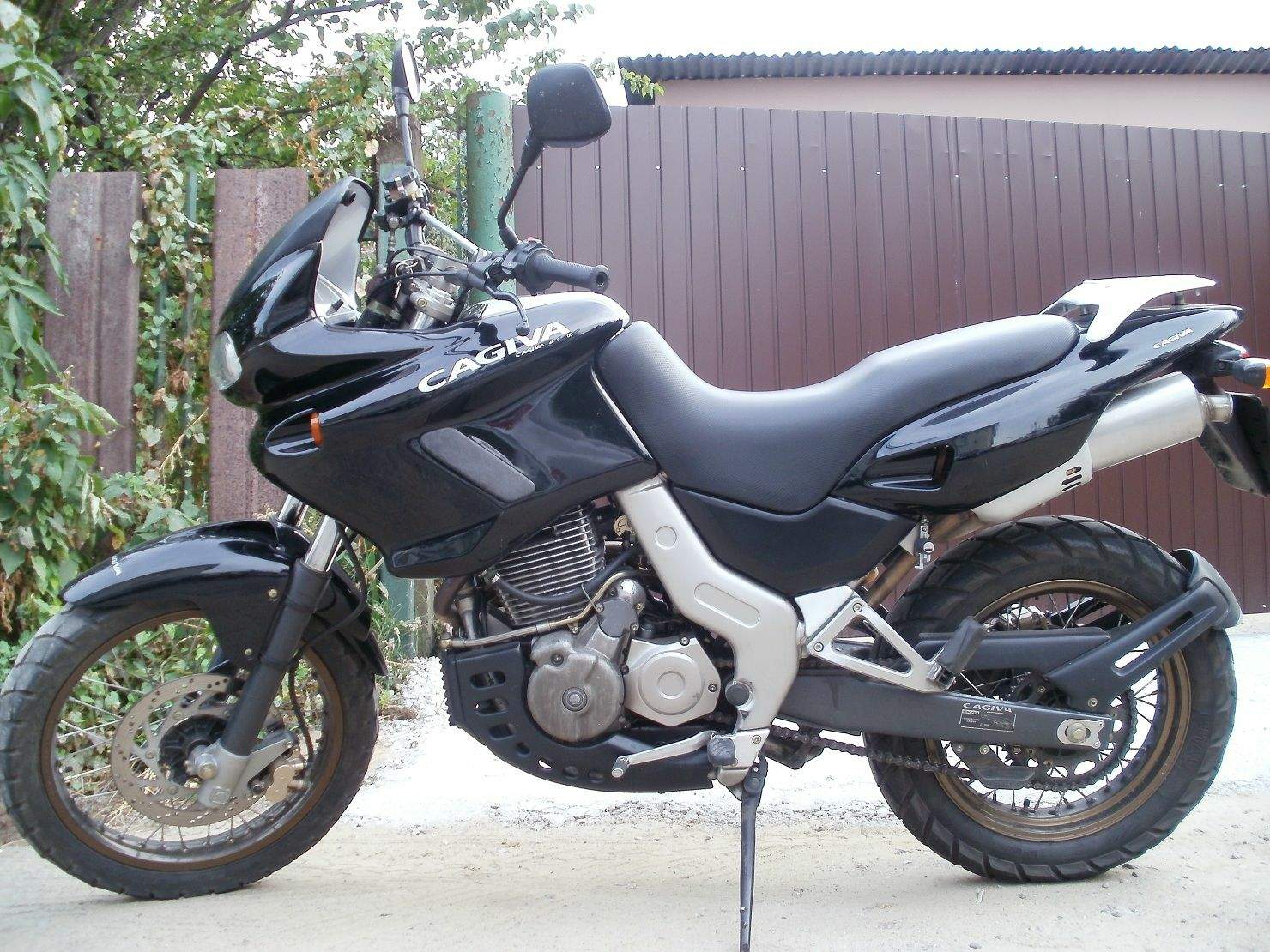

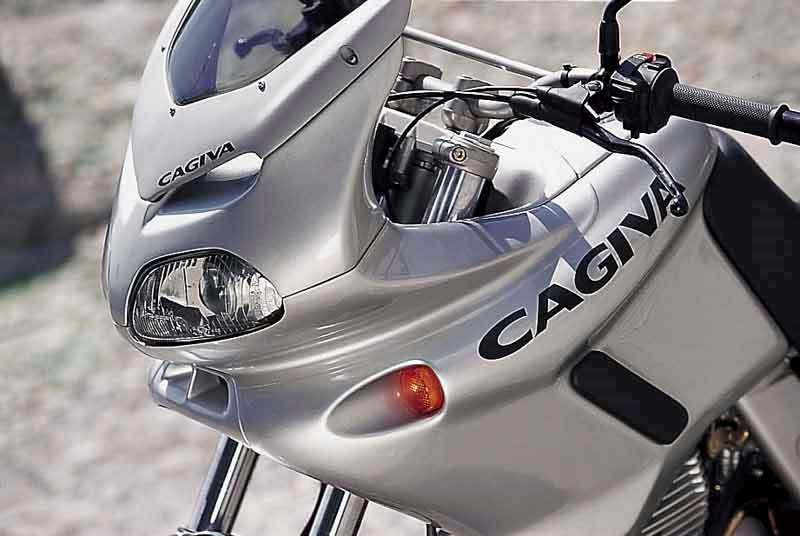

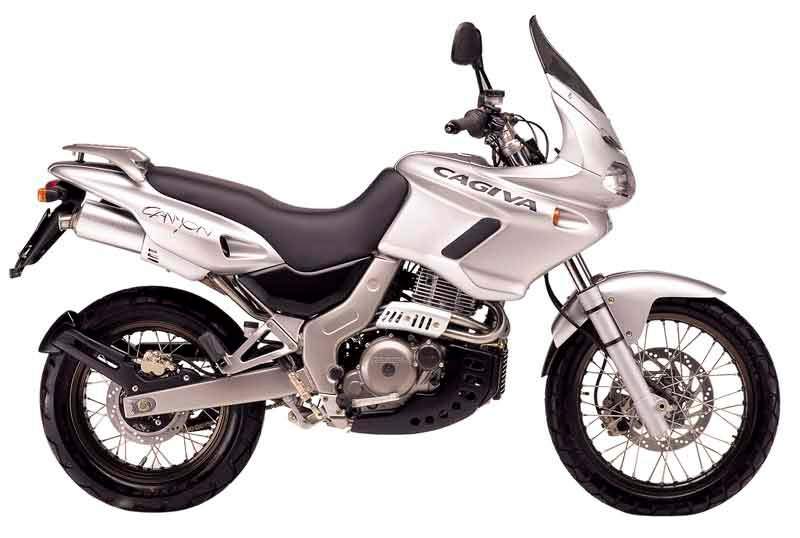

Cagiva Canyon 500 is produced in 1998-01. Engine is Four stroke, single cylinder, SOHC, 4 valves, displacement 498 cc / 30.3 cu-in , produces power 34 hp / 24.8 kW @ 6500 rpm and 39 Nm / 28.8 lb-ft @ 5200 rpm. Cagiva Canyon 500 weighs 165 kg / 363.8 lbs. Cagiva Canyon 500 has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Canyon 500 |
| Years: | 1998-01 |
| Engine: | Four stroke, single cylinder, SOHC, 4 valves |
| Capacity: | 498 cc / 30.3 cu-in |
| Bore x Stroke: | 92.8 x 73.6 mm |
| Cooling System: | Oil/air cooled |
| Compression Ratio: | |
| Induction: | Carburetor |
| Ignition: | CDI |
| Starting: | Electric |
| Max Power: | 34 hp / 24.8 kW @ 6500 rpm |
| Max Torque: | 39 Nm / 28.8 lb-ft @ 5200 rpm |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Front Suspension: | Telescopic forks |
| Front Wheel Travel: | 170 mm / 6.7 in |
| Rear Suspension: | Single shock |
| Rear Wheel Travel: | 170 mm / 6.7 in |
| Front Brakes: | Single 296mm disc 4 piston caliper |
| Rear Brakes: | Single 240mm disc 2 piston caliper |
| Front Tyre: | 100/90-19 |
| Rear Tyre: | 140/80-17 |
| Wheelbase: | 1463 mm / 57.6 in |
| Seat Height: | 795 mm / 31.3 in |
| Dry Weight: | 165 kg / 363.8 lbs |
| Fuel Capacity: | 20 Litres / 5.2 US gal |
