BMW S 1000XR (2024) technical specifications

BMW S 1000XR technical specifications

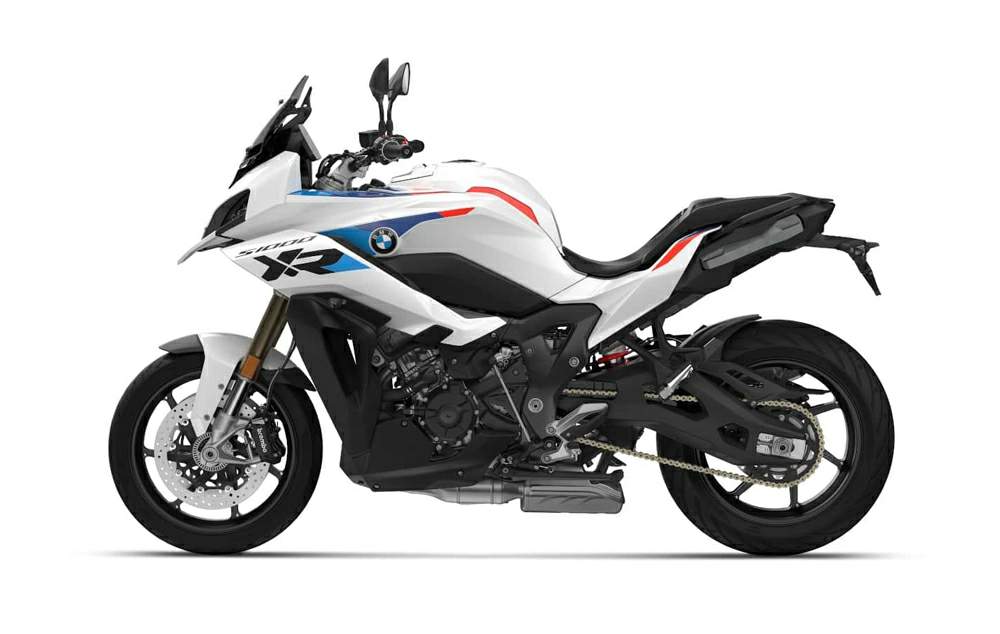

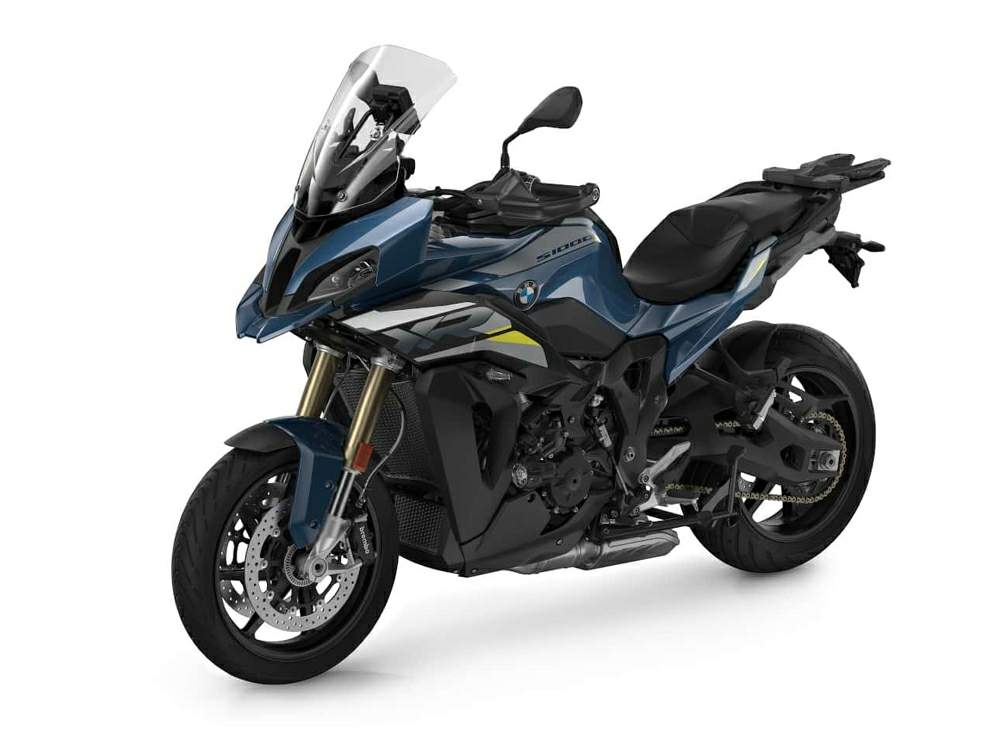

BMW S 1000XR is produced in 2024. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, displacement 999 cc / 60.9 cu-in , produces power 126.8 kW / 170 hp @ 11000 rpm and 112 Nm / 83 lb-ft @ 11100 rpm. BMW S 1000XR wet weight is 227 kg / 498 lbs. BMW S 1000XR has 7 photos.

Technical specifications

+ Add to 'Compare list'
Model: S 1000XR
Years: 2024

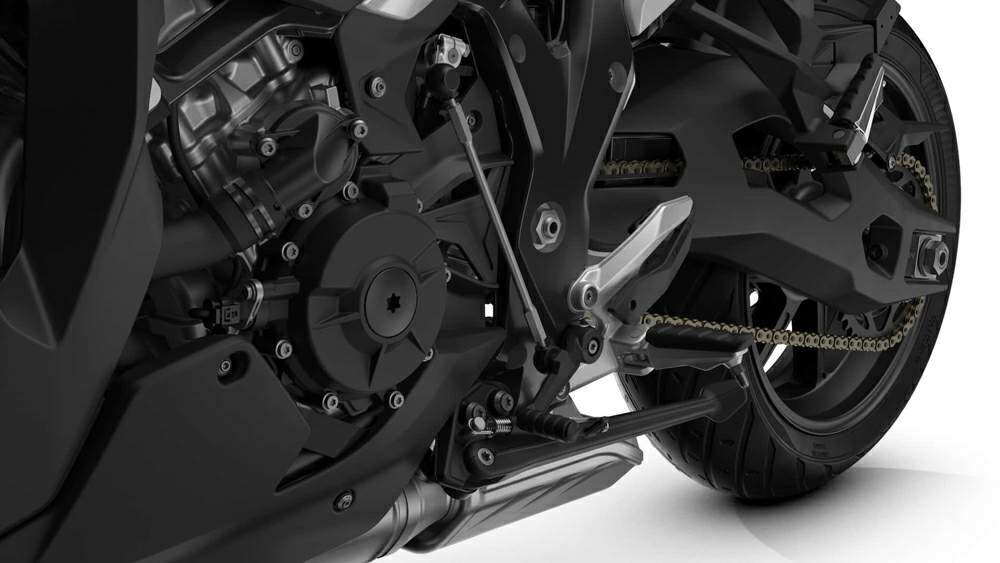

Engine: Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Capacity: 999 cc / 60.9 cu-in
Bore x Stroke: 80 x 49.7 mm
Cooling System: Liquid/oil cooled
Compression Ratio: 12.5:1
Lubrication: Wet sump
Mixture Control: Electronic intake pipe injection / digital engine management system: BMS-O with throttle-by-wire
Engine Management: Electronic intake pipe injection
Emission Control: Regulated three-way catalytic converter - EURO5
Starting: Electric
Max Power: 126.8 kW / 170 hp @ 11000 rpm
Max Torque: 112 Nm / 83 lb-ft @ 11100 rpm
Clutch: Multiplate clutch in oil bath, slipper clutch, self-reinforcing
Transmission: Constant-mesh 6-speed gearbox integrated in the transmission housing
Final Drive: Endless X-ring chain, jerk damping in the rear hub
Primary Ratio: 1.652
Gear Ratio: 1st 2.647 2nd 2.091 3rd 1.727 4th. 1.476 5th 1.304 6th. 1.167
Transmission Ratio: 2.647
Frame: Bridge-type frame, cast aluminum, load-bearing engine
Front Suspension: 45mm Upside-down telescopic fork electronic self-adjusting rebound/compression damping (Dynamic ESA)
Front Wheel Travel: 137 mm / 5.4 in
Rear Suspension: Aluminium double-sided swing-arm, central spring strut, electronic preload adjuster, electronic self-adjusting rebound/compression damping (Dynamic ESA)
Rear Wheel Travel: 137 mm / 5.4 in
Front Brakes: 2x 320mm floating discs, radial four-piston fixed calipers
Rear Brakes: Single 265mm disc brake, twin-piston floating caliper
ABS: BMW Motorrad Race ABS, partially integral
Traction Control: BMW Motorrad DTC
Wheels: Cast aluminum wheels
Front Rim: 3.50 x 17
Rear Rim: 6.00 x 17
Front Tyre: 120/70 ZR 17
Rear Tyre: 190/55 ZR 17
Castor: 116 mm / 4.6 in
Steering Head Angle: 64.8?
Dimensions: Length 2154 mm / 84.8 in Width 851 mm / 33.5 in Height 1460 mm / 57.5 in
Wheelbase: 1539 mm / 60.6 in
Seat Height: 850 mm / 33.5 in - 790 mm / 31.1 with optional lowered suspension
Wet Weight: 227 kg / 498 lbs
Fuel Capacity: 20 Litres / 5.2 US gal
