BMW S 1000XR (2021) technical specifications

BMW S 1000XR technical specifications

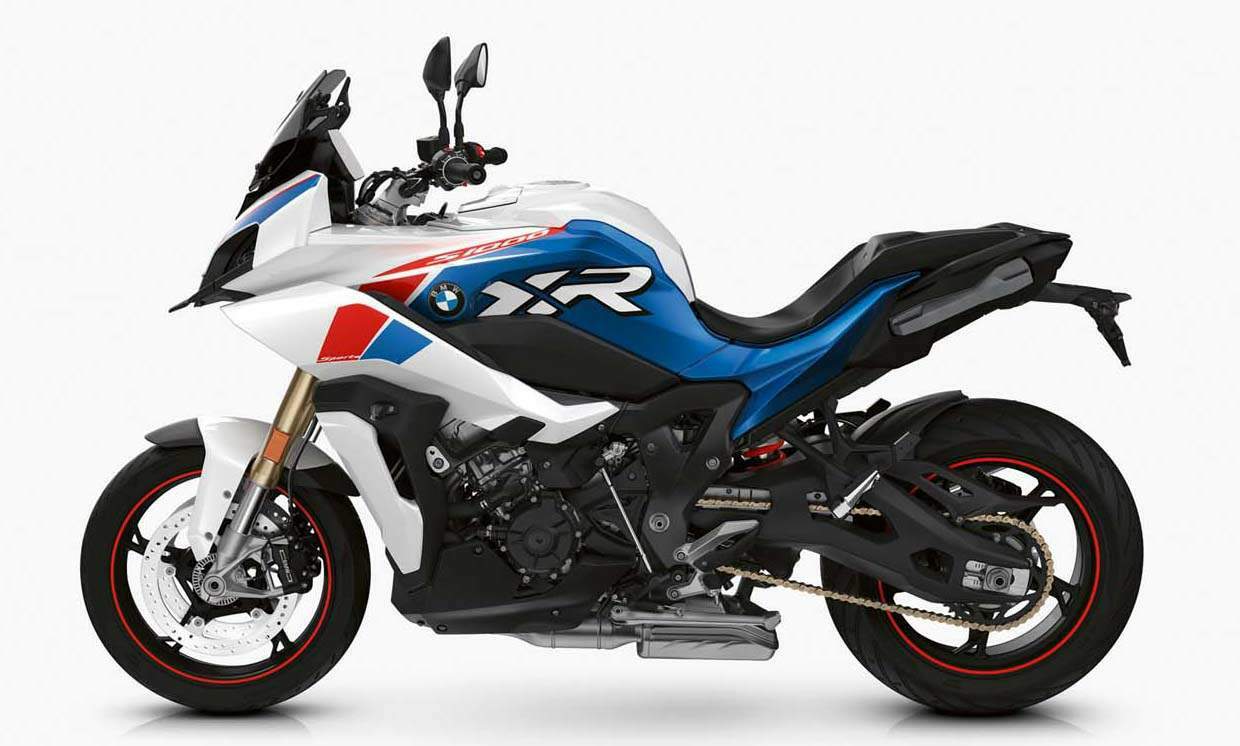

BMW S 1000XR is produced in 2021. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, Intake/outlet mm 33.5/27.2, displacement 999 cc / 60.9 cu-in , produces power 121 kW / 165 hp @ 11000 rpm and 114 Nm / 84 lb-ft @ 9250 rpm. BMW S 1000XR wet weight is 226 kg / 498 lbs. BMW S 1000XR has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: S 1000XR
Years: 2021
Engine: Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, Intake/outlet mm 33.5/27.2
Capacity: 999 cc / 60.9 cu-in
Bore x Stroke: 80 x 49.7 mm
Cooling System: Liquid/oil cooled
Compression Ratio: 12.5:1
Lubrication: Wet sump
Mixture Control: Electronic injection, throttle valve 48 mm
Engine Management: Electronic intake pipe injection
Emission Control: Regulated three-way catalytic converter - EURO5
Starting: Electric
Max Power: 121 kW / 165 hp @ 11000 rpm
Max Torque: 114 Nm / 84 lb-ft @ 9250 rpm
Clutch: Multiplate clutch in oil bath, slipper clutch, self-reinforcing
Transmission: Six-speed synchromesh gearbox with spur gears
Final Drive: Chain drive, 17/45
Primary Ratio: 1.652
Gear Ratio: 1st 2.647 2nd 2.091 3rd 1.727 4th. 1.476 5th 1.304 lth. 1.167
Transmission Ratio: 2.647
Frame: Aluminum composite bridge frame, partially self-supporting engine
Front Suspension: 45mm Upside-down telescopic fork electronic self-adjusting rebound/compression damping (Dynamic ESA)
Front Wheel Travel: 150 mm / 5.9 in
Rear Suspension: Aluminium double-sided swing-arm, central spring strut, electronic preload adjuster, electronic self-adjusting rebound/compression damping (Dynamic ESA)
Rear Wheel Travel: 150 mm / 5.9 in
Front Brakes: 2x 320mm floating discs, radial four-piston fixed calipers
Rear Brakes: Single 265mm disc brake, twin-piston floating caliper
ABS: BMW Motorrad Race ABS, partially integral
Traction Control: BMW Motorrad DTC
Wheels: Cast aluminum wheels
Front Rim: 3.50 x 17
Rear Rim: 6.00 x 17
Front Tyre: 120/70 ZR 17
Rear Tyre: 190/55 ZR 17
Castor: 116 mm / 4.6 in
Steering Head Angle: 65.1°
Dimensions: Length 2333 mm / 91.8 in Width 917 mm / 36.1 Height 411 mm / 55.5 in
Wheelbase: 1522 mm / 59.9 in
Seat Height: 840 mm / 33.0 in - 790 mm / 31.1 with optional lowered suspension
Wet Weight: 226 kg / 498 lbs
Fuel Capacity: 20 Litres / 5.2 US gal
