BMW S 1000RR (2012) technical specifications

BMW S 1000RR technical specifications

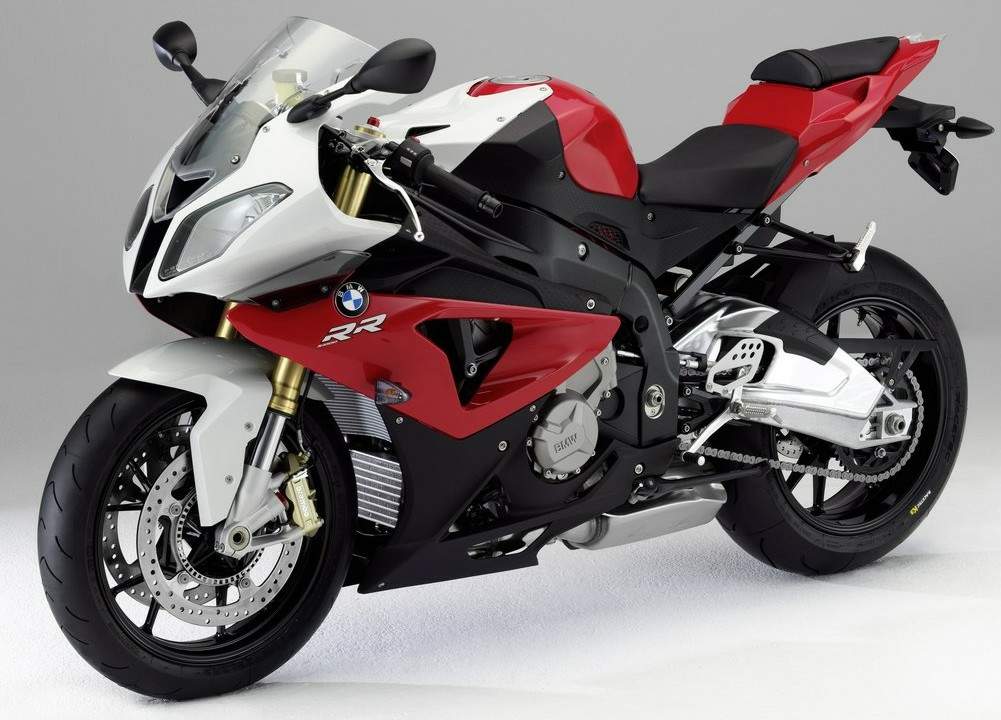

BMW S 1000RR is produced in 2012. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, displacement 999 cc / 60.9 cu-in , produces power 143.9 kW / 193 hp @ 13000 rpm and 112 Nm / 11.4 kgf-m / 82.6 lb-ft @ 9750 rpm. BMW S 1000RR weighs 178 kg / 398 lbs. BMW S 1000RR has 12 photos.

Technical specifications

+ Add to 'Compare list'
Model: S 1000RR
Years: 2012
Engine: Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Capacity: 999 cc / 60.9 cu-in
Bore x Stroke: 80 x 49.7 mm
Intake / Exhaust Ø: 33.5 mm / 27.2 mm
Cooling System: Liquid cooled.
Compression Ratio: 13.0:1
Exhaust: Stainless steel. 4-in-2-in-1. Closed-loop 3-way catalytic converter, emission standard EU-3.
Lubrication: Wet sump
Induction: Electronic fuel injection, digital motor electronics BMS-KP
Throttle Valve Diameter: 48 mm
Emission control: Two regulated three-way catalytic converters, EU-3
Starting: Electric
Battery: 14 V / 10 Ah, maintenance-free
Max Power: 143.9 kW / 193 hp @ 13000 rpm
Max Torque: 112 Nm / 11.4 kgf-m / 82.6 lb-ft @ 9750 rpm
Clutch: Multiple disc antihopping clutch in oil bath, mechanically operated
Transmission: 6 Speed
Final Drive: Chain 17/45
Gear Ratio: 1st 2.6471 / 2nd 2.091 / 3rd 1.727 / 4th 1.500 / 5th 1.360 / 6th 1.261:1
Frame: Bridge-type aluminium frame, load-bearing engine
Front Suspension: 43mm Telescopic fork
Front Wheel Travel: 125 mm / 4.9 in
Rear Suspension: Cast aluminium double-strut swingarm with eccentric adjustment for rear axle, central spring strut, spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable.
Rear Wheel Travel: 125 mm / 4.9 in
Front Brakes: 2x 320mm discs 4 piston calipers
Rear Brakes: Single 220mm disc 1 piston calipers
ABS: BMW Motorrad Race ABS, disengageable, 4 modes to select: Rain, Sport, Race, Slick (optional equipment)
Wheels: Cast alumiium
Front Rim: 3.50 x 17
Rear Rim: 6.00 x 17
Front Tyre: 120/70 ZR17
Rear Tyre: 180/55 ZR17
Castor: 98.5 mm
Steering Head Angle: 66.1°
Dimensions: Length 2056 mm / 80.9 in. Width 826 mm / 32.5 in (incl. mirrors) Height 1138 mm / 44.8 in. (excl. mirrors)
Wheelbase: 1422.7 mm / 56.0 in
Seat Height: 820 mm / 33.3 in
Dry Weight: 178 kg / 398 lbs
Fuel Capacity: 17.5 Litres / 4.6 US gal
