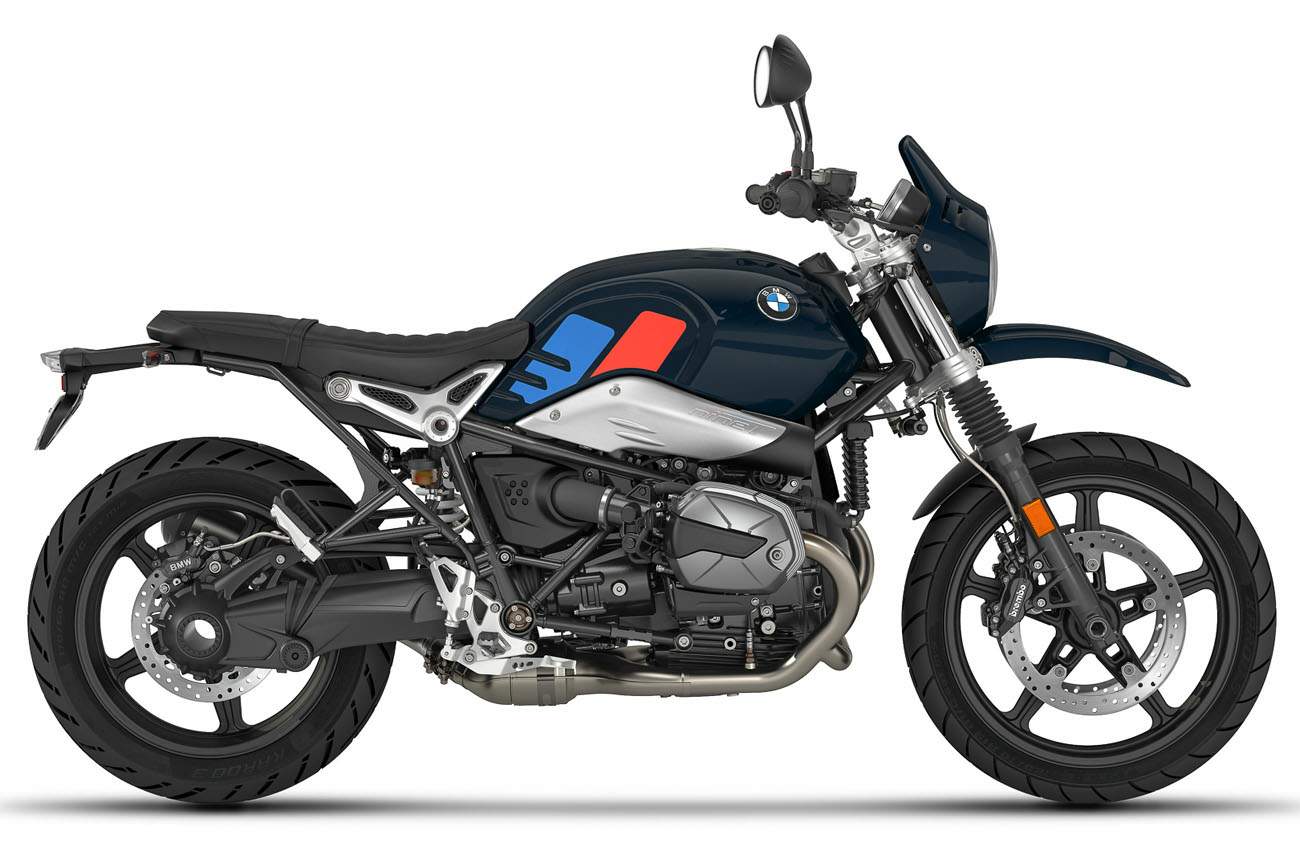

BMW R nineT Urban G/S (2022) technical specifications

BMW R nineT Urban G/S is produced in 2022. Engine is Four stroke, two cylinder horizontally opposed Boxer, two camshafts and four radially aligned valves per cylinder, central counterbalancer shaft., displacement 1170 cc / 71.4 cub in , produces power 80 kW /109 hp @ 7250 rpm and 116 Nm / 11.8 kgf-m / 85.6 lb-ft @ 6000 rpm. BMW R nineT Urban G/S wet weight is 223 kg / 491.6 lbs. BMW R nineT Urban G/S has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	R nineT Urban G/S
Years:	2022
Engine:	Four stroke, two cylinder horizontally opposed Boxer, two camshafts and four radially aligned valves per cylinder, central counterbalancer shaft.
Capacity:	1170 cc / 71.4 cub in
Bore x Stroke:	101 x 73 mm
Cooling System:	Air/Oil cooled
Compression Ratio:	12.0:1
Lubrication:	Wet sump
Induction:	Electronic intake pipe injection / digital engine management with overrun cutoff, twin-spark ignition
Emission Control:	Controlled 3-way catalytic converter, exhaust emission standards EU-5
Fuel:	Unleaded super(premium), octane number 95-98 (RON) (rated output at 98 RON)
Alternator:	Three-phase alternator with 720 Watt nominal power
Battery:	12 V / 12 Ah, maintenance-free
Starting:	Electric
Max Power:	80 kW /109 hp @ 7250 rpm
Max Torque:	116 Nm / 11.8 kgf-m / 85.6 lb-ft @ 6000 rpm
Clutch:	Single dry plate clutch, hydraulically operated
Transmission:	6-speed, Claw-shifted transmission with helical-cut splines
Final Drive:	Shaft
Frame:	Four-part frame concept with front frame and three-part rear frame, load-bearing engine-gearbox unit, rear-seat frame removeable for one-up riding
Front Suspension:	46 mm upside-down telescopic forks
Front Wheel Travel:	125 mm / 4.9 in
Rear Suspension:	Cast aluminium single swinging arm with BMW Motorrad Paralever; central spring strut, spring preload fully adjustable by hook wrench, adjustable rebound-stage damping
Rear Wheel Travel:	140 mm / 5.5 in
Front Brakes:	2 x 320 mm discs, 4 piston calipers
Rear Brakes:	Single 265 mm disc, 2 piston floating caliper
ABS:	BMW Motorrad ABS Pro
Wheels:	Cast (optional spoked)
Front Rim:	3.00 x 19
Rear Rim:	4.50 x 17
Front Tyre:	120/70 - R19
Rear Tyre:	170/60 - R17
Castor:	110.6 mm / 4.35 in
Steering Head Angle:	61.5 °
Dimensions:	Length 2175 mm / 85.6 in Width 865 mm / 34.0 in Height 1330 mm / 52.3 in
Wheelbase:	1527 mm / 60/1 in
Seat Height:	850 mm / 33.4 in
Wet Weight:	223 kg / 491.6 lbs
Fuel Capacity:	17 Litres / 4.5 US gal
