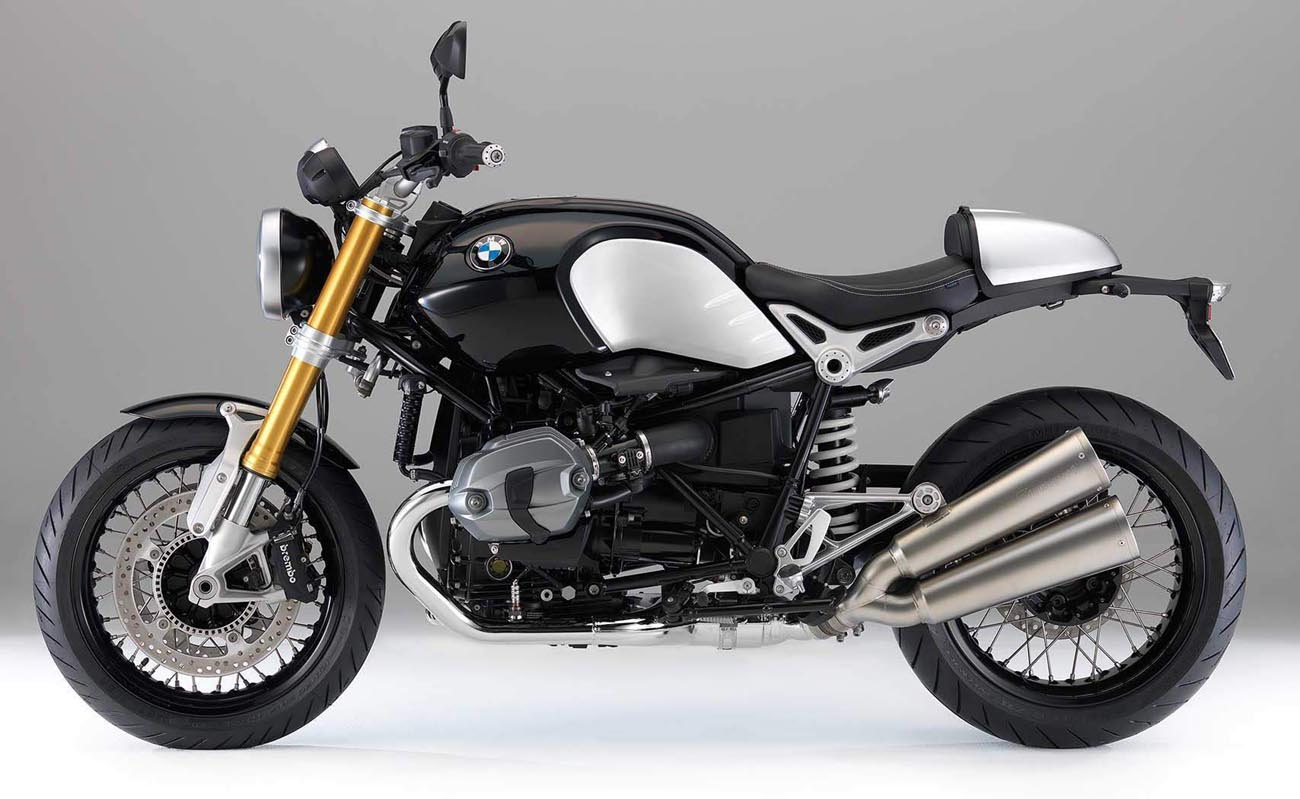

BMW R nineT (2016-17) technical specifications

BMW R nineT technical specifications

BMW R nineT is produced in 2016-17. Engine is Four stroke, two cylinder horizontally opposed Boxer, two camshafts and four radially aligned valves per cylinder, central counterbalancer shaft., displacement 1170 cc / 71.4 cub in. , produces power 81 kW / 110 hp @ 7550 rpm and 119 Nm / 12.1 kgf-m / 88 lb-ft @ 6000 rpm. BMW R nineT weighs 208 kg / 459 lbs. BMW R nineT has 6 photos.

Technical specifications

+ Add to 'Compare list'
Model: R nineT
Years: 2016-17
Engine: Four stroke, two cylinder horizontally opposed Boxer, two camshafts and four radially aligned valves per cylinder, central counterbalancer shaft.
Capacity: 1170 cc / 71.4 cub in.
Bore x Stroke: 101 x 73 mm
Cooling System: Air/Oil cooled
Compression Ratio: 12.0:1
Lubrication: Wet sump
Induction: Electronic intake pipe injection
Emission Control: Closed-loop 3-way catalytic converter, emission standard EU-3
Alternator: Three-phase alternator 600 W
Battery: 12 V / 14 Ah, maintenance-free
Starting: Electric
Max Power: 81 kW / 110 hp @ 7550 rpm
Max Torque: 119 Nm / 12.1 kgf-m / 88 lb-ft @ 6000 rpm
Clutch: Single dry plate clutch, hydraulically operated
Transmission: Constant mesh 6-speed
Final Drive: Shaft
Gear Ratios: Ist 2.375 / 2nd 1.696 / 3rd 1.296 / 4th 1.065 / 5th 0.939 / 6th 0.848:1
Frame: Four-section frame consisting of one front and three rear sections, load-bearing engine-gearbox unit, removable pillion frame for single ride use
Front Suspension: Upside-Down telescopic fork with 46 mm diameter
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Cast aluminium single-sided swing arm with BMW Motorrad Paralever; central spring strut, spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable
Rear Wheel Travel: 120 mm / 4.7 in
Front Brakes: 2 x ∅320mm floating brake discs, 4 piston radial calipers
Rear Brakes: Single ∅265mm disc, 2 piston floating caliper
ABS: BMW Motorrad ABS
Rim Front: 3.50 x 17
Rim Rear: 5.50 x 17
Front Tyre: 120/70 - ZR17
Rear Tyre: 180/55 - ZR17
Castor: 102.5 mm / 4.04 in
Steering Head Angle: 64.5 °
Wheelbase: 1470 mm / 58.1 in
Dimensions: Length 2220 mm / 87.4 in Width 890 mm / 35.0 in (incl. mirrors) Height 1265 mm / 59.8 in (excl. mirrors)
Seat Height: 784.8 mm / 30.9 in Standard
Inner Leg Curve: 1760.2 mm / 69.3 in Standard
GVWR: 430 kg / 948 lbs
Dry Weight: 208 kg / 459 lbs
Wet Weight: 222 kg / 489 lb
Fuel Capacity: 18 Litres / 4.8 US gal
Reserve: 3 Litres / 0.8 gal
