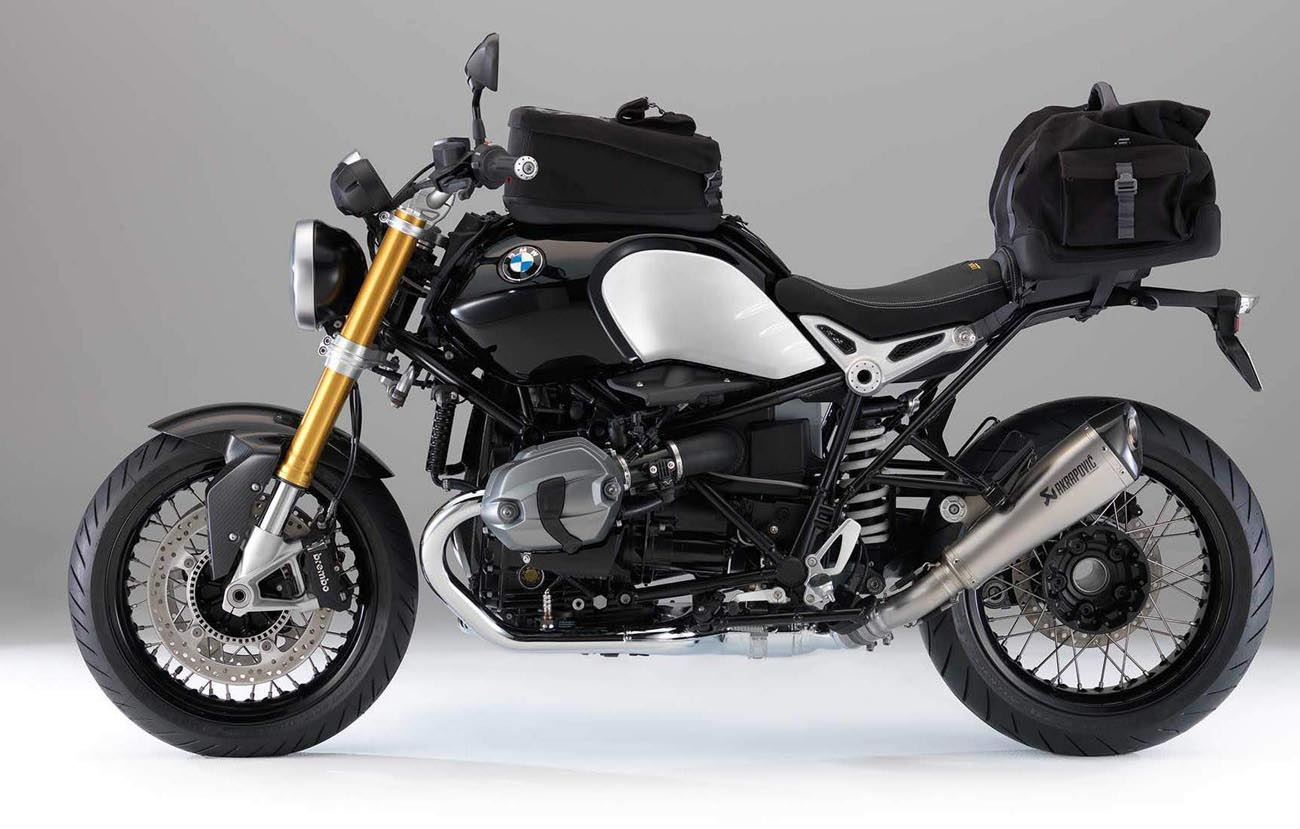

BMW R NineT (2015 - 16) technical specifications

BMW R NineT is produced in 2015 - 16. Engine is Four stroke, two cylinder horizontally opposed Boxer, two camshafts and four radially aligned valves per cylinder, central counterbalancer shaft., displacement 1170 cc / 71.4 cub in. , produces power 81 kW / 110 hp @ 7550 rpm and 119 Nm / 12.1 kgf-m / 88 lb-ft @ 6000 rpm. BMW R NineT weighs 208 kg / 459 lbs. BMW R NineT has 8 photos.

Technical specifications

+ Add to 'Compare list'

Model:	R NineT
Years:	2015 - 16
Engine:	Four stroke, two cylinder horizontally opposed Boxer, two camshafts and four radially aligned valves per cylinder, central counterbalancer shaft.
Capacity:	1170 cc / 71.4 cub in.
Bore x Stroke:	101 x 73 mm
Cooling System:	Air/Oil cooled
Compression Ratio:	12.0:1
Lubrication:	Wet sump
Induction:	Electronic intake pipe injection
Emission Control:	Closed-loop 3-way catalytic converter, emission standard EU-3
Alternator:	Three-phase alternator 600 W
Battery:	12 V / 14 Ah, maintenance-free
Starting:	Electric
Max Power:	81 kW / 110 hp @ 7550 rpm
Max Torque:	119 Nm / 12.1 kgf-m / 88 lb-ft @ 6000 rpm
Clutch:	Single dry plate clutch, hydraulically operated
Transmission :	Constant mesh 6-speed
Final Drive:	Shaft
Gear Ratios:	Ist 2.375 / 2nd 1.696 / 3rd 1.296 / 4th 1.065 / 5th 0.939 / 6th 0.848:1
Frame:	Four-section frame consisting of one front and three rear sections, load-bearing engine-gearbox unit, removable pillion frame for single ride use
Front Suspension:	Upside-Down telescopic fork with 46 mm diameter
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	Cast aluminium single-sided swing arm with BMW Motorrad Paralever; central spring strut, spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable
Rear Wheel Travel:	120 mm / 4.7 in
Front Brakes:	2 x ∅320mm floating brake discs, 4 piston radial calipers
Rear Brakes:	Single ∅265mm disc, 2 piston floating caliper
ABS:	BMW Motorrad ABS
Rim Front:	3.50 x 17
Rim Rear:	5.50 x 17
Front Tyre:	120/70 - ZR17
Rear Tyre:	180/55 - ZR17
Castor:	102.5 mm / 4.04 in
Steering Head Angle:	64.5 °
Wheelbase:	1470 mm / 58.1 in
Dimensions:	Length 2220 mm / 87.4 in Width 890 mm / 35.0 in (incl. mirrors) Height 1265 mm / 59.8 in (excl. mirrors)
Seat Height:	784.8 mm / 30.9 in Standard
Inner Leg Curve:	1760.2 mm / 69.3 in Standard
GVWR:	430 kg / 948 lbs
Dry Weight:	208 kg / 459 lbs
Wet Weight:	222 kg / 489 lb
Fuel Capacity :	18 Litres / 4.8 US gal
Reserve:	3 Litres / 0.8 gal
